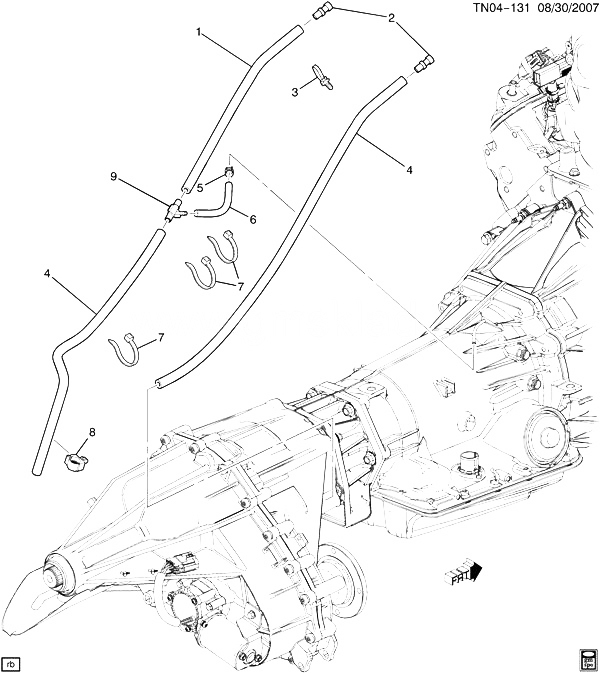

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25900506 |
HOSE, TRANS VENT (INCLS 2-9) |
N1 (LH9, JJA) |
2010-2010 |
01 |
| 002 |
25892279 |
VENT, A/TRNS (PART OF 1) (VENT STEM W/CAP) (4.510) (ACDelco #25892279) |
N1 (M30) |
2008-2010 |
02 |
| 003 |
11519726 |
RETAINER, ROSEBUD TYPE, NYL 6/6, AXLE VENT TUBE (PART OF 1) |
|
2008-2010 |
01 |
| 004 |
09438315 |
HOSE, FUEL-OIL EVAP (PART OF 1) |
|
2008-2010 |
01 |
| 005 |
25518880 |
CLAMP, HEX HD, WORM GEAR, .250-.625, .320 WIDE, SS (PART OF 1) (8.948) (ACDelco #25518880) |
|
2008-2010 |
01 |
| 006 |
12387951 |
HOSE, 3/16X25, GM6198 (PART OF 1) |
|
2008-2010 |
01 |
| 007 |
19152842 |
STRAP, TRANS VENT HOSE (PART OF 1) (BLACK) |
N1 (LH9, JJA) |
2010-2010 |
03 |
| 008 |
11519726 |
RETAINER, ROSEBUD TYPE, NYL 6/6, AXLE VENT TUBE (PART OF 1) |
|
2008-2010 |
01 |
| 009 |
24254826 |
CONNECTOR, TRANS VENT HOSE (PART OF 1) (Y-CONN) |
N1 (M30) |
2008-2010 |
01 |
