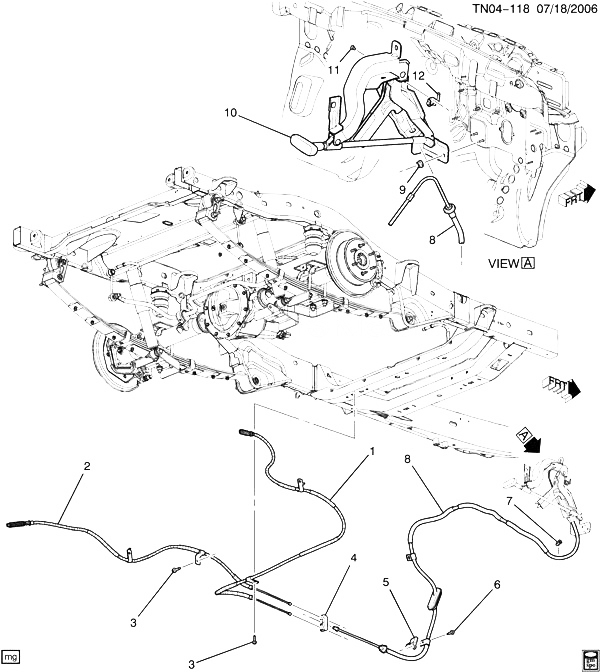

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15869343 |
CABLE, PARK BRK RR (ACDelco #15869343) |
N153 (06) |
2009-2010 |
01 |
| 002 |
15869344 |
CABLE, PARK BRK RR (ACDelco #15869344) |
N153 (06) |
2009-2010 |
01 |
| 003 |
11516424 |
BOLT, HFH, M6X1X25, 14.2 O.D., HDR PT, 9.8, ZE (PARK BRK RR CBL) |
|
2007-2010 |
04 |
| 004 |
15112323 |
EQUALIZER, PARK BRK CBL (PART OF 8) |
N1 |
2007-2010 |
01 |
| 005 |
97249730 |
BRACKET, PARK BRK CBL |
N1 (06) |
2007-2010 |
01 |
| 006 |
11515755 |
BOLT, HEX, M8X1.25X16, 15 THD, 18 O.D., 10.9, 7114M (PARK BRK CBL) (T/W 12345493 REPLCS 25534835) |
|
2007-2010 |
02 |
| 007 |
15879568 |
RETAINER, PARK BRK FRT CBL (PART OF 8) |
N1 (06) (RHD) (EXPORT) |
2007-2010 |
01 |
| 008 |
24301032 |
CABLE, PARK BRK FRT (INCLS 4, 7) (30X48X2715) |
N1 (RHD) (EXPORT) |
2009-2010 |
01 |
| 009 |
11514596 |
NUT, HFH, M8X1.25, 17.9 OD, 738 THK, 13MM HEX, 10, ZF (PARK BRK) (8.915) (ACDelco #11514596) |
|
2007-2010 |
01 |
| 010 |
15828206 |
LEVER, PARK BRK (INCLS 11, 12) (CASHMERE) |
N1 (06) (RHD, 27I) (EXPORT) |
2007-2010 |
01 |
| 010 |
15828207 |
LEVER, PARK BRK (INCLS 11, 12) (EBONY) |
N1 (06) (RHD, 19I) (EXPORT) |
2007-2010 |
01 |
| 011 |
11562439 |
SCREW, PAN HD, M4X.7X10, 10 THD, 7.6 OD, 8.8 STL, ZN-CO, BLACK, T-20 (PART OF 10) |
|
2007-2010 |
01 |
| 012 |
15876154 |
SWITCH, PARK BRK IND (PART OF 10) |
N1 (RHD) (EXPORT) |
2007-2010 |
01 |
