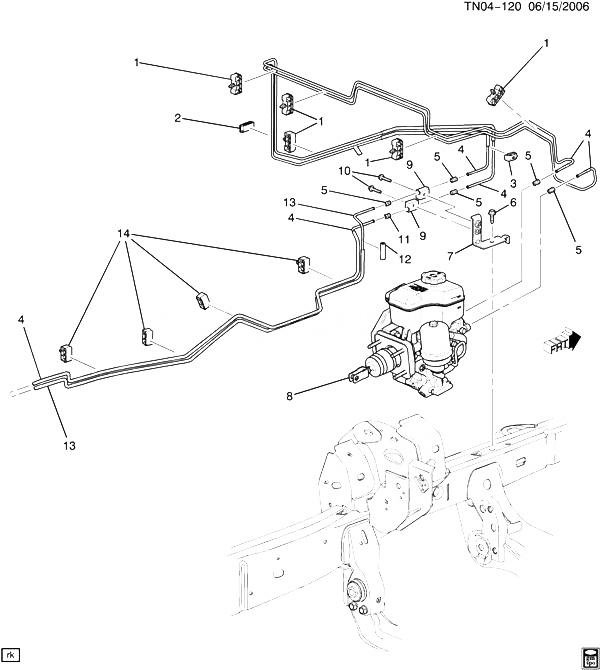

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15163617 |
CLIP, BRK PIPE (BLACK) (HOLDS (3)5.2 DIA LINES, FITS 9.1 HOLE IN 0.8 THK PNL, NYLON) |
N1 |
2007-2010 |
05 |
| 002 |
15103327 |
CLIP, BRK PIPE (HOLDS (3) BRAKE LINES) |
N1 |
2007-2010 |
01 |
| 003 |
22692262 |
CLIP, BRK PIPE (HOLDS (2)3/16 PIPES THAT SNAP IN PLACE) |
N1 |
2007-2010 |
01 |
| 004 |
88983905 |
PIPE, BRK (3/16 X 16) (BULK TUBING) (NYLON COATING) (ACDelco #88983905) |
N1 |
2007-2010 |
AR |
| 005 |
15170399 |
NUT, RR BRK PIPE (TO RR BRK C/OVR PIPE) (M10X1.0X16.3) |
N1 |
2007-2010 |
04 |
| 006 |
11515756 |
BOLT, HFH, M8X1.25X20, 17THD, 18 O.D., 10.9, 7114M (FRT ; RR BRK PIPE FTG BRKT) |
|
2007-2010 |
01 |
| 007 |
15239175 |
BRACKET, FRT ; RR BRK PIPE FTG (INCLS BRKT AND NUTS) |
N1 |
2009-2010 |
01 |
| 008 |
25939759 |
CYLINDER, BRK MAS (W/ P/B BOOS ; CHAS CONT MDL) (SEE GROUP 04.000 BRAKE MASTER CYLINDER FOR DETAILED ILLUSTRATED VIEW) (ACDelco #174-1156) |
N153 (06) |
2008-2010 |
01 |
| 009 |
15123418 |
FITTING, FRT BRK FRT PIPE |
N1 |
2007-2010 |
02 |
| 010 |
11588714 |
BOLT, HFH, M6X1X30, 22.7 THD, 14.2 OD, 8.8, GMW3359, M-PT. (FRT ; RR BRK PIPE FTG BRKT) |
|
2007-2010 |
02 |
| 011 |
15170399 |
NUT, RR BRK PIPE (TO RR BRK C/OVR PIPE) (M10X1.0X16.3) |
N1 |
2007-2010 |
04 |
| 012 |
15806877 |
GROMMET, BRK PIPE |
N1 |
2007-2010 |
02 |
| 013 |
88983905 |
PIPE, BRK (3/16 X 16) (BULK TUBING) (NYLON COATING) (ACDelco #88983905) |
N1 |
2007-2010 |
AR |
| 014 |
15163618 |
CLIP, BRK PIPE (HOLDS (2)5.19 BRK LINES, FIT 9 HOLE IN 3.0 THK PNL, NYLON) |
N1 |
2007-2010 |
04 |
