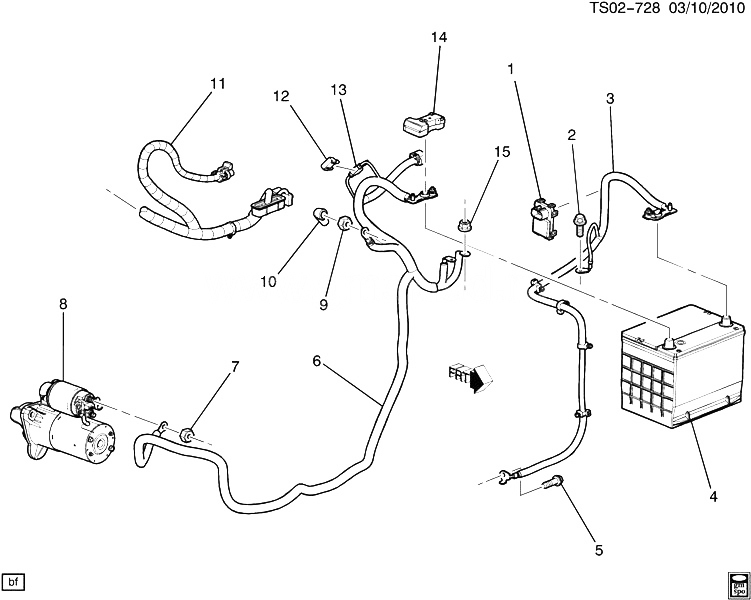

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25826405 |
MODULE, GEN BAT CONT (PART OF 3) |
N1 |
2009-2010 |
01 |
| 002 |
11588337 |
BOLT, HEX W/FL WA, M6X1X20, 9 THD, 17 OD, 6202M, GMW3200, TAP, DOG PT. (BAT NEG CBL) |
|
2009-2010 |
01 |
| 003 |
25926166 |
CABLE, BAT NEG (INCLS 1) (ACDelco #25926166) |
N1 (LH9, JJA) |
2010-2010 |
01 |
| 004 |
|
BATTERY, (SEE GROUP 02.000 BATTERY MOUNTING FOR DETAILED ILLUSTRATED VIEW) (CCA 590) (TOP POST) (232X174X198) (US DEALERS CONTACT ACDELCO WD FOR ORDERING ; PRICING INFO) |
|
2009-2010 |
|
| 005 |
11588564 |
BOLT, HEX W/FL WA, M8X1.25X25, 15.85 THD, 17 OD, 9.8, GMW3200M, MACH, MAT-PT (BAT NEG CBL GND) |
|
2009-2010 |
01 |
| 006 |
19116853 |
CABLE, BAT POS (INCLS 10, 12-14) (PART OF 11) (ACDelco #19116853) |
N1 (LH9, M30) (EXC RHD) |
2010-2010 |
01 |
| 006 |
19117708 |
CABLE, BAT POS (INCLS 10, 12-14) (PART OF 11) (ACDelco #19117708) |
N1 (LH9, M30, RHD) (EXPORT) |
2010-2010 |
01 |
| 007 |
21021808 |
NUT, STRTR SOL CBL (M8X1.25X6, BRASS) |
N1 |
2009-2010 |
01 |
| 008 |
|
STARTER, (SEE GROUP 02.000 STARTER MOTOR FOR DETAILED ILLUSTRATED VIEW) |
|
2009-2010 |
|
| 009 |
11609411 |
NUT, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (BAT POS CBL J/BLK LEAD) |
|
2009-2010 |
01 |
| 010 |
12146809 |
COVER, GEN WIRE TERM (PART OF 6, 11) (BLACK) (TERMINAL BOOT COVER) (2.343) |
N1 |
2009-2010 |
01 |
| 011 |
|
HARNESS, ENG WRG (INCLS 6, 10, 12-14) (SEE GROUP 02.000 WIRING HARNESS/ENGINE FOR DETAILED ILLUSTRATED VIEW) |
|
2009-2010 |
|
| 012 |
12092079 |
FUSE, 10A, MINI, RED (PART OF 6, 11) |
|
2009-2010 |
01 |
| 013 |
19116350 |
HOLDER, WRG HARN FUSE (PART OF 6, 11) (BLACK) (2-WAY FUSEHOLDER) (ACDelco #19116350) |
N1 |
2009-2010 |
01 |
| 014 |
19116717 |
COVER, BAT POS CBL TERM (PART OF 6, 11) |
N1 |
2009-2010 |
01 |
| 015 |
11609411 |
NUT, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (BAT POS CBL J/BLK LEAD) |
|
2009-2010 |
02 |
