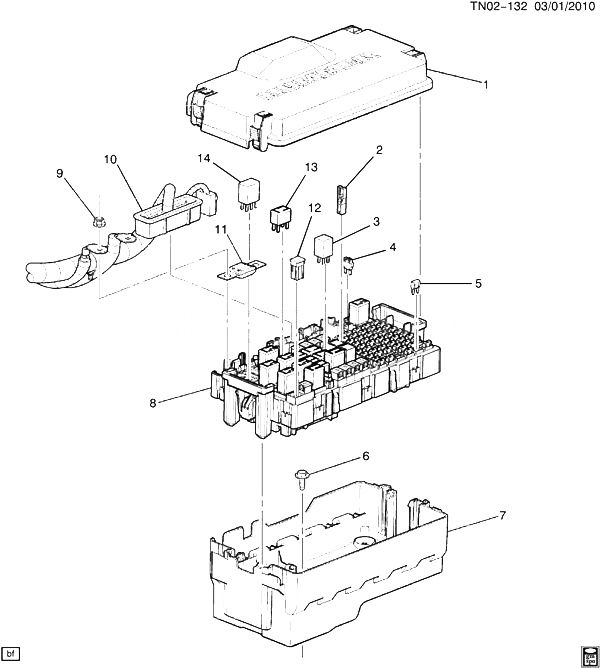

(TN02-132) 2008-2010 N1 BLOCK-UNDERHOOD BEC HUMMER - H3 SUV 2010

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 24301239 COVER, MULTIUSE RLY N153 (06) (BRM) 2010-2010 01
001 25984527 COVER, MULTIUSE RLY N1 (EXC BRM) 2009-2010 01
002 19115022 PULLER, FUSE (PART OF 8) (I/P) N1 2007-2010 01
003 12088594 RELAY, MULTIUSE (1 BOLT HOLE, 5 TERM, SKIRTED) (PART OF 8) (4.720) (ACDelco #12088594) N1 2007-2010 01
003 19116059 RELAY, FOG LP (PART OF 8) (GRAY) (4-TERMINAL) (SPACE SAVER ULTRA 280 MICRO) (2.483) (ACDelco #19116059) N1 2009-2010 01
003 19116059 RELAY, FOG LP (PART OF 8) (GRAY) (4-TERMINAL) (SPACE SAVER ULTRA 280 MICRO) (2.483) (ACDelco #19116059) N1 2009-2010 01
003 19116059 RELAY, HORN (PART OF 8) (GRAY) (4-TERMINAL) (SPACE SAVER ULTRA 280 MICRO) (2.483) (ACDelco #19116059) N1 2009-2010 01
003 19116059 RELAY, MULTIUSE (DLR) (PART OF 8) (GRAY) (4-TERMINAL) (SPACE SAVER ULTRA 280 MICRO) (ACDelco #19116059) N1 2009-2010 01
003 12193606 RELAY, MULTIUSE (STOP) (PART OF 8) (BLUE) (4-TERMINAL) (SPST 280 MINI) (4.720) N1 2009-2010 01
004 12135037 DIODE, ENG WRG HARN FUSE BLK (PART OF 8) (1 AMP) N1 2007-2010 02
005 88909754 FUSE, 15A, MINI, BLUE (PART OF 8) (ACDelco #ATM15-25) 2007-2010 12
005 88909756 FUSE, MINI (25 AMP) (CLEAR) (QTY 25 (PART OF 8) (ACDelco #ATM25-25) 2007-2010 02
005 12092079 FUSE, 10A, MINI, RED (PART OF 8) 2007-2010 30
005 12092075 FUSE, 30A, MINI, GREEN (PART OF 8) (ACDelco #12092075) 2007-2010 02
005 88861352 FUSE, 20A, MINI, YELLOW (PART OF 8) (ACDelco #ATM20) 2007-2010 09
006 11561674 BOLT, HEX W/FL WA, M6X1X20, 12 THD, 24 OD, 9.8, GMW3359, M-PT (FUSE BLK) 2007-2010 03
007 15887759 COVER, MULTIUSE RLY (UNDER) N1 2007-2010 01
008 25783694 BLOCK, FUSE (INCLS 2-5, 11-14) N153 (06) (LLR) (EXC BRM) 2009-2010 01
008 94730533 BLOCK, FUSE (INCLS 2-5, 11-14) N155 (43) (LLR) (EXC BRM) 2009-2010 01
008 25783695 BLOCK, FUSE (INCLS 2-5, 11-14) N153 (06) (LH9) (EXC BRM) 2010-2010 01
008 94730534 BLOCK, FUSE (INCLS 2-5, 11-14) N155 (43) (LH9) (EXC BRM) 2010-2010 01
008 25840606 BLOCK, FUSE (INCLS 2-5, 11-14) N1 (LLR, BRM) (EXPORT) 2008-2010 01
008 24301075 BLOCK, FUSE (INCLS 2-5, 11-14) N1 (LH9, BRM) (EXPORT) 2010-2010 01
009 11609411 NUT, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (BAT POS FUSE BLK CBL) 2007-2010 02
010 HARNESS, ENG WRG (SEE GROUP 02.000 WIRING HARNESS/ENGINE FOR DETAILED ILLUSTRATED VIEW) 2007-2010
011 12177251 FUSE, 125 AMP MEGA FUSE (PART OF 8) (FUSE COLOR, BLACK W/SIZE STAMPED IN WHITE ON CASE) 2007-2010 01
012 15319477 FUSE, 30AMP, PINK, J-CASE, FEMALE, REGULAR (PART OF 8) 2007-2010 07
012 15319478 FUSE, 40AMP, GREEN, J-CASE, FEMALE (PART OF 8) (ACDelco #15319478) 2007-2010 02
012 15319480 FUSE, 60 AMP, YELLOW, J-CASE, FEMALE, REGULAR BLOW (PART OF 8) 2007-2010 01
013 88953222 RELAY, SECD AIR INJN PUMP (PART OF 8) (GRAY) (20AMP) (4 TERMINAL) (LOW-PROFILE MICRO 280) (2.485) (ACDelco #D1755A) N1 (LLR) 2009-2010 01
013 88953222 RELAY, HDLP (PART OF 8) (GRAY) (20AMP) (4 TERMINAL) (LOW-PROFILE MICRO 280) (ACDelco #D1755A) N1 2009-2010 01
013 88953222 RELAY, B/U LP (PART OF 8) (GRAY) (20AMP) (4 TERMINAL) (LOW-PROFILE MICRO 280) (2.485) (ACDelco #D1755A) N1 2009-2010 01
013 88953222 RELAY, PCM (PART OF 8) (GRAY) (20AMP) (4 TERMINAL) (LOW-PROFILE MICRO 280) (2.485) (ACDelco #D1755A) N1 2009-2010 01
013 88953222 RELAY, A/C CMPR (AC CLUTCH) (PART OF 8) (GRAY) (20AMP) (4 TERMINAL) (LOW-PROFILE MICRO 280) (2.485) (ACDelco #D1755A) N1 2008-2010 01
013 88953222 RELAY, R/WDO DEFG (PART OF 8) (GRAY) (20AMP) (4 TERMINAL) (LOW-PROFILE MICRO 280) (2.485) (ACDelco #D1755A) N1 2009-2010 01
013 88953222 RELAY, SECD AIR INJN PUMP (PART OF 8) (GRAY) (20AMP) (4 TERMINAL) (LOW-PROFILE MICRO 280) (2.485) (ACDelco #D1755A) N1 (LH9) 2010-2010 01
013 88953222 RELAY, HDLP (PART OF 8) (GRAY) (20AMP) (4 TERMINAL) (LOW-PROFILE MICRO 280) (2.485) (ACDelco #D1755A) N1 2009-2010 01
013 19116058 RELAY, A/C CMPR (5-WAY, HI-PWR, W/RESISTOR, UNSHROUDED, MICRO, CODE 7866) (PART OF 8) (BLACK) (35AMP) (5 TERMINAL) (HIGH CURRENT MICRO 280) (2.483) (ACDelco #D1780C) N1 2007-2010 01
014 12088594 RELAY, MULTIUSE (1 BOLT HOLE, 5 TERM, SKIRTED) (PART OF 8) (4.720) (ACDelco #12088594) N1 2007-2010 01
014 88953222 RELAY, A/C CMPR (AC CLUTCH) (PART OF 8) (GRAY) (20AMP) (4 TERMINAL) (LOW-PROFILE MICRO 280) (2.485) (ACDelco #D1755A) N1 2008-2010 01
014 19116059 RELAY, MULTIUSE (DLR) (PART OF 8) (GRAY) (4-TERMINAL) (SPACE SAVER ULTRA 280 MICRO) (ACDelco #19116059) N1 2009-2010 01
014 19116058 RELAY, A/C CMPR (5-WAY, HI-PWR, W/RESISTOR, UNSHROUDED, MICRO, CODE 7866) (PART OF 8) (BLACK) (35AMP) (5 TERMINAL) (HIGH CURRENT MICRO 280) (2.483) (ACDelco #D1780C) N1 2007-2010 01
014 12193606 RELAY, ACSRY TIME DELAY CUTOFF (PART OF 8) (BLUE) (4-TERMINAL) (SPST 280 MINI) (4.720) N1 2009-2010 01
014 12193606 RELAY, PARK LP (PART OF 8) (BLUE) (4-TERMINAL) (SPST 280 MINI) (4.720) N1 2009-2010 01
014 12193606 RELAY, IGN (PART OF 8) (BLUE) (4-TERMINAL) (SPST 280 MINI) (4.720) N1 2009-2010 01
014 12193606 RELAY, STRTR (PART OF 8) (BLUE) (4-TERMINAL) (SPST 280 MINI) (4.720) N153 (06) (LLR) (EXC BRM) 2010-2010 01
014 12193606 RELAY, STRTR (PART OF 8) (BLUE) (4-TERMINAL) (SPST 280 MINI) (4.720) N153 (06) (LH9) (EXC BRM) 2010-2010 01
014 12193606 RELAY, MULTIUSE (STOP) (PART OF 8) (BLUE) (4-TERMINAL) (SPST 280 MINI) (4.720) N1 2009-2010 01
014 12193606 RELAY, STRTR (PART OF 8) (BLUE) (4-TERMINAL) (SPST 280 MINI) (4.720) N155 (43) (LLR) (EXC BRM) 2009-2010 01
014 12193606 RELAY, IGN ; START SW (PART OF 8) (BLUE) (4-TERMINAL) (SPST 280 MINI) (4.720) N155 (43) (LLR) (EXC BRM) 2009-2010 01
014 12193606 RELAY, STRTR (PART OF 8) (BLUE) (4-TERMINAL) (SPST 280 MINI) (4.720) N155 (43) (LH9) (EXC BRM) 2010-2010 01
014 12193606 RELAY, STRTR (PART OF 8) (BLUE) (4-TERMINAL) (SPST 280 MINI) (4.720) N1 (LH9) 2010-2010 01
014 19116057 RELAY, IGN (PART OF 8) (GRAY) (35AMP) (4-TERMINAL) (HIGH CURRENT MICRO RELAY) (2.483) (ACDelco #D1786C) N1 2009-2010 01
014 12193606 RELAY, IGN ; START SW (PART OF 8) (BLUE) (4-TERMINAL) (SPST 280 MINI) (4.720) N1 (LH9, BRM) (EXPORT) 2010-2010 01
