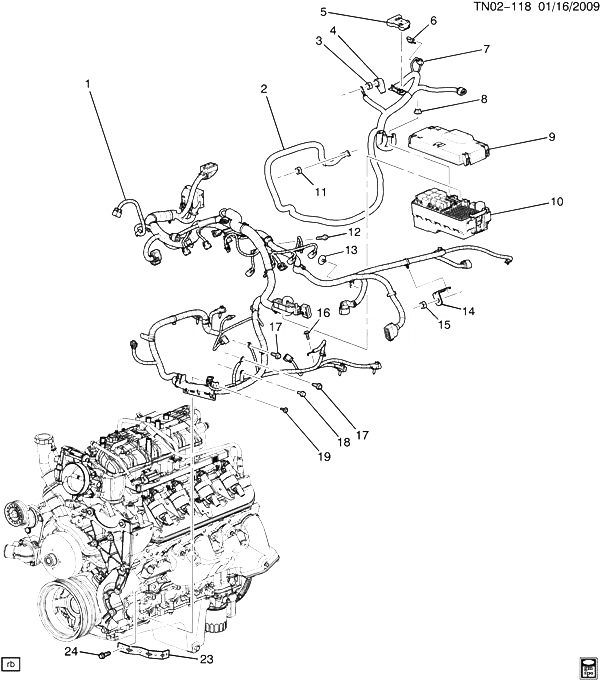

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
20872201 |
HARNESS, ENG WRG ; BAT POS CBL (INCLS 2, 4-7) |
N1 (LH9, M30, G93) (EXC RHD, V08) |
2010-2010 |
01 |
| 001 |
24301082 |
HARNESS, ENG WRG ; BAT POS CBL (INCLS 2, 4-7) |
N1 (LH9, M30, G93, JJA, RHD, V08) (EXPORT) |
2010-2010 |
01 |
| 001 |
24301082 |
HARNESS, ENG WRG ; BAT POS CBL (INCLS 2, 4-7) |
N1 (LH9, M30, JJA, RHD, V08) (EXC G93) (EXPORT) |
2010-2010 |
01 |
| 001 |
24301082 |
HARNESS, ENG WRG ; BAT POS CBL (INCLS 2, 4-7) |
N1 (LH9, M30, JJA, RHD) (EXC G93, V08) (EXPORT) |
2010-2010 |
01 |
| 001 |
24301082 |
HARNESS, ENG WRG ; BAT POS CBL (INCLS 2, 4-7) |
N1 (LH9, M30, G93, JJA, RHD) (EXC V08) (EXPORT) |
2010-2010 |
01 |
| 002 |
19116853 |
CABLE, BAT POS (PART OF 1) (SEE GROUP 02.000 BATTERY CABLES FOR DETAILED ILLUSTRATED VIEW) (ACDelco #19116853) |
N1 (LH9, M30) (EXC RHD) |
2010-2010 |
01 |
| 002 |
19117708 |
CABLE, BAT POS (PART OF 1) (SEE GROUP 02.000 BATTERY CABLES FOR DETAILED ILLUSTRATED VIEW) (ACDelco #19117708) |
N1 (LH9, M30, RHD) (EXPORT) |
2010-2010 |
01 |
| 003 |
11609411 |
NUT, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (BAT POS ; NEG CBL GEN POS LEAD) |
|
2008-2010 |
01 |
| 004 |
12146809 |
COVER, GEN WIRE TERM (PART OF 1) (BLACK) (TERMINAL BOOT COVER) (2.343) |
N1 |
2008-2010 |
01 |
| 005 |
19116717 |
COVER, BAT POS CBL TERM (PART OF 1) |
N1 |
2008-2010 |
01 |
| 006 |
12092079 |
FUSE, 10A, MINI, RED (PART OF 1) |
|
2008-2010 |
01 |
| 007 |
19116350 |
HOLDER, WRG HARN FUSE (PART OF 1) (BLACK) (2-WAY FUSEHOLDER) (ACDelco #19116350) |
N1 |
2008-2010 |
01 |
| 008 |
11609411 |
NUT, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (BAT POS CBL J/BLK LEAD) |
|
2008-2010 |
02 |
| 009 |
|
COVER, MULTIUSE RLY (SEE GROUP 02.000 BLOCK/UNDERHOOD BEC FOR DETAILED ILLUSTRATED VIEW) |
|
2008-2010 |
|
| 010 |
|
BLOCK, FUSE (SEE GROUP 02.000 BLOCK/UNDERHOOD BEC FOR DETAILED ILLUSTRATED VIEW) |
|
2008-2010 |
|
| 011 |
21021808 |
NUT, STRTR SOL CBL (M8X1.25X6, BRASS) |
N1 |
2008-2010 |
01 |
| 012 |
11588564 |
BOLT, HEX W/FL WA, M8X1.25X25, 15.85 THD, 17 OD, 9.8, GMW3200M, MACH, MAT-PT (ENG WRG HARN GND) |
|
2008-2010 |
02 |
| 013 |
11516703 |
BOLT, HEX, M4.8X1.6X13, 20 OD, 6010M MAT, 6047M FIN (ENG WRG HARN BRKT (TO ENG RR)) (8.977) |
|
2008-2010 |
01 |
| 014 |
15105348 |
BRACKET, ENG WRG HARN (ATTACH TO TRANS) |
N1 |
2008-2010 |
01 |
| 015 |
11514597 |
NUT, HFH, 10X1.5 THD, 9.8 THK, 21.8 OD, 510M (10) ZF 7111M (TRFER CASE) (2.383) |
|
2008-2010 |
01 |
| 016 |
11588337 |
BOLT, HEX W/FL WA, M6X1X20, 9 THD, 17 OD, 6202M, GMW3200, TAP, DOG PT. (ENG GND CBL (AT FRM)) |
|
2008-2010 |
01 |
| 017 |
11562004 |
BOLT, HEX W/FL WA, M10X1.5X30, 19 THD, 20 OD, 8.8, GMW3200, MACH, M-PT (ENG WRG HARN BRKT) |
|
2008-2010 |
02 |
| 018 |
11515756 |
BOLT, HFH, M8X1.25X20, 17THD, 18 O.D., 10.9, 7114M (ENG WRG HARN BRKT (TO ENG SI)) |
|
2008-2010 |
02 |
| 019 |
11514623 |
BOLT, HEX W/CON WA, M6X1X20 (ENG WRG HARN BRKT (TO ENG FRT)) |
|
2008-2010 |
01 |
| 020 |
15773394 |
BRACKET, ENG WRG HARN (TO ENG SI) |
N1 (LH9, JJA) |
2010-2010 |
01 |
| 021 |
11515756 |
BOLT, HFH, M8X1.25X20, 17THD, 18 O.D., 10.9, 7114M (ENG WRG HARN BRKT (TO ENG SI)) |
|
2008-2010 |
01 |
