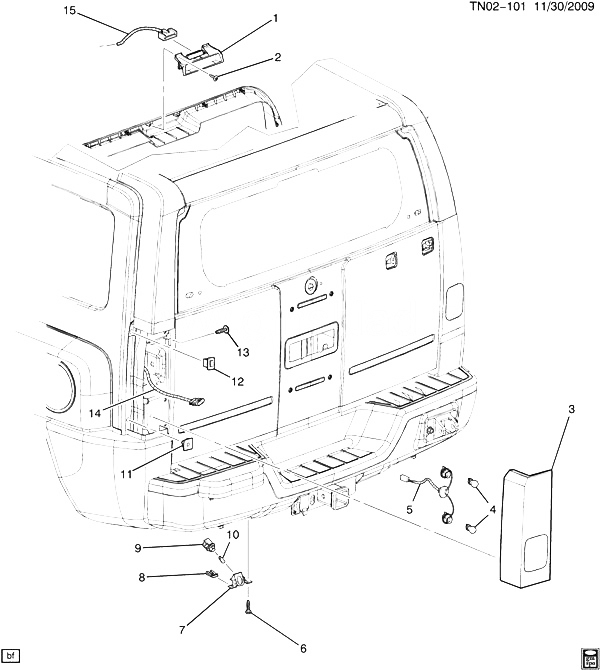

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
10357891 |
LAMP, HIGH MT STOP |
N153 (06) (EXC BRM) |
2007-2010 |
01 |
| 002 |
11509231 |
SCREW, RD HD C/R TAP, M4.2X1.41X13.0, GM6010M STL, GM813M NICKEL ORGANIC (HIGH MT S/LP) |
|
2006-2010 |
02 |
| 003 |
19259479 |
LAMP, TAIL (INCLS 4, 5) (MAY NEED TO REUSE OR ORDER HARNESS 10395344 ; BULBS 12450108) |
N153 (06) (EXC T89) |
2007-2010 |
01 |
| 003 |
19259480 |
LAMP, TAIL (INCLS 4, 5) (MAY NEED TO REUSE OR ORDER HARNESS 10395344 ; BULBS 12450108) |
N153 (06) (EXC T89) |
2007-2010 |
01 |
| 004 |
12450108 |
BULB, TRADE #3157KX (PART OF 3) (2.679) (ACDelco #3157KX) (LONGER LIFE KRYPTON) |
|
2006-2010 |
04 |
| 005 |
10395344 |
HARNESS, T/LP WRG (1LH, 1RH) (PART OF 3) |
N153 (06) (EXC T89) |
2007-2010 |
02 |
| 006 |
11589015 |
BOLT, HWH W/FL WA M4.2X1.41X20, 12.5 O.D., DOG PT, 6010M, 7253M (RR LIC PLT LP) |
|
2006-2010 |
02 |
| 007 |
22799748 |
LAMP, RR LIC PLT (INCLS 8-10) |
N153 (06) (EXC BRM) |
2007-2010 |
01 |
| 008 |
25605716 |
NUT, RR LIC PLT LP (PART OF 7) (13.8 X 14.9, 15.3) (U-SHAPED) (8.133) |
N153 (06) |
2006-2010 |
02 |
| 009 |
|
SOCKET, RR LIC PLT LP (PART OF 7) |
|
2007-2010 |
|
| 010 |
09421330 |
BULB, TRADE#194, 12V, 2CP (PART OF 7) (ACDelco #L194) |
|
2006-2010 |
01 |
| 011 |
15289020 |
RETAINER, T/LP |
N153 (06) |
2006-2010 |
02 |
| 012 |
11562421 |
RETAINER, T/LP (6-WAY, 0.95-1.2MM PNL RNG, NYLON 6/6) |
N153 (06) |
2006-2010 |
02 |
| 013 |
11609341 |
SCREW, RD WA HD M6X1X19, 13.55 THD, 16 OD, 10.9, GMW4205, W/ADH GM6175M, MATPT (T/LP SOC) |
|
2006-2010 |
04 |
| 014 |
|
HARNESS, CHAS WRG (SEE GROUP 02.000 WIRING HARNESS/CHASSIS FOR DETAILED ILLUSTRATED VIEW) |
|
2006-2010 |
|
| 015 |
25870874 |
HARNESS, R/CMPT C/LP WRG |
N153 (06) |
2007-2010 |
01 |
