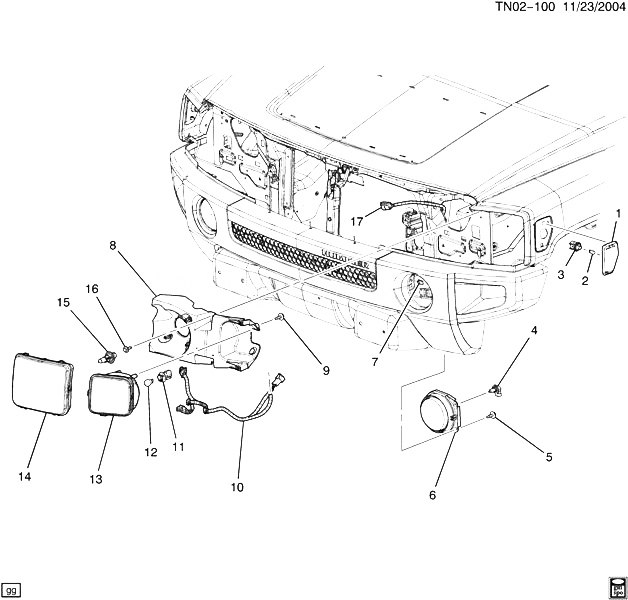

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15873638 |
LAMP, FRT SI MKR (INCLS 2, 3) |
N1 (EXC B74) |
2010-2010 |
01 |
| 001 |
15873639 |
LAMP, FRT SI MKR (INCLS 2, 3) |
N1 (EXC B74) |
2010-2010 |
01 |
| 002 |
09421330 |
BULB, TRADE#194, 12V, 2CP (PART OF 1) (ACDelco #L194) |
|
2006-2010 |
02 |
| 003 |
19120997 |
SOCKET, FRT SI MKR ; PARK LP (PART OF 1) (2-WAY FEMALE W/O LEADS) (MATING CONN W/LEADS USE 12101855) (2.697) (ACDelco #LS117) |
N1 (EXC B74) |
2010-2010 |
02 |
| 003 |
19120997 |
SOCKET, FRT SI MKR ; PARK LP (PART OF 1) (2-WAY FEMALE W/O LEADS) (MATING CONN W/LEADS USE 12101855) (2.697) (ACDelco #LS117) |
N1 (EXC B74) |
2010-2010 |
02 |
| 004 |
12450314 |
BULB, FRT FOG LP (PART OF 6) (BASE BLACK/CAP BLUE) (TRADE 9140) (L-SHAPED) (ACDelco #9140) |
N1 (T96) |
2006-2010 |
AR |
| 005 |
11514623 |
BOLT, HEX W/CON WA, M6X1X20 (FRT BPR IMP BAR BRKT) |
|
2006-2010 |
06 |
| 006 |
15807157 |
LAMP, FRT FOG (INCLS 4) |
N1 (T96) (EXC BRM) |
2007-2010 |
01 |
| 006 |
15807158 |
LAMP, FRT FOG (INCLS 4) |
N1 (T96) (EXC BRM) |
2007-2010 |
01 |
| 007 |
11518121 |
NUT, U, M6X1, MULTI THD, .5-4.0 THK PNL (FRT BPR IMP BAR BRKT) |
|
2006-2010 |
06 |
| 008 |
15951164 |
HEADLAMP, (W/PARK ; T/SIG LP) (INCLS 9-15) (2.725) |
N1 (EXC T84, T85) |
2007-2010 |
01 |
| 008 |
15951164 |
HEADLAMP, (W/PARK ; T/SIG LP) (INCLS 9-15) |
N1 (EXC T84, T85) |
2007-2010 |
01 |
| 008 |
15951163 |
HEADLAMP, (W/PARK ; T/SIG LP) (INCLS 9-15) (2.725) |
N1 (EXC T84, T85) |
2007-2010 |
01 |
| 008 |
15951163 |
HEADLAMP, (W/PARK ; T/SIG LP) (INCLS 9-15) |
N1 (EXC T84, T85) |
2007-2010 |
01 |
| 009 |
19178917 |
BOLT, HDLP (PART OF 8, 13) |
N1 (EXC T84, T85) |
2007-2010 |
04 |
| 009 |
19178917 |
BOLT, HDLP (PART OF 8, 13) |
N1 (EXC T84, T85) |
2007-2010 |
04 |
| 010 |
15834716 |
HARNESS, HDLP WRG (1LH, 1RH) (PART OF 8) |
N1 (EXC T84, T85) |
2007-2010 |
02 |
| 011 |
|
SOCKET, PARK ; T/SIG LP OTR (PART OF 8, 13) |
|
2007-2010 |
|
| 012 |
12450108 |
BULB, TRADE #3157KX (PART OF 8, 13) (2.679) (ACDelco #3157KX) (LONGER LIFE KRYPTON) |
|
2006-2010 |
02 |
| 013 |
15139187 |
LAMP, PARK ; T/SIG (PART OF 8) (INCLS 9, 11, 12) |
N1 (EXC T84, T85) |
2007-2010 |
01 |
| 013 |
15139188 |
LAMP, PARK ; T/SIG (PART OF 8) (INCLS 9, 11, 12) |
N1 (EXC T84, T85) |
2007-2010 |
01 |
| 014 |
|
CAPSULE, HDLP (PART OF 8) |
|
2007-2010 |
|
| 015 |
15203303 |
BULB, HDLP (PART OF 8) (TRADE H13) (MATING CONN W/LEADS USE 19149288) (ACDelco #H13) |
N1 (EXC T84, T85) |
2006-2010 |
02 |
| 016 |
11517342 |
BOLT, HEX HD, W/FL WA, M6X1X20, 9.53 THD, 17 O.D., P-PT, 9.8, 6280M (HDLP) |
|
2006-2010 |
06 |
| 017 |
|
HARNESS, FWD LP WRG (SEE GROUP 02.000 WIRING HARNESS/FRONT LAMPS FOR DETAILED ILLUSTRATED VIEWED VIEW) |
|
2006-2010 |
|
