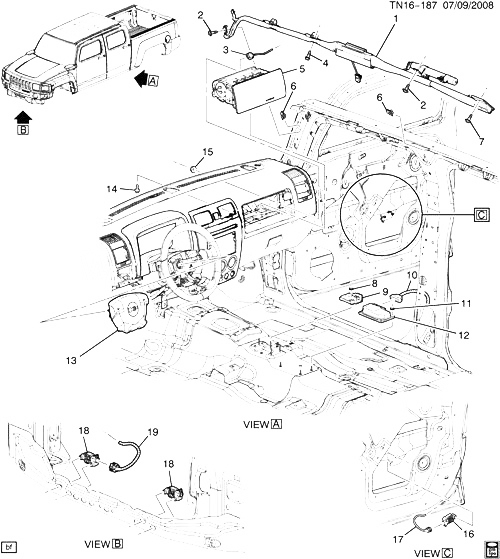

(TN16-187) - 2009-2010 N1(43) INFLATABLE RESTRAINT SYSTEM HUMMER - H3 SUV 2009

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 93355346 MODULE, RF S/RL INFL RST (INCLS 2, 4, 7) N155 (43) 2009-2010 01
001 93355347 MODULE, RF S/RL INFL RST (INCLS 2, 4, 7) N155 (43) 2009-2010 01
002 11561388 БОЛТ, HEX W/FL WA, M6X1X20, 11 THD, 17 OD, 9.8, GMW3359 W/ADH 6175M (PART OF 1) 2009-2010 03
003 HARNESS, I/P WRG (SEE GROUP 02.000 ЖГУТ ПРОВОДОВ, INSTRUMENT PANEL FOR DETAILED ILLUSTRATED VIEW) 2009-2010
004 11609287 БОЛТ, RF S/RL INFL RST MDL (RH ; LH SI) (PART OF 1) (M6X1X24, 7 THD, 15.25 OD) (14.865) N155 (43) 2009-2009 04
005 15850867 MODULE, I/P INFL RST (EBONY) N1 (RHD, 19I) (EXC HH3) (EXPORT) 2009-2010 01
005 15850867 MODULE, I/P INFL RST (EBONY) N1 (RHD, 27I) (EXC HH3) (EXPORT) 2009-2010 01
005 25809845 MODULE, I/P INFL RST (EBONY) N1 (19I, 27I) 2009-2010 01
006 11519502 NUT, TYPE U, M6X1, 23.5X12.5, 13.5 C/E, 0.8-4.0 PNL, GM7111M (INFL RST RF S/RL MDL AIRBAG STRP) 2009-2010 12
007 94720563 БОЛТ, RF S/RL INFL RST MDL (PART OF 1) (M6X1X24, 7 THD, 20 OD) N155 (43) 2009-2009 02
008 03530297 ГАЙКА, HFH, M6X1, 5.85THK, 14.2 O.D., 10, ZOR (INFL RST VEH ROLLOVER SEN) 2009-2010 03
009 94729712 ДАТЧИК, INFL RST VEH ROLLOVER (LABELED 94729712) N155 (43) (ASF) 2009-2010 01
010 HARNESS, BODY WRG (SEE GROUP 13.000 ПРОВОДКА-КУЗОВ FOR DETAILED ILLUSTRATED VIEW) (2.525) 2009-2010
011 03530297 ГАЙКА, HFH, M6X1, 5.85THK, 14.2 O.D., 10, ZOR (INFL RST SEN ; DIAGN MDL) 2009-2010 03
012 94732688 MODULE, INFL RST SEN ; DIAGN N155 (43) (ASF) 2009-2009 01
013 25809839 MODULE, STRG WHL INFL RST (EBONY) (INCLS СИГНАЛ CONTACTS) (16.712) N1 (19I, 27I) (EXC Y92) 2009-2010 01
013 25809839 MODULE, STRG WHL INFL RST (EBONY) (INCLS СИГНАЛ CONTACTS) N1 (19I, 27I) (EXC Y92) 2009-2010 01
013 25809843 MODULE, STRG WHL INFL RST (EBONY) (16.712) N1 (Y92, 19I, 27I) 2009-2010 01
013 25809843 MODULE, STRG WHL INFL RST (EBONY) N1 (Y92, 19I, 27I) 2009-2010 01
014 11517484 BOLT-HEX, M6X1X20, 9 THD, 17 OD, 9.8, 6280M, MACH, P-PT (I/P INFL RST MDL) 2009-2010 02
015 11609411 ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (COMMUNICATION INTERFACE MDL) 2009-2010 02
016 10383629 ДАТЧИК, INFL RST SI IMP N1 (ASF) 2009-2010 02
017 HARNESS, FRT S/D DR WRG (SEE GROUP 16.000 DOOR HARDWARE/FRONT FOR DETAILED ILLUSTRATED VIEW) 2009-2010
018 94730161 ДАТЧИК, F/END INFL RST DISCRM N155 (43) 2009-2010 02
019 HARNESS, FWD LP WRG (SEE GROUP 02.000 ЖГУТ ПРОВОДОВ/FWD LAMPS FOR DETAILED ILLUSTRATED VIEW) 2009-2010
