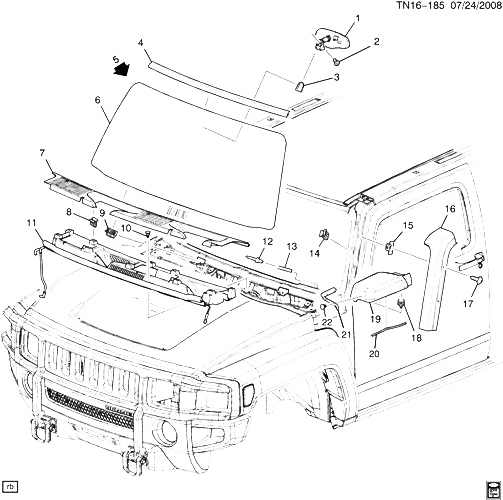

(TN16-185) - 2009-2010 N1 WINDSHIELD RELATED PARTS HUMMER - H3 SUV 2009

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15269044 MIRROR, I/S RR VIEW (INCLS 2) (LT SEN, COMPASS, O/S TEMP DISPLAY) N1 (DF5) (EXC UE1, UVC, UVF) 2009-2010 01
001 15269045 MIRROR, I/S RR VIEW (INCLS 2) (LT SEN, COMPASS, O/S TEMP DISPLAY, ONSTAR, ; GPS) N1 (DF5, UE1) (EXC UVC, UVF) 2009-2010 01
001 24300626 MIRROR, I/S RR VIEW (INCLS 2) N1 (06) (BRM, DF5, UVC) (EXC UE1) (EXPORT) 2009-2010 01
001 25814286 MIRROR, I/S RR VIEW (INCLS 2) (INCLS SLIDING LCD VIDEO W/GRID DISPLAY) N153 (06) (DF5, UVC) (EXC BRM, UE1, UVF) 2009-2010 01
001 25814287 MIRROR, I/S RR VIEW (INCLS 2) (INCLS SLIDING LCD VIDEO W/GRID DISPLAY) N153 (DF5, UE1, UVC) (EXC BRM, UVF) 2009-2010 01
001 25958623 MIRROR, I/S RR VIEW (INCLS 2) N153 (06) (DF5, UVF) (EXC UE1, UVC) 2009-2010 01
001 25958623 MIRROR, I/S RR VIEW (INCLS 2) N155 (43) (DF5, UVC) (EXC UE1, UVF) 2009-2010 01
001 94725971 MIRROR, I/S RR VIEW (INCLS 2) N155 (43) (DF5, UE1, UVC) (EXC UVF) 2009-2010 01
002 БОЛТ, I/S RR VIEW MIR (PART OF 1) 2009-2010
003 BRACKET, I/S RR VIEW MIR MT PLT (PART OF 6) 2009-2010
004 MOLDING, W/S UPR RVL (PART OF 6) 2009-2010
005 12346392 ADHESIVE KIT, GLASS URETHANE (W/S) (FOR INSTALLATION OF ALL STATIONARY WINDOW GLASS) 2009-2010 AR
006 15900257 WINDSHIELD, (INCLS 3, 4) (W/UPPER RVL MOLDING) N1 (EXC A1W) 2009-2010 01
006 25809502 WINDSHIELD, (INCLS 3, 4) (W/UPPER RVL MOLDING) N1 (A1W) 2009-2010 01
007 15822189 PANEL, AIR INL GRL (UPR) (SEE GROUP 16.000 СТЕКЛООЧИСТИТЕЛЬ ВЕТРОВОГО СТЕКЛО FOR DETAILED ILLUSTRATED VIEW) (INCLS 8) N1 (RHD) (EXPORT) 2009-2010 01
007 15840842 PANEL, AIR INL GRL (UPR) (PAINT TO MATCH) (SEE GROUP 16.000 СТЕКЛООЧИСТИТЕЛЬ ВЕТРОВОГО СТЕКЛО FOR DETAILED ILLUSTRATED VIEW) (INCLS 8) N1 (YP8) (EXC RHD) 2009-2009 01
007 25983122 PANEL, AIR INL GRL (UPR) (SEE GROUP 16.000 СТЕКЛООЧИСТИТЕЛЬ ВЕТРОВОГО СТЕКЛО FOR DETAILED ILLUSTRATED VIEW) (INCLS 8) N1 (EXC RHD, YP8) 2009-2009 01
008 11610266 CLIP, AIR INL GRL PNL (PART OF 7) (8.950) N1 2009-2010 10
009 15061964 SUPPORT, W/S N1 2009-2010 02
010 15326410 RETAINER, AIR INL GRL PNL (4.75 MM) (PUSH-IN CHRISTMAS TREE TYPE) (14.683) N1 2009-2010 04
011 15822215 PANEL, AIR INL GRL (LWR) (SEE GROUP 16.000 СТЕКЛООЧИСТИТЕЛЬ ВЕТРОВОГО СТЕКЛО FOR DETAILED ILLUSRTATED VIEW) N1 (RHD) (EXPORT) 2009-2010 01
011 20756045 PANEL, AIR INL GRL (LWR) (SEE GROUP 16.000 СТЕКЛООЧИСТИТЕЛЬ ВЕТРОВОГО СТЕКЛО FOR DETAILED ILLUSRTATED VIEW) (BLACK) N155 (43) (EXC RHD) 2009-2010 01
011 20756046 PANEL, AIR INL GRL (LWR) (SEE GROUP 16.000 СТЕКЛООЧИСТИТЕЛЬ ВЕТРОВОГО СТЕКЛО FOR DETAILED ILLUSRTATED VIEW) (BLACK) N153 (06) (EXC RHD) 2009-2010 01
012 RIVET, VIN PLT 2009-2010
013 PLATE, VIN (CONTACT APPROPRIATE AUTHORITY GOVERNING MOTOR VEHICLES FOR REPLACEMENT PROCESS) 2009-2010
014 11589262 RETAINER, W/S SI R/MLDG N1 2009-2010 06
015 11569711 NUT, PUSH-IN, M4.2X1.41, 0.7-2.15 PNL THK, SAE 1050-1065, GMW3359 W/ (W/S SI R/MLDG) 2009-2010 04
016 15909801 MOLDING, W/S SI RVL (GRAY) N153 (06) (EXC RHD, UVF) 2009-2010 01
016 15909802 MOLDING, W/S SI RVL (GRAY) N153 (06) (EXC RHD, UVF) 2009-2010 01
016 24300074 MOLDING, W/S SI RVL N1 (RHD, UVF) (EXPORT) 2009-2010 01
016 24300075 MOLDING, W/S SI RVL N1 (UVF) (EXC RHD) 2009-2010 01
017 11508231 SCREW, RD CROWNED WA HD, SELF TAP, M4.2X1.41X16, POR (W/S SI R/MLDG) 2009-2010 04
018 11519031 RETAINER, PUSH IN, 19.5X26.1X1.8, ACETAL, NATURAL, FOAM SEALER (PART OF 19) 2009-2010 08
019 19120871 COVER, FRT INT AIR DUCT HOLE (INCLS 18, 20-22) (PAINT TO MATCH) N1 2009-2009 01
019 19120872 COVER, FRT INT AIR DUCT HOLE (INCLS 18, 20-22) (PAINT TO MATCH) N1 2009-2009 01
020 15884135 INSULATOR, A/CL HSG CVR (PART OF 19) N1 2009-2010 01
021 15884125 SEAL, A/CL (LEFT SIDE/COVER, FRT INT AIR DUCT) (INCLS 22) (PART OF 19) N1 2009-2010 01
021 15884126 SEAL, A/CL (RIGHT SIDE/COVER, FRT INT AIR DUCT) (INCLS 22) (PART OF 19) N1 2009-2010 01
022 21121668 RETAINER, INT AIR BFL (PUSH IN) (PART OF 19, 21) (FRT INT AIR DUCT-HOLE) (12.804) N1 2009-2010 05
