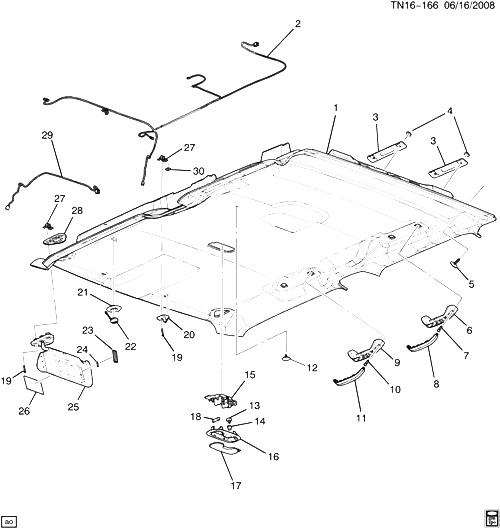

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
94703554 |
PANEL, HDLNG TR (GRAY) |
N155 (43) (YC0, YC3, 19I) (EXC CF5, UE1) |
2009-2009 |
01 |
| 001 |
94703555 |
PANEL, HDLNG TR (CASHMERE) |
N155 (43) (YC0, YC3, 27I) (EXC CF5, UE1) |
2009-2009 |
01 |
| 001 |
94703564 |
PANEL, HDLNG TR (GRAY) |
N155 (43) (UE1, YC0, YC3, 19I) (EXC CF5) |
2009-2009 |
01 |
| 001 |
94703565 |
PANEL, HDLNG TR (CASHMERE) |
N155 (43) (UE1, YC0, YC3, 27I) (EXC CF5) |
2009-2009 |
01 |
| 002 |
|
HARNESS, DM LP WRG |
|
2009-2010 |
|
| 003 |
15285400 |
SPACER, ASST HDL (ASST HNDL SPACER RTNR) (16.346) |
N1 (43) |
2009-2010 |
03 |
| 004 |
15867647 |
RETAINER, ASST HDL (PUSH ON) |
N1 |
2009-2010 |
06 |
| 005 |
15127030 |
RETAINER, HDLNG T/PNL (GRAY) (47.5MM X DIA 6.70) (PLASTIC) |
N155 (43) (19I) |
2009-2009 |
02 |
| 006 |
15281856 |
HANDLE, R/RL RR ASST (INCLS 7, 8) (GRAY) |
N155 (43) (YC0, YC3, 19I) |
2009-2009 |
02 |
| 006 |
15296745 |
HANDLE, R/RL RR ASST (INCLS 7, 8) (CASHMERE) |
N155 (43) (YC0, YC3, 27I) |
2009-2009 |
02 |
| 007 |
11518944 |
SCREW, PAN HD, M6X1X25, 20.9 THD, 11 OD, 8.8, GMW3359, 6 LOBED T-30 M-POINT (PART OF 6) (8.913) |
|
2009-2010 |
04 |
| 008 |
|
COVER, R/RL RR ASST HDL HOLE (PART OF 6) |
|
2009-2010 |
|
| 009 |
15281856 |
HANDLE, R/RL FRT ASST (INCLS 10, 11) (GRAY) |
N155 (43) (YC0, YC3, 19I) |
2009-2010 |
01 |
| 009 |
15296745 |
HANDLE, R/RL FRT ASST (INCLS 10, 11) (CASHMERE) |
N155 (43) (YC0, YC3, 27I) |
2009-2010 |
01 |
| 010 |
11518944 |
SCREW, PAN HD, M6X1X25, 20.9 THD, 11 OD, 8.8, GMW3359, 6 LOBED T-30 M-POINT (PART OF 9) (8.913) |
|
2009-2010 |
02 |
| 011 |
|
COVER, R/RL RR ASST HDL HOLE (PART OF 9) |
|
2009-2010 |
|
| 012 |
15125380 |
RETAINER, HDLNG T/PNL (GRAY) (19.2MM X DIA 35.0) (LENGTH FROM BASE TO TIP IS 2.00 CM)
| N155 (43) (DH6, UG1, YC0, YC3, 19I) |
2009-2009 |
02 |
|
| 012 |
15125380 |
RETAINER, HDLNG T/PNL (GRAY) (19.2MM X DIA 35.0) (LENGTH FROM BASE TO TIP IS 2.00 CM)
| N155 (43) (UE1, YC0, YC3, 19I) (EXC CF5, DH6, UG1) |
2009-2009 |
02 |
|
| 012 |
15125380 |
RETAINER, HDLNG T/PNL (GRAY) (19.2MM X DIA 35.0) (LENGTH FROM BASE TO TIP IS 2.00 CM)
| N155 (43) (YC0, YC3, 19I) (EXC CF5, DH6, UE1, UG1) |
2009-2009 |
02 |
|
| 012 |
15297259 |
RETAINER, HDLNG T/PNL (CASHMERE) (19.2MM X DIA 35.0) |
N155 (43) (DH6, UE1, UG1, YC0, YC3, 27I) (EXC CF5) |
2009-2009 |
02 |
| 012 |
15297259 |
RETAINER, HDLNG T/PNL (CASHMERE) (19.2MM X DIA 35.0) |
N155 (43) (DH6, UG1, YC0, YC3, 27I) (EXC CF5, UE1) |
2009-2009 |
02 |
| 012 |
15297259 |
RETAINER, HDLNG T/PNL (CASHMERE) (19.2MM X DIA 35.0) |
N155 (43) (UE1, YC0, YC3, 27I) (EXC CF5, DH6, UG1) |
2009-2009 |
02 |
| 012 |
15297259 |
RETAINER, HDLNG T/PNL (CASHMERE) (19.2MM X DIA 35.0) |
N155 (43) (YC0, YC3, 27I) (EXC CF5, DH6, UE1, UG1) |
2009-2009 |
02 |
| 013 |
15166059 |
SWITCH, DM LP (PART OF 16) (EBONY) |
N1 |
2009-2010 |
02 |
| 014 |
15166059 |
PUSHBUTTON, RDG LP SW (PART OF 16) (EBONY) |
N1 |
2009-2010 |
02 |
| 015 |
15032587 |
HOUSING, DM ; RDG LP (PART OF 16) |
N1 |
2009-2009 |
01 |
| 016 |
15296734 |
LAMP, DM ; RDG (INCLS 13-15, 17, 18) (CASHMERE) |
N1 (27I) |
2009-2010 |
01 |
| 016 |
25965486 |
LAMP, DM ; RDG (INCLS 13-15, 17, 18) (GRAY) |
N1 (19I) |
2009-2010 |
01 |
| 017 |
15774270 |
LENS, DM LP (FRONT/READING) (PART OF 16) |
N1 |
2009-2009 |
01 |
| 018 |
12450074 |
BULB, TRADE #578 (PART OF 16) (ACDelco #578)
|
2009-2010 |
03 |
|
| 019 |
11610271 |
SCREW, PAN HD, M4.2X1.41X25, 20.5 THD, 8 OD, 6010M, GMW4205, T15 TORX, AB-PT (S/S) |
|
2009-2010 |
08 |
| 020 |
15272047 |
SUPPORT, S/S (GRAY) |
N155 (43) (YC0, YC3, 19I) |
2009-2010 |
02 |
| 020 |
15296740 |
SUPPORT, S/S (CASHMERE) |
N155 (43) (YC0, YC3, 27I) |
2009-2010 |
02 |
| 021 |
15296747 |
BEZEL, MOBILE TEL MIC (CASHMERE) |
N1 (UE1, YC0, YC3, 27I) |
2009-2010 |
01 |
| 021 |
22666403 |
BEZEL, MOBILE TEL MIC (GRAY) |
N1 (UE1, YC0, YC3, 19I) |
2009-2010 |
01 |
| 022 |
15264477 |
MICROPHONE, MOBILE TEL (GRAY) |
N1 (19I) |
2009-2010 |
01 |
| 022 |
15781014 |
MICROPHONE, MOBILE TEL (CASHMERE) |
N1 (27I) |
2009-2010 |
01 |
| 023 |
12503323 |
LENS, S/S ILLUM MIR LP (PART OF 25) (LEFT SIDE OF MIRROR) (10.195) |
N1 |
2009-2010 |
02 |
| 024 |
09442395 |
BULB, TRADE # 7065 (PART OF 25) (ACDelco #L7065) |
|
2009-2010 |
04 |
| 025 |
15296723 |
СОЛНЦЕЗАЩИТНЫЙ КОЗЫРЕК, (INCLS 23, 24, 26) (GRAY) |
N155 (43) (DH6, YC0, 19I) |
2009-2010 |
01 |
| 025 |
15296724 |
СОЛНЦЕЗАЩИТНЫЙ КОЗЫРЕК, (INCLS 23, 24, 26) (CASHMERE) |
N155 (43) (DH6, YC0, YC3, 27I) |
2009-2010 |
01 |
| 025 |
15296725 |
СОЛНЦЕЗАЩИТНЫЙ КОЗЫРЕК, (INCLS 23, 24, 26) (GRAY) |
N155 (43) (DH6, YC0, YC3, 19I) |
2009-2010 |
01 |
| 025 |
15296726 |
СОЛНЦЕЗАЩИТНЫЙ КОЗЫРЕК, (INCLS 23, 24, 26) (CASHMERE) |
N155 (43) (DH6, UG1, YC0, YC3, 27I) |
2009-2010 |
01 |
| 025 |
15296729 |
СОЛНЦЕЗАЩИТНЫЙ КОЗЫРЕК, (INCLS 23, 24, 26) (GRAY) |
N155 (43) (YC0, YC3, 19I) (EXC DH6, UG1) |
2009-2010 |
01 |
| 025 |
15296730 |
СОЛНЦЕЗАЩИТНЫЙ КОЗЫРЕК, (INCLS 23, 24, 26) (CASHMERE) |
N155 (43) (YC0, YC3, 27I) (EXC DH6, UG1) |
2009-2010 |
01 |
| 025 |
15833741 |
СОЛНЦЕЗАЩИТНЫЙ КОЗЫРЕК, (INCLS 23, 24, 26) (GRAY) |
N155 (43) (YC0, YC3, 19I) (EXC DH6, UG1) |
2009-2010 |
01 |
| 025 |
15833742 |
СОЛНЦЕЗАЩИТНЫЙ КОЗЫРЕК, (INCLS 23, 24, 26) (CASHMERE) |
N155 (43) (YC0, YC3, 27I) (EXC DH6, UG1) |
2009-2010 |
01 |
| 026 |
15006352 |
LABEL, INFL RST SYS WRNG (PART OF 25) (ENGLISH/FRENCH) |
N1 |
2009-2010 |
02 |
| 026 |
15116388 |
LABEL, INFL RST SYS WRNG (PART OF 25) (ENGLISH/SPANISH)
| N1 |
2009-2010 |
02 |
|
| 026 |
15815407 |
LABEL, INFL RST SYS WRNG (PART OF 25) (ENGLISH/ARABIC) |
N1 (VBX) (EXPORT) |
2009-2010 |
02 |
| 027 |
11609314 |
NUT, S/S SUPT (4.2 X 1.41) (12.8 HOLE) |
N155 (43) |
2009-2009 |
08 |
| 028 |
|
SPACER, S/S |
|
2009-2010 |
|
| 029 |
|
HARNESS, COMMUNICATION CTR MIC WRG |
|
2009-2010 |
|
| 030 |
15296732 |
CLIP, S/S SUPT |
N155 (43) |
2009-2009 |
02 |
