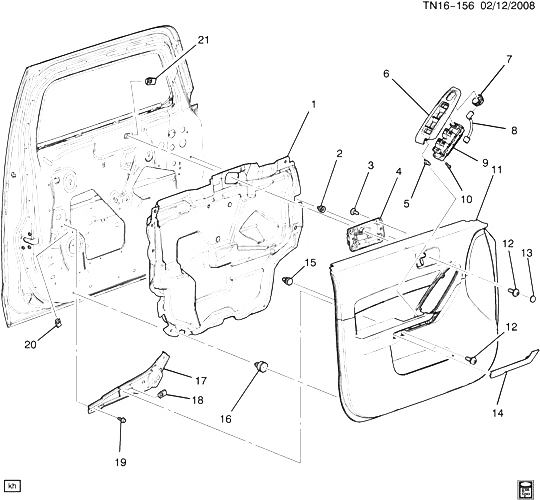

(TN16-156) - 2009 N1(43) ПЕРЕДНЯЯ БОКОВАЯ ДВЕРЬ HUMMER - H3 SUV 2009

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 25958439 DEFLECTOR, FRT S/D WAT (PART OF 11) N155 (43) 2009-2009 01
001 25958440 DEFLECTOR, FRT S/D WAT (PART OF 11) N155 (43) 2009-2009 01
002 11519032 RETAINER, PUSH IN, 19.5X28.4X1.8, FITS HOLE 9.1, ACETAL, BLK (PART OF 11) 2009-2009 06
003 11609509 SCREW, LG RD WA HD, C/R, HI-LO, 4.2X1.41X13, 11.35-OD, B PT, 6010, GMW4205 (PART OF 11) 2009-2009 08
004 15818937 HANDLE, FRT S/D I/S (PART OF 11) (CHROME) N1 2009-2009 01
004 15818938 HANDLE, FRT S/D I/S (PART OF 11) (BRIGHT CHROME) N1 (74J) 2009-2009 01
005 10410811 RETAINER, FRT S/D ACSRY SW MT PLT (*KIT1) (10.777) N1 2009-2009 04
006 24300051 PLATE, FRT S/D ACSRY SW MT (*KIT1) N1 (RHD) (EXPORT) 2009-2009 01
006 25783024 PLATE, FRT S/D ACSRY SW MT (*KIT1) N1 (RHD) (EXC COP) (EXPORT) 2009-2009 01
006 25876084 PLATE, FRT S/D ACSRY SW MT (*KIT1) N1 (EXC RHD) 2009-2009 01
006 25876085 PLATE, FRT S/D ACSRY SW MT (*KIT1) N1 (EXC RHD) 2009-2009 01
007 15250458 SWITCH, O/S R/CON RR VIEW MIR (EBONY) (LABELED WITH OEM P/N 15250458) (*KIT1) (10.186) N1 2009-2009 01
008 HARNESS, O/S RR VIEW MIR DR WRG (*KIT1) (EXC RHD) 2009-2009
008 25783026 HARNESS, O/S RR VIEW MIR DR WRG (*KIT1) (16.068) N1 (RHD) (EXPORT) 2009-2009 01
008 25783026 HARNESS, O/S RR VIEW MIR DR WRG (*KIT1) N1 (RHD) (EXPORT) 2009-2009 01
009 15205244 SWITCH, DR LK ; SI WDO (*KIT1) N1 2009-2009 01
009 15920923 SWITCH, DR LK ; SI WDO (*KIT1) N1 (RHD) (EXPORT) 2009-2009 01
009 25779767 SWITCH, DR LK ; SI WDO (*KIT1) N1 (EXC RHD) 2009-2009 01
010 15119572 БОЛТ, FRT S/D ACSRY SW MT PLT (*KIT1) (16.165) N1 2009-2009 05
011 20777760 PANEL, FRT S/D TR (INCLS 1-4, 15, 16) (EBONY) N1 (19J, 193) 2009-2009 01
011 20777763 PANEL, FRT S/D TR (INCLS 1-4, 15, 16) (MOROCCO) N1 (423) 2009-2009 01
011 25782266 PANEL, FRT S/D TR (INCLS 1-4, 15, 16) (MOROCCO) N1 (423) 2009-2009 01
011 25805198 PANEL, FRT S/D TR (INCLS 1-4, 15, 16) (RED) N1 (74J) 2009-2009 01
011 25876095 PANEL, FRT S/D TR (INCLS 1-4, 15, 16) (CASHMERE) N1 (31J, 313) 2009-2009 01
011 25876096 PANEL, FRT S/D TR (INCLS 1-4, 15, 16) (RED) N1 (74J) 2009-2009 01
011 25876101 PANEL, FRT S/D TR (INCLS 1-4, 15, 16) (CASHMERE) N1 (31J, 313) 2009-2009 01
012 11609657 SCREW, PANWASH, M6X1X20, 16.3 THD, 15 OD, 9.8, GMW4205 (FRT S/D T/PNL) 2009-2009 06
013 15823348 COVER, FRT S/D TR BOLT ACC HOLE (EBONY) N155 (43) 2009-2009 02
014 15951958 COVER, FRT S/D A/RST FRT FIN (EBONY) N155 (43) 2009-2009 01
014 25782263 COVER, FRT S/D A/RST FRT FIN (EBONY) N155 (43) 2009-2009 01
015 15870761 RETAINER, FRT S/D T/PNL (PART OF 11) (1905 OD, 31 TL) (FITS 6MM HOLE) N153 (06) 2009-2009 02
016 11519031 RETAINER, PUSH IN, 19.5X26.1X1.8, ACETAL, NATURAL, FOAM SEALER (PART OF 11) 2009-2009 12
017 25784258 BRACKET, FRT S/D A/RST (INCLS 18) N1 2009-2009 01
017 25784259 BRACKET, FRT S/D A/RST (INCLS 18) N1 2009-2009 01
018 11570097 ГАЙКА, U-TYPE, M6X1, 21.4X15, 11.7 C/E, SAE 1050 STL, GMW3359. (PART OF 17) 2009-2009 02
019 11588712 БОЛТ, HFH, M6X1X20, 17.5 THD, 14.2 O.D., 8.8, GMW3359 (FRT S/D A/RST BRKT) 2009-2009 06
020 11518121 NUT, U, M6X1, MULTI THD, .5-4.0 THK PNL (FRT S/D A/RST BRKT) 2009-2009 06
021 11518121 NUT, U, M6X1, MULTI THD, .5-4.0 THK PNL (FRT S/D TR PNL) 2009-2009 02
K01 24300045 PLATE, FRT S/D ACSRY SW MT (INCLS 5-10) (EBONY) N1 (RHD, 19I, 27I) (EXC COP) (EXPORT) 2009-2009 01
K01 25805195 PLATE, FRT S/D ACSRY SW MT (INCLS 5-10) (EBONY) N1 (19I, 27I) (EXC RHD) 2009-2009 01
K01 25876089 PLATE, FRT S/D ACSRY SW MT (INCLS 5-10) (EBONY) N1 (19I, 27I) (EXC RHD) 2009-2009 01
