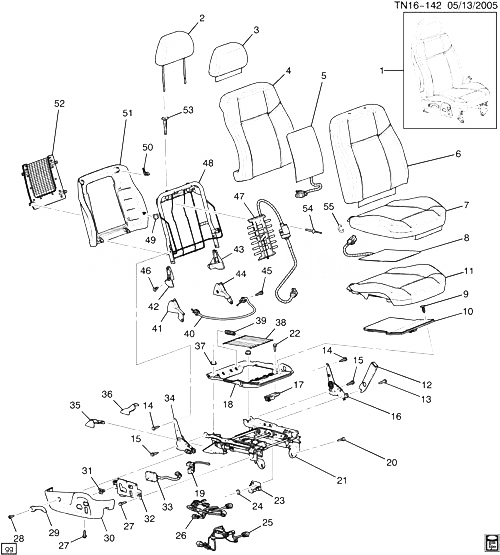

(TN16-142) - 2006-2009 N1 СИДЕНЬЕ ПАССАЖИРА/BUCKET 3 TRIMS (AG2) HUMMER - H3 SUV 2009

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 20772588 СИДЕНЬЕ, ПАССАЖИРСКОЕ (INCLS 2-55) (EBONY) N1 (AG2, AR9, KA1, 193) (EXC HH3, RHD, Y92) 2009-2009 01
001 20772589 СИДЕНЬЕ, ПАССАЖИРСКОЕ (INCLS 2-55) (CASHMERE) N1 (AG2, AR9, KA1, 313) (EXC HH3, RHD, Y92) 2009-2009 01
001 20772590 СИДЕНЬЕ, ПАССАЖИРСКОЕ (INCLS 2-55) (MOROCCO) N1 (AG2, AR9, KA1, 423) (EXC HH3, RHD, Y92) 2009-2009 01
001 20772666 СИДЕНЬЕ, ПАССАЖИРСКОЕ (INCLS 2-55) (EBONY) N1 (06) (AG2, AR9, HH3, KA1, 193) (EXC RHD, Y92) 2009-2009 01
001 20772667 СИДЕНЬЕ, ПАССАЖИРСКОЕ (INCLS 2-55) (CASHMERE) N1 (06) (AG2, AR9, HH3, KA1, 313) (EXC RHD, Y92) 2009-2009 01
001 20772668 СИДЕНЬЕ, ПАССАЖИРСКОЕ (INCLS 2-55) (MOROCCO) N1 (06) (AG2, AR9, HH3, KA1, 423) (EXC RHD, Y92) 2009-2009 01
001 20772670 СИДЕНЬЕ, ПАССАЖИРСКОЕ (INCLS 2-55) (EBONY) N1 (AG2, AR9, KA1, Y92, 193) 2009-2009 01
001 20772671 СИДЕНЬЕ, ПАССАЖИРСКОЕ (INCLS 2-55) (CASHMERE) N1 (AG2, AR9, KA1, Y92, 313) 2009-2009 01
001 20772672 СИДЕНЬЕ, ПАССАЖИРСКОЕ (INCLS 2-55) (MOROCCO) N1 (AG2, AR9, KA1, Y92, 423) 2009-2009 01
001 20787065 СИДЕНЬЕ, ПАССАЖИРСКОЕ (INCLS 2-55) (EBONY) N1 (AG2, AR9, KA1, 193) (EXC HH3, RHD, Y92) 2009-2009 01
001 20787066 СИДЕНЬЕ, ПАССАЖИРСКОЕ (INCLS 2-55) (CASHMERE) N1 (AG2, AR9, KA1, 313) (EXC HH3, RHD, Y92) 2009-2009 01
001 20787067 СИДЕНЬЕ, ПАССАЖИРСКОЕ (INCLS 2-55) (MOROCCO) N1 (AG2, AR9, KA1, 423) (EXC HH3, RHD, Y92) 2009-2009 01
001 20787069 СИДЕНЬЕ, ПАССАЖИРСКОЕ (INCLS 2-55) (EBONY) N1 (AG2, AR9, HH3, KA1, 193) (EXC RHD, Y92) 2009-2009 01
001 20787070 СИДЕНЬЕ, ПАССАЖИРСКОЕ (INCLS 2-55) (CASHMERE) N1 (AG2, AR9, HH3, KA1, 313) (EXC RHD, Y92) 2009-2009 01
001 20787071 СИДЕНЬЕ, ПАССАЖИРСКОЕ (INCLS 2-55) (MOROCCO) N153 (06) (AG2, AR9, HH3, KA1, 423) (EXC RHD, Y92) 2009-2009 01
001 20787073 СИДЕНЬЕ, ПАССАЖИРСКОЕ (INCLS 2-55) (EBONY) N1 (AG2, AR9, KA1, Y92, 193) 2009-2009 01
001 20787074 СИДЕНЬЕ, ПАССАЖИРСКОЕ (INCLS 2-55) (CASHMERE) N1 (AG2, AR9, KA1, Y92, 313) 2009-2009 01
001 20787075 СИДЕНЬЕ, ПАССАЖИРСКОЕ (INCLS 2-55) (MOROCCO) N1 (AG2, AR9, KA1, Y92, 423) 2009-2009 01
001 24300180 СИДЕНЬЕ, ПАССАЖИРСКОЕ (INCLS 2-55) (EBONY) N153 (06) (AG2, AR9, KA1, RHD, 193) (EXPORT) 2007-2009 01
001 24300182 СИДЕНЬЕ, ПАССАЖИРСКОЕ (INCLS 2-55) (CASHMERE) N153 (06) (AG2, AR9, KA1, RHD, 313) (EXPORT) 2007-2009 01
001 24300183 СИДЕНЬЕ, ПАССАЖИРСКОЕ (INCLS 2-55) (MOROCCO) N153 (06) (AG2, AR9, KA1, RHD, 423) (EXPORT) 2007-2009 01
001 25832717 СИДЕНЬЕ, ПАССАЖИРСКОЕ (INCLS 2-55) (EBONY) N1 (AG2, AR9, KA1, 193) (EXC HH3, RHD, Y92) 2009-2009 01
001 25832718 СИДЕНЬЕ, ПАССАЖИРСКОЕ (INCLS 2-55) (CASHMERE) N1 (AG2, AR9, KA1, 313) (EXC HH3, RHD, Y92) 2009-2009 01
001 25832719 СИДЕНЬЕ, ПАССАЖИРСКОЕ (INCLS 2-55) (MOROCCO) N1 (AG2, AR9, KA1, 423) (EXC HH3, RHD, Y92) 2009-2009 01
001 25832725 СИДЕНЬЕ, ПАССАЖИРСКОЕ (INCLS 2-55) (EBONY) N1 (AG2, AR9, KA1, Y92, 193) (EXC RHD) 2009-2009 01
001 25832726 СИДЕНЬЕ, ПАССАЖИРСКОЕ (INCLS 2-55) (CASHMERE) N1 (AG2, AR9, KA1, Y92, 313) (EXC RHD) 2009-2009 01
001 25832727 СИДЕНЬЕ, ПАССАЖИРСКОЕ (INCLS 2-55) (MORROCO) N1 (AG2, AR9, KA1, Y92, 423) (EXC RHD) 2009-2009 01
002 PAD, P/SEAT H/RST (PART OF 3) 2006-2009
003 25832962 RESTRAINT, P/SEAT HD (INCLS 2) (EBONY) N1 (AG2, AR9, RHD, 193) (EXC HH3, Y92) (EXPORT) 2008-2009 01
003 25832964 RESTRAINT, P/SEAT HD (INCLS 2) (MOROCCO) N153 (06) (AG2, AR9, KA1, 423) (EXC HH3, Y92) 2008-2009 01
003 25832966 RESTRAINT, P/SEAT HD (INCLS 2) (EBONY) N153 (06) (AG2, AR9, HH3, KA1, 193) (EXC RHD, Y92) 2009-2009 01
003 25832967 RESTRAINT, P/SEAT HD (INCLS 2) (CASHMERE) N153 (06) (AG2, AR9, HH3, KA1, 313) (EXC RHD, Y92) 2009-2009 01
003 25832968 RESTRAINT, P/SEAT HD (INCLS 2) (MOROCCO) N153 (06) (AG2, AR9, HH3, KA1, 423) (EXC RHD, Y92) 2009-2009 01
003 25832970 RESTRAINT, P/SEAT HD (INCLS 2) (EBONY) N1 (AG2, AR9, KA1, Y92, 193) (EXC RHD) 2009-2009 01
003 25832971 RESTRAINT, P/SEAT HD (INCLS 2) (CASHMERE) N1 (AG2, AR9, KA1, Y92, 313) (EXC RHD) 2009-2009 01
003 25832972 RESTRAINT, P/SEAT HD (INCLS 2) (MORROCO) N1 (AG2, AR9, KA1, Y92, 423) (EXC RHD) 2009-2009 01
004 10388085 PAD, P/SEAT BK CUSH N1 (AR9) 2006-2009 01
005 15846589 HEATER, P/SEAT BK CUSH (INCL SERVICEABLE HELAG HTR CONT MODULE 15846630) N153 (06) 2006-2009 01
006 25807332 COVER, P/SEAT BK CUSH (EBONY) N153 (06) (AG2, AR9, KA1, 193) (EXC RHD) 2008-2009 01
006 25807333 COVER, P/SEAT BK CUSH (CASHMERE) N153 (06) (AG2, AR9, KA1, 313) (EXC RHD, Y92) 2008-2009 01
006 25807334 COVER, P/SEAT BK CUSH (MOROCCO) N153 (06) (AG2, AR9, KA1, 423) (EXC RHD) 2008-2009 01
007 20799910 COVER, P/SEAT CUSH (CASHMERE) N153 (06) (AG2, AR9, KA1, 313) (EXC RHD) 2009-2009 01
007 20799911 COVER, P/SEAT CUSH (MOROCCO) N153 (06) (AG2, AR9, KA1, 423) (EXC RHD) 2009-2009 01
007 24301126 COVER, P/SEAT CUSH (EBONY) N153 (06) (AG2, AR9, KA1, RHD, 193) (EXPORT) 2009-2009 01
007 24301127 COVER, P/SEAT CUSH (CASHMERE) N153 (06) (AG2, AR9, KA1, RHD, 313) (EXPORT) 2009-2009 01
007 24301128 COVER, P/SEAT CUSH (MOROCCO) N153 (06) (AG2, AR9, KA1, RHD, 423) (EXPORT) 2009-2009 01
007 25807639 COVER, P/SEAT CUSH (EBONY) N1 (AG2, AR9, KA1, 193) (EXC RHD) 2009-2009 01
007 25807640 COVER, P/SEAT CUSH (CASHMERE) N1 (AG2, AR9, KA1, 313) (EXC RHD) 2009-2009 01
007 25807641 COVER, P/SEAT CUSH (MOROCCO) N1 (AG2, AR9, KA1, 423) (EXC RHD) 2009-2009 01
008 25810340 HEATER, P/SEAT CUSH (INCL SERVICEABLE HELAG HTR CONT MODULE 15846630) (ELEMENT) N1 2007-2009 01
009 RETAINER, INFL RST FRT PASS PRESENCE (*KIT1) 2006-2009
010 ДАТЧИК, INFL RST FRT PASS PRESENCE (*KIT1) 2006-2009
011 PAD, P/SEAT CUSH (*KIT1) 2006-2009
012 19209036 РЕМЕНЬ, P/SEAT (BKL SI) (EBONY) N1 (193, 313, 423) 2006-2009 01
013 11569882 БОЛТ, P/SEAT BELT (BKL SI) N1 (RHD) (EXPORT) 2007-2009 01
014 12474329 БОЛТ, P/SEAT RECL (M8X1.25X30) (16.679) N1 2006-2009 AR
015 89042772 БОЛТ, F/SEAT (PANEL SIDE) (M8X1.25X28) (16.682) N1 2006-2009 08
016 12377886 RECLINER, P/SEAT INR (NON-DUMP) N1 2006-2009 01
017 MODULE, INFL RST P/SEAT SUPPRESSION (*KIT1) 2006-2009
018 25971449 FRAME, P/SEAT CUSH (W/3 HOLES FOR HARNESS PUSH PINS) N153 (06) (AG2, AR9, RHD) 2007-2009 01
019 25810336 SWITCH, P/SEAT LUMBAR CONT (EBONY) (INCLS HEATER SWITCH) N1 (AG2, AR9, KA1) 2006-2009 01
020 11519940 БОЛТ, HEX W/CON WA, M12X1.75X34.5, 28 OD, 6202M, 4345M, TAP, TR-PT (F/SEAT) 2006-2009 AR
021 25885646 ADJUSTER, P/SEAT N1 (AG2, AR9) 2006-2009 01
022 11571250 БОЛТ, P/SEAT INFL RST SUPPRESSION MDL (M4.2X1.41X15.7, 11 OD) N1 2008-2009 03
023 89027041 ДАТЧИК, F/SEAT HORIZ ADJR POSN (EBONY) (INCLUDES BRACKET) (POWER SEATS) N1 (AG1, AG2) 2006-2009 02
024 89039182 NUT, F/SEAT ADJR TRK (HEX FLG LOCK) (16.679) N1 2006-2009 02
026 25971455 HARNESS, P/SEAT ADJR WRG N1 (AG2, AR9, 193, 313, 423) (EXC HH3, RHD) 2009-2009 01
026 25971455 HARNESS, P/SEAT ADJR WRG N153 (06) (AG2, AR9, HH3, 193, 313, 423) (EXC RHD, Y92) 2009-2009 01
026 25971458 HARNESS, P/SEAT ADJR WRG (CONNECTS W/PUSHPINS TO 3 HOLE CUSH FRAME) N1 (AG2, AR9, KA1, RHD) (EXPORT) 2009-2009 01
028 15208539 БОЛТ, P/SEAT RECL HDL (M4.2X1.4X20) (16.715) N1 2006-2009 AR
029 89041700 HANDLE, P/SEAT RECL (EBONY) (DOUBLE D RECL HANDLE) (O/B) N1 (AR9) 2006-2009 01
030 15254771 COVER, P/SEAT ADJR FIN (INCLS 31) (EBONY) (USED ON LEATHER SEATS) (16.720) N1 (AG2, AR9) 2006-2009 01
031 RETAINER, P/SEAT CUSH (PART OF 30) 2006-2009
032 89041630 BEZEL, P/SEAT ADJR SW (EBONY) N1 2006-2009 01
033 89026978 SWITCH, P/SEAT ADJR (EBONY) (W/HEAT) N1 (AG2, AR9, KA1) 2006-2009 01
034 89039103 RECLINER, P/SEAT OTR (NON-DUMP) N1 (AR9) 2006-2009 01
035 25906913 COVER, P/SEAT OTR ADJR FIN N1 (AG2) 2006-2009 01
036 25906912 COVER, P/SEAT INR ADJR FIN N1 (06) (AG2) 2006-2009 01
037 11609746 ГАЙКА, HFH, M8X1.25, 8.9THK, 17.6 O.D., 10 STL, GMW3200, PREV TORQUE (P/SEAT ADJR) 2006-2009 04
038 89027021 SPRING, P/SEAT CUSH PAD SUPT WIRE N1 2006-2009 01
039 15692668 SPRING, P/SEAT CUSH PAD SUPT N1 2006-2009 04
040 88979640 CABLE, P/SEAT RECL ACTR N1 (RHD) (EXPORT) 2007-2009 01
040 89042785 CABLE, P/SEAT RECL ACTR N1 2006-2009 01
041 10399318 COVER, P/SEAT OTR ADJR FRT FIN (EBONY) N1 2006-2009 01
042 10399307 COVER, P/SEAT OTR RECL FIN (EBONY) N1 2006-2009 01
043 10399304 COVER, P/SEAT INR RECL FIN (EBONY) (16.165) N1 2006-2009 01
044 10399315 COVER, P/SEAT INR ADJR FRT FIN (EBONY) N1 2006-2009 01
045 12493072 БОЛТ, P/SEAT (RECLINER CABLE) (M4.2X1.41X12.7) (14.875) N153 (06) 2006-2009 AR
047 88934562 SUPPORT, P/SEAT LUMBAR (2-WAY POWER) N1 (AG2, AR9) 2006-2009 01
048 10388082 FRAME, P/SEAT BK CUSH N1 2006-2009 01
049 15252123 RETAINER, P/SEAT CUSH (PART OF 51) (COVER) N1 2006-2009 02
049 89039183 RETAINER, P/SEAT CUSH (PART OF 51) (6MM) (NYLON, PUSH-IN TREE) (HARNESS) (2.480) N1 2006-2009 02
050 15252123 RETAINER, P/SEAT CUSH (PART OF 51) (COVER) N1 2006-2009 02
050 89039183 RETAINER, P/SEAT CUSH (PART OF 51) (6MM) (NYLON, PUSH-IN TREE) (HARNESS) (2.480) N1 2006-2009 02
051 15815905 PANEL, P/SEAT BK CUSH FIN (INCLS 49, 50) N1 2006-2009 01
052 15875355 POCKET, P/SEAT BK CUSH MAP (EBONY) N1 2006-2009 01
053 10399280 SUPPORT, P/SEAT H/RST (EBONY) (SLAVE) N1 (19I) 2006-2009 01
053 10399280 SUPPORT, P/SEAT H/RST (EBONY) (SLAVE) N1 (31I) 2006-2009 01
053 10399292 SUPPORT, P/SEAT H/RST (EBONY) (MASTER) (LOCKING) N1 (19I) 2006-2009 01
053 19122097 SUPPORT, P/SEAT H/RST (CASHMERE) (SLAVE) N1 (31I) 2006-2009 01
053 19122098 SUPPORT, P/SEAT H/RST (CASHMERE) (MASTER) (LOCKING) N1 (31I) 2006-2009 01
054 12548913 RIVET, P/SEAT LUMBAR SUPT (3/16) (16.682) N153 (06) 2006-2009 02
055 89046281 RING, F/SEAT CUSH CVR HOG (15.035) N153 2006-2009 AR
K01 15299598 MODULE KIT, INFL RST FRT PASS PRESENCE (W/ SEN) (INCLS 9-11, 17) (POWER) (W/PAD) N153 (06) (AR9, AG2, KA1) 2006-2009 01
