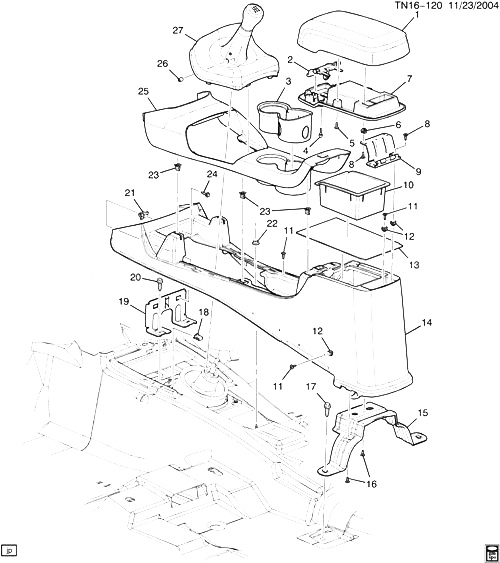

(TN16-120) - 2009-2010 N1 КОНСОЛЬ-ПОЛ (MANUAL TRANSMISSION MA5, EXC RHD) HUMMER - H3 SUV 2009

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15111830 ДВЕРЬ, F/FLR CNSL COMPT (W/A/RST) (INCLS 2, 4-9) (EBONY) N1 (YC0, 19I, 31I, 32I) 2006-2010 01
001 21997041 ДВЕРЬ, F/FLR CNSL COMPT (W/A/RST) (INCLS 2, 4-9) (EBONY) N1 (YC3, 19I) 2006-2010 01
001 21997042 ДВЕРЬ, F/FLR CNSL COMPT (W/A/RST) (INCLS 2, 4-9) (MOROCCO) N1 (YC3) 2006-2010 01
001 21997042 ДВЕРЬ, F/FLR CNSL COMPT (W/A/RST) (INCLS 2, 4-9) (MOROCCO) N1 (YC3, 42I) 2006-2010 01
001 21997043 ДВЕРЬ, F/FLR CNSL COMPT (W/A/RST) (INCLS 2, 4-9) (CASHMERE) N1 (YC3, 31I) 2006-2010 01
002 15111834 LATCH, F/FLR CNSL COMPT DR (PART OF 1) N1 2006-2010 01
003 15783110 LINER, F/FLR CNSL CUP HLDR (PART OF 25) (EBONY) N1 2006-2010 01
004 15683368 BUMPER, F/FLR CNSL COMPT DR (PART OF 1) (8.80 DIA) (CLOSED-STOP) (FRAME) N1 2009-2010 02
005 11609539 SCREW, RD CROWNED WA HD, M4.2X1.41X16, STL ISO 2702, GMW4205 (PART OF 1) 2006-2010 04
006 11517228 NUT, PANEL, M4.2X1.41, 8.5X11.9, 2.3-2.8 THICK PNL, FITS 11.2X9.2 HOLE 1050, 4250M (PART OF 1) 2006-2010 03
007 PLATE, F/FLR CNSL COMPT DR ANC (PART OF 1) 2009-2010
008 11609539 SCREW, RD CROWNED WA HD, M4.2X1.41X16, STL ISO 2702, GMW4205 (PART OF 1, 14) 2006-2010 06
009 15174863 HINGE, F/FLR CNSL COMPT DR (PART OF 1) N1 2006-2010 01
010 25814236 TRAY, F/FLR CNSL STOR (PART OF 14) (EBONY) N1 (19I, 31I) 2007-2010 01
010 25814236 TRAY, F/FLR CNSL STOR (PART OF 14) (EBONY) N1 (19I, 31I, 42I) 2007-2010 01
011 11609539 SCREW, RD CROWNED WA HD, M4.2X1.41X16, STL ISO 2702, GMW4205 (PART OF 14) 2006-2010 12
012 11517228 NUT, PANEL, M4.2X1.41, 8.5X11.9, 2.3-2.8 THICK PNL, FITS 11.2X9.2 HOLE 1050, 4250M (PART OF 14) 2006-2010 15
013 15111827 LINER, F/FLR CNSL STOR TRAY (PART OF 14) (EBONY) N1 (19I, 31I) 2006-2010 01
013 15111827 LINER, F/FLR CNSL STOR TRAY (PART OF 14) (EBONY) N1 (19I, 31I, 42I) 2006-2010 01
014 25814234 CONSOLE, F/FLR (INCLS 8, 10-13, 15, 16, 21, 24) (EBONY) N1 (19I) (EXC RHD) 2007-2010 01
014 25814234 CONSOLE, F/FLR (INCLS 8, 10-13, 15, 16, 21, 24) (EBONY) N1 (19I, 42I) (EXC RHD) 2007-2010 01
014 25814235 CONSOLE, F/FLR (INCLS 8, 10-13, 15, 16, 21, 24) (CASHMERE) N1 (31I) 2007-2010 01
014 25815273 CONSOLE, F/FLR (INCLS 8, 10-13, 15, 16, 21, 24) (NO FINISH) N1 (EXC RHD) 2007-2010 01
015 BRACKET, F/FLR CNSL RR (PART OF 14) 2009-2010
016 11609459 SCREW, RND WA, M4.2X1.41X13, 7.2 THD, 11.35 OD, 6010M, GMW4205 (PART OF 14) 2006-2010 05
017 11519940 БОЛТ, HEX W/CON WA, M12X1.75X34.5, 28 OD, 6202M, 4345M, TAP, TR-PT (D/SEAT) 2006-2010 04
017 11519940 БОЛТ, HEX W/CON WA, M12X1.75X34.5, 28 OD, 6202M, 4345M, TAP, TR-PT (P/SEAT) 2006-2010 04
018 11516372 ГАЙКА, U-TYPE, M5X1, MULTI THD, 2.0-5.0 PNL THK, PZ (F/FLR CNSL BRKT) 2006-2010 02
019 15124901 BRACKET, F/FLR CNSL FRT N1 2006-2010 01
020 11561674 БОЛТ, HEX W/FL WA, M6X1X20, 12 THD, 24 OD, 9.8, GMW3359, M-PT (F/FLR CNSL BRKT) 2006-2010 02
021 11588650 CLIP, 12X14X16.6, GM4345M (PART OF 14) 2006-2010 02
022 11609411 ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (F/FLR CNSL BRKT) 2006-2010 01
023 11588650 CLIP, 12X14X16.6, GM4345M (PART OF 25) 2006-2010 06
024 11589012 БОЛТ, HWH, M4.2X1.41X25, 16.4 THD, 12.5 OD, GM6010M STL, GMW4205 (PART OF 14) (9.665) 2006-2010 02
025 15783113 PLATE, F/FLR PNL (INCLS 3, 23) (EBONY) N1 (06) (MA5) 2006-2010 01
025 25795885 PLATE, F/FLR PNL (INCLS 3, 23) N1 2007-2010 01
026 11589237 SCREW, SET, 3/8-24 UNF, 1/2 LENGTH (PART OF 27) 2006-2010 01
027 15818700 LEVER, M/TRNS CONT (INCLS 26) N1 (MA5) 2006-2009 01
