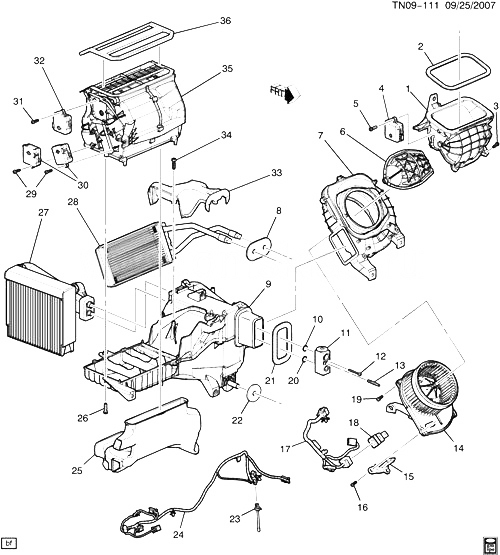

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15850033 |
INLET, AIR (AT ВЕНТИЛЯТОР MOTOR) |
N153 (06) (RHD) |
2007-2010 |
01 |
| 002 |
|
SEAL, AIR INL (*KIT2) |
|
2009-2010 |
|
| 003 |
11561840 |
БОЛТ, AIR DISTR CASE (9.211)
| N1 |
2007-2010 |
04 |
|
| 004 |
10397102 |
ACTUATOR, AIR INL VLV (ACDelco #15-73199) |
N1 |
2007-2010 |
01 |
| 005 |
11561840 |
БОЛТ, AIR INL VLV ACTR (9.211)
| N1 |
2007-2010 |
03 |
|
| 006 |
15850034 |
VALVE, AIR INL |
N1 (RHD) (EXPORT) |
2007-2010 |
01 |
| 007 |
15850041 |
BAFFLE, AIR INL HSG |
N1 (RHD) (EXPORT) |
2007-2010 |
01 |
| 008 |
|
SEAL, HTR CORE (*KIT2) |
|
2009-2010 |
|
| 009 |
15850038 |
CASE, A/C EVPR LWR (ACDelco #15-81103) |
N153 (06) (RHD) (EXPORT) |
2007-2010 |
01 |
| 010 |
89019245 |
SEAL, A/C EVPR FTG (O RING) (23.5 OD X 15.5MM ID) (*KIT1) (ACDelco #15-33898) |
N1 |
2008-2010 |
01 |
| 011 |
|
VALVE, A/C EVPR THERMAL EXPN (*KIT1) |
|
2009-2010 |
|
| 012 |
11561841 |
БОЛТ, A/C EVPR TXV (*KIT1) |
N1 |
2007-2010 |
02 |
| 013 |
11561839 |
STUD, A/C EVPR HOSE (*KIT1) (9.190) |
N1 |
2007-2010 |
01 |
| 014 |
15850032 |
MOTOR, BLO (9.215) (ACDelco #15-81102) |
N1 (RHD) (EXPORT) |
2007-2010 |
01 |
| 014 |
15850032 |
MOTOR, BLO (ACDelco #15-81102) |
N1 (RHD) (EXPORT) |
2007-2010 |
01 |
| 015 |
10397098 |
RESISTOR, BLO MOT (9.215) (ACDelco #15-80647) |
N1 |
2007-2010 |
01 |
| 015 |
10397098 |
RESISTOR, BLO MOT (ACDelco #15-80647) |
N1 |
2007-2010 |
01 |
| 016 |
11561840 |
БОЛТ, BLO MOT RES (9.211)
| N1 |
2007-2010 |
02 |
|
| 017 |
15850040 |
HARNESS, BLO MOT RES |
N1 (RHD) |
2007-2009 |
01 |
| 018 |
12088594 |
RELAY, MULTIUSE (1 BOLT HOLE, 5 TERM, SKIRTED) (4.720) (ACDelco #12088594) |
N1 |
2007-2010 |
01 |
| 018 |
12088596 |
RELAY, MULTIUSE (4.720) |
N1 |
2008-2010 |
01 |
| 019 |
11561840 |
БОЛТ, BLO MOT (9.211)
| N1 |
2009-2010 |
03 |
|
| 020 |
52474373 |
SEAL, A/C EVPR FTG (O RING) (METAL/RUBBER) (19MM OD X 11MM ID, 1/2 IN DIA) (*KIT1) (ACDelco #15-31055)
| N153 (06) |
2007-2010 |
01 |
|
| 021 |
|
SEAL, A/C EVPR TUBE (*KIT2) |
|
2009-2010 |
|
| 022 |
|
SEAL, HTR ; A/C EVPR ; BLO MDL DRN TUBE (*KIT2) |
|
2009-2010 |
|
| 023 |
10397366 |
ДАТЧИК, A/C REFRIG TEMP (ACDelco #15-50442) |
N1 |
2007-2010 |
01 |
| 024 |
15850042 |
HARNESS, A/C MDL WRG |
N1 (RHD) (EXPORT) |
2007-2009 |
01 |
| 025 |
15850039 |
DUCT, FLR AIR OTLT |
N1 (RHD) (EXPORT) |
2007-2010 |
01 |
| 026 |
11561840 |
БОЛТ, A/C EVPR CASE
| N1 |
2007-2010 |
09 |
|
| 027 |
25827406 |
EVAPORATOR, A/C (ACDelco #15-63538) |
N153 (06) (RHD) (EXPORT) |
2007-2010 |
01 |
| 028 |
15850037 |
HEATER, (ACDelco #15-63537) |
N1 (RHD) (EXPORT) |
2007-2010 |
01 |
| 028 |
15850037 |
HEATER, (8.845) (ACDelco #15-63537) |
N1 (RHD) (EXPORT) |
2007-2010 |
01 |
| 029 |
11561840 |
БОЛТ, TEMP VLV ACTR (9.211)
| N1 |
2007-2010 |
06 |
|
| 030 |
10397365 |
ACTUATOR, TEMP VLV (ACDelco #15-73200) |
N1 |
2007-2010 |
AR |
| 031 |
11561840 |
БОЛТ, MODE VLV ACTR (9.211)
| N1 |
2007-2010 |
03 |
|
| 032 |
10397365 |
ACTUATOR, MODE VLV (ACDelco #15-73200) |
N1 |
2007-2010 |
01 |
| 033 |
15850036 |
COVER, HTR |
N153 (06) (RHD) (EXPORT) |
2007-2010 |
01 |
| 034 |
11561840 |
БОЛТ, HTR CVR (9.211)
| N1 |
2007-2010 |
02 |
|
| 035 |
15816000 |
CASE, AIR DISTR |
N1 (RHD) (EXPORT) |
2007-2010 |
01 |
| 036 |
|
SEAL, AIR DISTR CASE (*KIT2) |
|
2009-2010 |
|
| K01 |
15871702 |
VALVE KIT, A/C EVPR THERMAL EXPN (INCLS 10-13, 20) (ACDelco #15-50691) |
N1 |
2009-2010 |
01 |
| K02 |
15837387 |
SEAL KIT, AIR DISTR (INCLS 2, 8, 21, 22, 36) |
N1 |
2007-2010 |
01 |
