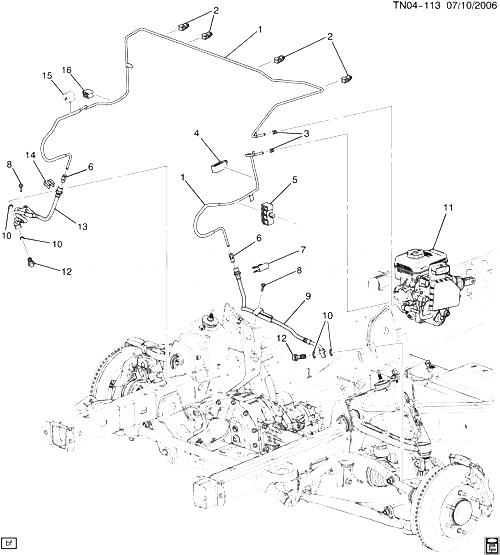

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
88983905 |
PIPE, BRK (3/16 X 16 FT) (BULK TUBING) (NYLON COATING)
| N1 |
2006-2010 |
AR |
|
| 002 |
11570944 |
CLIP, BRK PIPE (NATURAL/GREY) (HOLDS 4.76 DIA TUBE, FITS 6.25-6.58 DIA HOLE IN 0.6 THK PNL) |
N1 (EXC RHD) |
2008-2010 |
04 |
| 003 |
15170399 |
NUT, FRT BRK PIPE (M10X1.0, 16.0 THK) |
N1 |
2006-2010 |
02 |
| 004 |
15103327 |
CLIP, BRK PIPE (HOLDS 3 BRAKE LINES) |
N1 |
2006-2010 |
01 |
| 005 |
15163617 |
CLIP, BRK PIPE (3-WAY) |
N1 |
2006-2010 |
01 |
| 006 |
15787533 |
NUT, FRT BRK PIPE (M10X1.0, 25.5 THK) |
N1 |
2006-2010 |
01 |
| 007 |
97162347 |
CLIP, BRK HOSE (PART OF 9) |
N1 |
2006-2010 |
02 |
| 008 |
11561674 |
БОЛТ, HEX W/FL WA, M6X1X20, 12 THD, 24 OD, 9.8, GMW3359, M-PT (PART OF 9, 13)
|
2006-2010 |
02 |
|
| 009 |
15869084 |
HOSE, FRT BRK (INCLS 7, 8, 10, 12) (ACDelco #176-1466)
| N1 |
2006-2010 |
01 |
|
| 010 |
21012386 |
WASHER, FRT BRK HOSE (PART OF 9, 13) (10.3X14.5X1.61) (COPPER) (ACDelco #21012386)
| N1 |
2006-2010 |
02 |
|
| 011 |
25939759 |
CYLINDER, BRK MAS (W/ P/B BOOS ; CHAS CONT MDL) (SEE GROUP 04.000 ГЛАВНЫЙ ТОРМОЗНОЙ ЦИЛИНДР FOR DETAILED ILLUSTRATED VIEW) |
N153 (06) |
2009-2010 |
01 |
| 011 |
25939759 |
CYLINDER, BRK MAS (W/ P/B BOOS ; CHAS CONT MDL) (SEE GROUP 04.000 ГЛАВНЫЙ ТОРМОЗНОЙ ЦИЛИНДР FOR DETAILED ILLUSTRATED VIEW) |
N155 (43) |
2009-2010 |
01 |
| 012 |
11569669 |
БОЛТ, FRT BRK HOSE (PART OF 9, 13) (M10X1.5X23, 13THD) (11MM SOCKET) |
N1 |
2006-2010 |
02 |
| 013 |
15869085 |
HOSE, FRT BRK (INCLS 8, 10, 12, 14)
| N1 |
2006-2010 |
01 |
|
| 014 |
11569742 |
RETAINER, FRT BRK HOSE (PART OF 13) (1 SIDED RETAINER)
| N1 |
2009-2010 |
01 |
|
| 015 |
25553759 |
INSULATOR, FRT BRK PIPE (20MM DIA, 15MM LONG) |
N1 |
2006-2010 |
01 |
| 016 |
15163616 |
CLIP, BRK PIPE (PUSH-IN, HOLDS 1 BRAKE LINE) |
N1 |
2006-2010 |
01 |
