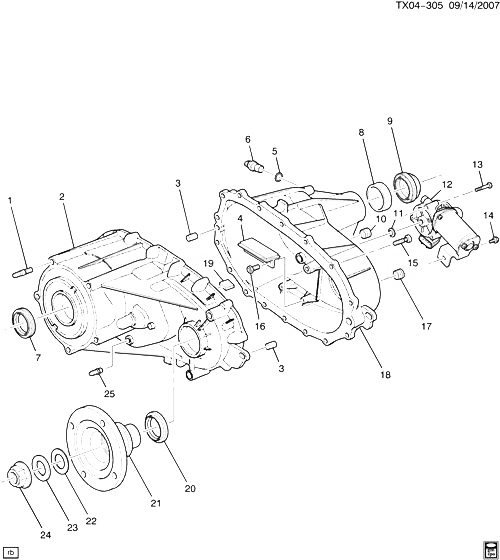

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
89059522 |
STUD, TRFER CASE ADAP (PART OF 2) |
N1 (NR4, NR6) |
2006-2010 |
05 |
| 002 |
19177647 |
CASE, TRFER (FRT HALF) (INCLS 1, 3, 7, 20) |
N1 (NR4, NR6) |
2006-2010 |
01 |
| 003 |
88984499 |
PIN, TRFER CASE HALF LOC (PART OF 2) |
N1 (NR4, NR6) |
2006-2010 |
02 |
| 004 |
19151456 |
SNUBBER, TRFER CASE FRT OUTPUT SHF DRV CHAIN (PART OF 18) |
N1 (NR4, NR6) |
2006-2010 |
01 |
| 005 |
88984510 |
SEAL, VEH SPD SEN HOLE PLUG (O RING) (PART OF 6) |
N1 |
2006-2010 |
01 |
| 006 |
12376520 |
ДАТЧИК, TRFER CASE RR OUTPUT SHF SPD (INCLS 5) (2-WAY MALE) (3.682) (ACDelco #213-347)
| N1 |
2006-2010 |
01 |
|
| 007 |
88996656 |
SEAL, TRFER CASE INPUT SHF (PART OF 2)
| N1 (NR4, NR6) |
2006-2010 |
01 |
|
| 008 |
19132802 |
BUSHING, TRFER CASE RR EXTN (PART OF 18)
| N1 (NR4, NR6) |
2006-2010 |
01 |
|
| 009 |
89059495 |
SEAL, TRFER CASE RR OUTPUT SHF
| N1 (NR4, NR6) |
2006-2010 |
01 |
|
| 010 |
88984495 |
PLUG, TRFER CASE OIL FILL
| N1 (NR4, NR6) |
2006-2010 |
01 |
|
| 011 |
88984494 |
SEAL, TRFER CASE SHFT DTNT LVR (PART OF 18)
| N1 (NR4, NR6) |
2006-2010 |
01 |
|
| 012 |
19167720 |
ACTUATOR, TRFER CASE FOUR WHL DRV
| N1 (NR4, NR6) |
2006-2010 |
01 |
|
| 013 |
88984514 |
БОЛТ, TRFER CASE FOUR WHL DRV ACTR (M6X1.0X40.0) (W/O LOCTITE PATCH) (4.510) |
N1 (NR4, NR6) |
2006-2010 |
03 |
| 014 |
88984513 |
БОЛТ, TRFER CASE (M6X1.0X15.0) |
N1 (NR4, NR6) |
2006-2010 |
01 |
| 015 |
89059524 |
БОЛТ, TRFER CASE HALF (M8X1.25X43.0) |
N1 (NR4, NR6) |
2006-2010 |
16 |
| 016 |
88996680 |
БОЛТ, TRFER CASE FRT OUTPUT SHF DRV CHAIN SNBR (PART OF 18) (M5X0.8X16) |
N1 (NR4, NR6) |
2006-2010 |
02 |
| 017 |
88984495 |
PLUG, TRFER CASE OIL DRN
| N1 (NR4, NR6) |
2006-2010 |
01 |
|
| 018 |
19151454 |
CASE, TRFER (RR HALF) (INCLS 4, 8, 11, 16) (W/RR BUSHING ; SNUBBER)
| N1 (LLR, NR4, NR6) |
2008-2009 |
01 |
|
| 019 |
15580300 |
MAGNET, TRFER CASE CHIP COLLECTOR (25.40X19.05X5.59MM) |
N1 (NR4, NR6) |
2006-2010 |
01 |
| 020 |
89059515 |
SEAL, TRFER CASE FRT OUTPUT SHF (PART OF 2)
| N1 (NR4, NR6) |
2006-2010 |
01 |
|
| 021 |
19180398 |
FLANGE, TRFER CASE FRT OUTPUT SHF (INCLS 22) |
N1 (NR4, NR6) |
2009-2010 |
01 |
| 022 |
89059528 |
SLINGER, TRFER CASE FRT OUTPUT SHF OIL (PART OF 21) |
N1 (NR4, NR6) |
2006-2010 |
01 |
| 023 |
15580315 |
WASHER, TRFER CASE FRT OUTPUT SHF CLU GR THR (FLAT) (PL, STL) (7/8 I.D. X 1 39/64 O.D., 1/8 THK) (4.510) |
N1 (NR4, NR6) |
2006-2010 |
01 |
| 024 |
89059523 |
NUT, TRFER CASE OUTPUT SHF BRG |
N1 (NR4, NR6) |
2006-2010 |
01 |
| 025 |
15580319 |
VENT, TRFER CASE |
N1 (NR4, NR6) |
2006-2010 |
01 |
