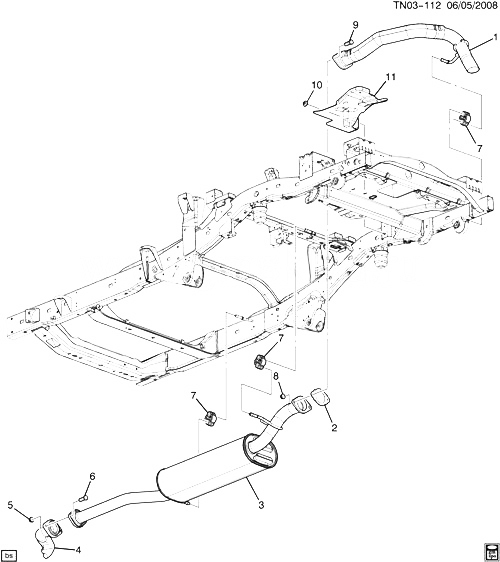

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
94700609 |
PIPE, EXH MUFF RR (INCLS 9) |
N155 (43) |
2009-2010 |
01 |
| 002 |
15036012 |
GASKET, EXH MANIF PIPE
| N155 (43) |
2009-2010 |
01 |
|
| 003 |
94730233 |
MUFFLER, EXH (W/EXH PIPE) (INCLS 6) (3.701) |
N155 (43) (LLR) |
2009-2010 |
01 |
| 003 |
94730233 |
MUFFLER, EXH (W/EXH PIPE) (INCLS 6) |
N155 (43) (LLR) |
2009-2010 |
01 |
| 004 |
25863674 |
CONVERTER, 3WAY CTLTC (W/EXH MANIF PIPE) (SEE GROUP 03.000 СИСТЕМА ОТРАБОТАВШИХ ГАЗОВ FRONT FOR DETAILED ILLUSTRATED VIEW) (3.685) |
N1 (LLR, JJA) |
2009-2009 |
01 |
| 004 |
25863674 |
CONVERTER, 3WAY CTLTC (W/EXH MANIF PIPE) (SEE GROUP 03.000 СИСТЕМА ОТРАБОТАВШИХ ГАЗОВ FRONT FOR DETAILED ILLUSTRATED VIEW) |
N1 (LLR, JJA) |
2009-2009 |
01 |
| 005 |
15709703 |
ГАЙКА, HEX 10X1.5THD, 21.8 OD SS (EXH MANIF PIPE)
|
2009-2010 |
02 |
|
| 006 |
15756879 |
STUD, EXH PIPE (PART OF 3) (M10X1.5X40MM) (BUTTON HEAD) (3.690) |
N155 (43) |
2009-2010 |
02 |
| 007 |
15120136 |
INSULATOR, EXH PIPE HNGR |
N155 (43) (LH8, LLR) |
2009-2009 |
AR |
| 008 |
15709703 |
ГАЙКА, HEX 10X1.5THD, 21.8 OD SS (EXH MANIF PIPE)
|
2009-2010 |
02 |
|
| 009 |
15756879 |
STUD, EXH PIPE (PART OF 1) (M10X1.5X40MM) (BUTTON HEAD) (3.690) |
N155 (43) |
2009-2010 |
02 |
| 010 |
11561645 |
ГАЙКА, HFH, M6X1X6.45, 13.5 OD, 10 STL, GMW3200 (INFL RST SEN ; DIAGN MDL) |
|
2009-2010 |
03 |
| 011 |
93355794 |
SHIELD, EXH TAIL PIPE HT |
N155 (43) (LH8, LLR) |
2009-2009 |
01 |
