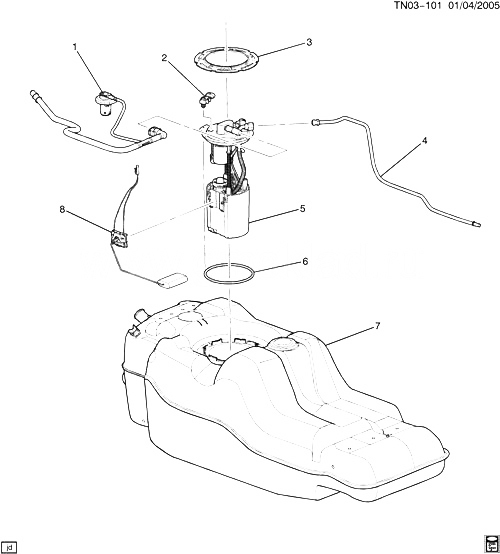

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
|
HOSE, EVAP EMIS (PART OF 7) |
|
2009-2009 |
|
| 002 |
13502903 |
ДАТЧИК, F/TNK PRESS (ACDelco #13502903)
| N1 (LH8, LLR) |
2009-2009 |
01 |
|
| 003 |
10325852 |
CAM, FUEL SDR (130 MM OPENING CAM LOCK RING) (3.115) (ACDelco #TR26)
| N1 |
2006-2010 |
01 |
|
| 004 |
25896785 |
PIPE, FUEL FEED |
N153 (06) (LH8, LLR) |
2009-2009 |
01 |
| 005 |
19207848 |
MODULE KIT, F/TNK F/PMP (W/O FUEL LVL SEN) (INCLS 6) (ACDelco #M10229) |
N153 (06) (LH8, LLR) |
2009-2009 |
01 |
| 005 |
19207848 |
MODULE KIT, F/TNK F/PMP (W/O FUEL LVL SEN) (INCLS 6) (3.107) (ACDelco #M10229) |
N153 (06) (LH8, LLR) |
2009-2009 |
01 |
| 006 |
22682111 |
SEAL, FUEL SDR (O RING) (PART OF 5, 8) (135.5 MM ID X 147.5MM OD X 6MMTALL) (ACDelco #G41)
| N1 |
2006-2010 |
01 |
|
| 007 |
|
TANK, FUEL (INCLS 1) |
|
2006-2010 |
|
| 007 |
15833001 |
TANK, FUEL (INCLS 1) |
N153 (06) (LH8, LLR) |
2009-2009 |
01 |
| 008 |
19207849 |
SENSOR KIT, FUEL LVL (INCLS 6) (ACDelco #SK1326) |
N153 (06) (LH8, LLR) |
2009-2009 |
01 |
