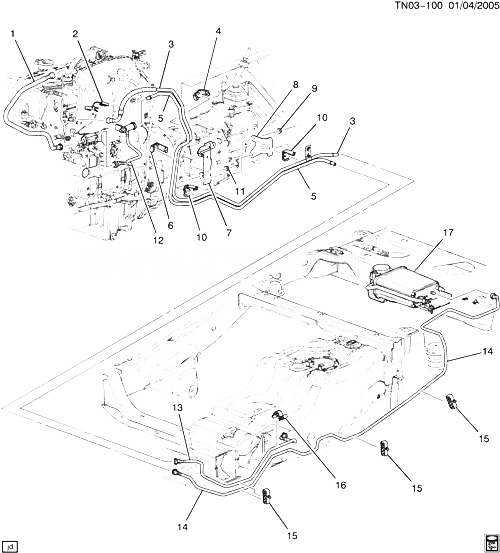

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
12577221 |
TUBE, EVAP EMIS CNSTR PURGE |
N1 (LLR) |
2007-2010 |
01 |
| 002 |
25654373 |
CLIP, FUEL FEED ; RTN HOSE (PART OF 3) (PLASTIC) |
N1 (LLR, JJA) |
2008-2010 |
01 |
| 003 |
15885442 |
PIPE, FUEL FEED (INCLS 2)
| N1 (LLR, JJA) |
2009-2009 |
01 |
|
| 004 |
15080400 |
CLIP, FUEL FEED ; EVAP EMIS PIPE (TWO TUBE) |
N1 (LLR, JJA) |
2009-2009 |
01 |
| 005 |
15080397 |
PIPE, EVAP EMIS |
N1 (LLR, JJA) |
2008-2010 |
01 |
| 006 |
15080402 |
CLIP, FUEL FEED ; EVAP EMIS PIPE (2 LINE REATINER WITH PUSH IN CLIP) |
N1 (LLR, JJA) |
2009-2009 |
01 |
| 007 |
15131554 |
BRACKET, FUEL PIPE |
N1 (06-43) (LLR, JJA) |
2009-2009 |
01 |
| 008 |
15080373 |
BRACKET, FUEL PIPE |
N1 (LLR, MA5, JJA) |
2009-2009 |
01 |
| 009 |
11514596 |
ГАЙКА, HFH, M8X1.25, 17.9 OD, 738 THK, 13MM HEX, 10, ZF (FUEL FEED FRT PIPE) (8.915) (ACDelco #11514596) |
|
2006-2010 |
02 |
| 010 |
15080401 |
CLIP, FUEL FEED ; EVAP EMIS PIPE (2 LINE RETAINER LESS PUSH IN CLIP) |
N1 (LLR, JJA) |
2008-2009 |
01 |
| 011 |
11514596 |
ГАЙКА, HFH, M8X1.25, 17.9 OD, 738 THK, 13MM HEX, 10, ZF (FUEL PIPE BRKT) (8.915) (ACDelco #11514596) |
|
2006-2010 |
02 |
| 012 |
15850249 |
PIPE, EVAP EMIS |
N1 (LLR, JJA) |
2008-2009 |
01 |
| 013 |
15086256 |
PIPE, FUEL FEED (RR PIPE)
| N153 (06) (LLR) |
2009-2009 |
01 |
|
| 014 |
15086262 |
PIPE, EVAP EMIS |
N153 (06) (LLR) |
2009-2010 |
01 |
| 015 |
15163622 |
CLIP - HOLDS (2) DIA9.52 FUEL LINE AND (2) DIA5.17 BRAKELINE, PRONG (BRK ; FUEL PIPE) |
|
2006-2010 |
06 |
| 016 |
15170398 |
CLIP, BRK ; FUEL PIPE (RETAINS TWO DIA9.5 AND TWO DIA5.19 BRAKELINES) (4.686) |
N1 |
2006-2009 |
01 |
| 016 |
15170398 |
CLIP, BRK ; FUEL PIPE (RETAINS TWO DIA9.5 AND TWO DIA5.19 BRAKELINES) |
N1 |
2006-2009 |
01 |
| 017 |
|
CANISTER, EVAP EMIS (SEE GROUP 03.000 VAPOR CANISTER LINES ; CANISTER FOR DETAILED ILLUSTRATED VIEW) |
|
2006-2010 |
|
