| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |

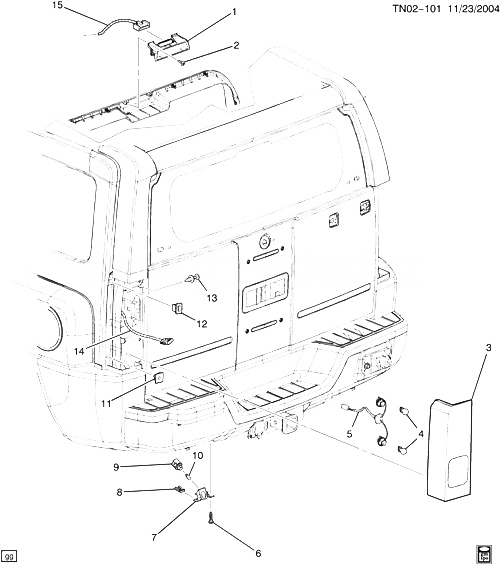

| 001 |
10357891 |
LAMP, HIGH MT STOP
| N153 (06) (EXC BRM) |
2007-2010 |
01 |
|
| 002 |
11509231 |
SCREW, RD HD C/R TAP, M4.2X1.41X13.0, GM6010M STL, GM813M NICKEL ORGANIC (HIGH MT S/LP)
|
2006-2010 |
02 |
|
| 003 |
15823509 |
LAMP, TAIL (INCLS 4, 5)
| N153 (06) (EXC T89) |
2007-2010 |
01 |
|
| 003 |
15823510 |
LAMP, TAIL (INCLS 4, 5)
| N153 (06) (EXC T89) |
2007-2010 |
01 |
|
| 004 |
12450108 |
BULB, TRADE #3157KX (PART OF 3) (2.679) (ACDelco #3157KX) (LONGER LIFE KRYPTON)
|
2006-2010 |
04 |
|
| 005 |
10395344 |
HARNESS, T/LP WRG (1LH, 1RH) (PART OF 3)
| N153 (06) (EXC T89) |
2007-2010 |
02 |
|
| 006 |
11589015 |
БОЛТ, HWH W/FL WA M4.2X1.41X20, 12.5 O.D., DOG PT, 6010M, 7253M (RR LIC PLT LP)
|
2006-2010 |
02 |
|
| 007 |
15873660 |
LAMP, RR LIC PLT (INCLS 8-10) |
N153 (06) (EXC BRM) |
2007-2010 |
01 |
| 008 |
25605716 |
NUT, RR LIC PLT LP (PART OF 7) (13.8 X 14.9, 15.3) (U-SHAPED) (8.133) |
N153 (06) |
2008-2010 |
02 |
| 009 |
|
SOCKET, RR LIC PLT LP (PART OF 7) |
|
2007-2010 |
|
| 010 |
09421330 |
BULB, TRADE#194, 12V, 2CP (PART OF 7) (ACDelco #L194) |
|
2006-2010 |
01 |
| 011 |
11609535 |
RETAINER, T/LP (BLACK) (6-WAY, 15 DIA HOLE IN 0.7 THK PNL, NYLON 6/6) |
N153 (06) |
2006-2010 |
02 |
| 012 |
11562421 |
RETAINER, T/LP (6-WAY, 0.95-1.2MM PNL RNG, NYLON 6/6)
| N153 (06) |
2006-2010 |
02 |
|
| 013 |
11569711 |
NUT, PUSH-IN, M4.2X1.41, 0.7-2.15 PNL THK, SAE 1050-1065, GMW3359 W/ (T/LP)
|
2006-2010 |
AR |
|
| 014 |
|
HARNESS, CHAS WRG (SEE GROUP 02.000 ЖГУТ ПРОВОДОВ/CHASSIS FOR DETAILED ILLUSTRATED VIEW) |
|
2006-2010 |
|
| 015 |
25870874 |
HARNESS, R/CMPT C/LP WRG |
N153 (06) |
2007-2010 |
01 |
