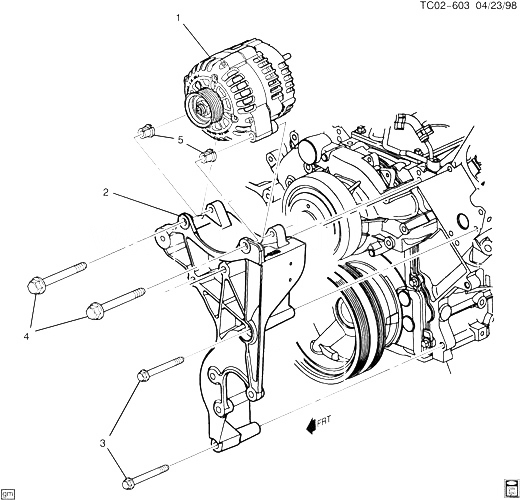

(TC02-603) - 2008-2009 N1 КРЕПЛЕНИЕ ГЕНЕРАТОРА (LH8/5.3L) HUMMER - H3 SUV 2009
| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
|---|---|---|---|---|---|
| 001 | 25869451 | GENERATOR, (STAMPED FJ) (ACDelco #25869451) | N1 (LH8) | 2008-2009 | 01 |
| 002 | 12567922 | BRACKET, GEN ; P/S PUMP (INCLS 5) (INCLS SPACER) | N1 (LH8) | 2008-2009 | 01 |
| 003 | 11516744 | BOLT-HFH, M10X1.5X110, 26 THD, 22.3 OD, 9.8, 7114M (GEN ; P/S PUMP BRKT) | 2008-2010 | 04 | |
| 004 | 11516360 | БОЛТ, HFH M10X1.2X90, 9.8, 7114M, 22.3 OD HDR PT (GEN) | 2008-2010 | 02 | |
| 005 | 12550090 | SPACER, GEN ; P/S PUMP BRKT (PART OF 2)| N1 (LH8) |
2008-2009 |
02 |
|
