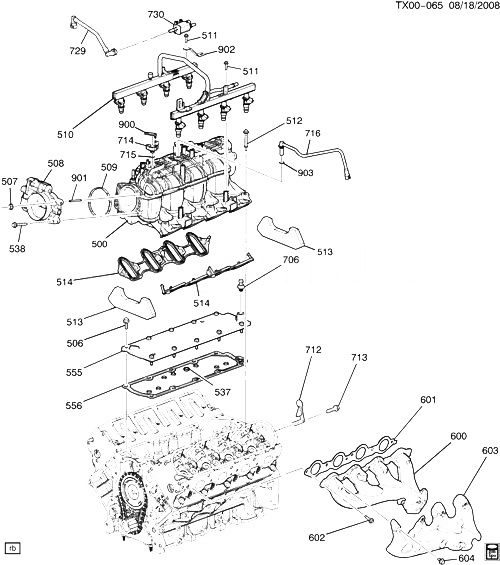

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 500 |
12597598 |
MANIFOLD, INT |
N1 (06-43) (LH8) |
2009-2009 |
01 |
| 506 |
11518075 |
БОЛТ, HFH, THD 22, OD 17, 8.8, GMW14C-PT, HDR POINT (PART OF 555)
|
2009-2010 |
11 |
|
| 507 |
|
NUT, THROT BODY (*KIT1) |
|
2009-2009 |
|
| 508 |
12601387 |
BODY, THROT (ACDelco #217-3151) |
N1 (LH8) |
2009-2009 |
01 |
| 509 |
12589235 |
SEAL, THROT BODY (ACDelco #217-2424)
| N1 (LH8) |
2009-2009 |
01 |
|
| 510 |
|
INJECTOR, SEQ M/PORT FUEL (W/FUEL RL) (SEE GROUP 03.000 РАМА ТОПЛИВНОГО ИНЖЕКТОРА FOR DETAILED ILLUSTRATED VIEW) |
|
2009-2009 |
|
| 511 |
12580910 |
БОЛТ, F/INJR DRVR MDL |
N1 (LH8) |
2009-2009 |
04 |
| 512 |
12575384 |
БОЛТ, INT MANIF |
N1 (LH8) |
2009-2009 |
10 |
| 513 |
|
INSULATOR KIT, INT MANIF |
|
2009-2009 |
|
| 514 |
89060413 |
GASKET KIT, INT MANIF
| N1 (LH8) |
2009-2009 |
01 |
|
| 537 |
|
SEAL, ENG BLK VALLEY CVR HIGH PRESS PORT (PART OF 555) |
|
2009-2010 |
|
| 537 |
12574886 |
SEAL, ENG BLK VALLEY CVR HIGH PRESS PORT (PART OF 555) |
N1 (LH8) |
2009-2009 |
08 |
| 538 |
|
БОЛТ, THROT BODY (*KIT1) |
|
2009-2009 |
|
| 555 |
|
COVER, ENG BLK VALLEY (W/PCV BFL) (INCLS 506, 537, 556) |
|
2009-2010 |
|
| 555 |
12598832 |
COVER, ENG BLK VALLEY (W/PCV BFL) (INCLS 506, 537, 556) (INCLS COVER, BOLTS, GASKET, SEAL) |
N1 (LH8) |
2009-2009 |
01 |
| 556 |
12610141 |
GASKET, ENG BLK VALLEY CVR (PART OF 555)
| N1 (LH8) |
2009-2009 |
01 |
|
| 600 |
12598548 |
MANIFOLD, EXH (EXC SHIELD, BOLTS, STUDS) (BARE) |
N1 (LH8, M30) |
2009-2009 |
01 |
| 600 |
12600527 |
MANIFOLD, EXH |
N1 (LH8, M30, JJA) |
2009-2009 |
01 |
| 601 |
12617944 |
GASKET, EXH MANIF
| N1 (LH8) |
2009-2009 |
02 |
|
| 602 |
11518860 |
БОЛТ, HFH, M8X1.25X30, 20.9 THD, 18 O.D., 10.9, GMW3179 CODE G, GM6194M (EXH MANIF FLG)
|
2009-2010 |
12 |
|
| 603 |
12597916 |
SHIELD, EXH MANIF HT (PART OF 600) |
N1 (LH8) |
2009-2009 |
01 |
| 603 |
12598550 |
SHIELD, EXH MANIF HT (PART OF 600) |
N1 (LH8, M30) |
2009-2009 |
01 |
| 604 |
24505098 |
БОЛТ, HFH, RND HD, 6X1X12.15, W/ANTI SEIZE, 14.2 O.D.DG PT, 10.9, 711 (PART OF 600) |
|
2009-2010 |
06 |
| 706 |
12621234 |
ДАТЧИК, ENG OIL PRESS (ACDelco #213-4411) |
N1 (LH8, M30) |
2009-2009 |
01 |
| 712 |
12578463 |
STOP, F/INJN FUEL RL |
N1 (LH8) |
2009-2009 |
01 |
| 713 |
11515764 |
БОЛТ, HFH, M10X1.5X20, 18THD, 22.3 O.D., 10.9, 7114M (F/INJN FUEL RL STOP) |
|
2009-2010 |
01 |
| 714 |
12594942 |
ДАТЧИК, MAP (INCLS 715) (ACDelco #213-3949)
| N1 (LH8, M30) |
2009-2009 |
01 |
|
| 715 |
|
SEAL, MAP SEN (PART OF 714) |
|
2009-2009 |
|
| 716 |
12611592 |
TUBE, PCV (DIRTY AIR TUBE) (INCLS 903)
| N1 (LH8) |
2009-2009 |
01 |
|
| 729 |
12574897 |
HARNESS, EVAP EMIS CNSTR |
N1 (06-43) (LH8, M30, JJA) |
2009-2009 |
01 |
| 730 |
12606684 |
VALVE, EVAP EMIS CNSTR PURGE SOL (ACDelco #214-2142)
| N1 (06-43) (LH8, M30, JJA) |
2009-2009 |
01 |
|
| 900 |
12615934 |
RETAINER, MAP SEN |
N1 (LH8, M30) |
2009-2009 |
01 |
| 901 |
|
STUD, THROT BODY (*KIT1) |
|
2009-2009 |
|
| 902 |
12593800 |
BRACKET, F/INJN FUEL RL |
N1 (LH8, M30) |
2009-2009 |
01 |
| 903 |
|
SEAL, PCV TUBE (PART OF 716) |
|
2009-2009 |
|
| K01 |
89017591 |
BOLT KIT, THROT BODY (INCLS 507, 538, 901) (INCLS BOLT, STUD, NUT) |
N1 (LH8) |
2009-2009 |
02 |
