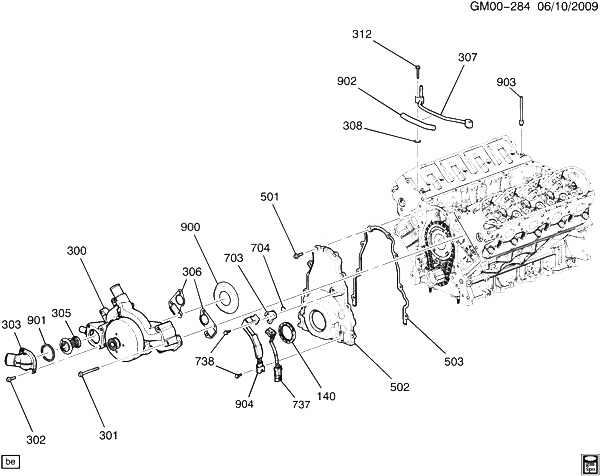

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 140 |
12585673 |
SEAL, CR/SHF FRT OIL (PART OF 502) (0.207) (ACDelco #296-02)
| N1 (LH8) |
2008-2009 |
01 |
|
| 300 |
19208815 |
PUMP KIT, WAT (INCLS 302, 303, 305, 900, 901) (INCLS GASKETS) (ACDelco #251-713)
| N1 (LH8) |
2008-2009 |
01 |
|
| 301 |
12551926 |
БОЛТ, W/PMP (M8X1.25X83)
| N1 (LH8) |
2008-2009 |
06 |
|
| 302 |
11516480 |
БОЛТ, W/PMP INL (PART OF 300) (M6X1X25-10MM SOC) |
N1 (LH8) |
2008-2009 |
02 |
| 303 |
12587395 |
INLET, W/PMP (PART OF 300) (ACDelco #15-10595) |
N1 (LH8) |
2008-2009 |
01 |
| 305 |
89018168 |
THERMOSTAT KIT, ENG COOL (INCL SEAL) (PART OF 300) (INCLS 901) (ACDelco #131-160)
| N1 (LH8) |
2008-2009 |
01 |
|
| 306 |
12610311 |
GASKET, W/PMP (2 OBLONG ; 1 ROUND MTG HOLES, AT PUMP MANIFOLD) (ACDelco #251-663)
| N1 (LH8) |
2009-2009 |
02 |
|
| 307 |
12605716 |
PIPE, ENG COOL AIR BL (INCLS 308, 902) |
N1 (LH8) |
2008-2009 |
01 |
| 308 |
12602541 |
SEAL, ENG COOL AIR BL PIPE (O RING) (SINGLE TYPE ONE HOLE O-RING) (PART OF 307) |
N1 (LH8) |
2008-2009 |
02 |
| 501 |
11515758 |
БОЛТ, HFH, M8X1.25X30, 28THD, 18 O.D., MACH PT, 10.9, 7114M (PART OF 502)
|
2008-2009 |
08 |
|
| 502 |
12600325 |
COVER, ENG FRT (INCLS 140, 501, 503, 703, 704, 737, 738, 904) (INCLS COVER, SEAL, GASKET, BOLT, JUMPER, SENSOR, BRACKET, WIRE) |
N1 (LH8) |
2008-2009 |
01 |
| 503 |
12574294 |
GASKET, ENG FRT CVR (PART OF 502)
| N1 (LH8) |
2008-2009 |
01 |
|
| 703 |
12591720 |
ДАТЧИК, CM/SHF POSN (PART OF 502) (INCLS 704) (ACDelco #213-3826)
| N1 (LH8) |
2008-2009 |
01 |
|
| 704 |
|
SEAL, SENSOR CM/SHF POSN (PART OF 502, 703) |
|
2008-2009 |
|
| 737 |
12613158 |
WIRE, CM/SHF POSN SEN (PART OF 502) (INCLS 904) (W/5-WAY INLINE CONNECTOR TO ДВИГАТЕЛЬ HARNESS) |
N1 (LH8) |
2009-2009 |
01 |
| 738 |
11588712 |
БОЛТ, HFH, M6X1X20, 17.5 THD, 14.2 O.D., 8.8, GMW3359 (PART OF 502) |
|
2008-2009 |
02 |
| 900 |
|
PLUG, W/PMP (PART OF 300) |
|
2008-2009 |
|
| 901 |
12587397 |
SEAL, WAT INL (PART OF 300, 305)
| N1 (LH8) |
2008-2009 |
01 |
|
| 902 |
12600254 |
HOSE, ENG COOL AIR BL PIPE DPNG (PART OF 307) |
N1 (LH8) |
2008-2009 |
01 |
| 903 |
12602048 |
PLUG, ENG COOL AIR BL (55MM, ALUMINUM) |
N1 (LH8) |
2008-2009 |
02 |
| 904 |
12627500 |
BRACKET, CM/SHF POSN SEN LEAD CLIP (PART OF 502, 737) |
N1 (LH8) |
2008-2009 |
01 |
