| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |

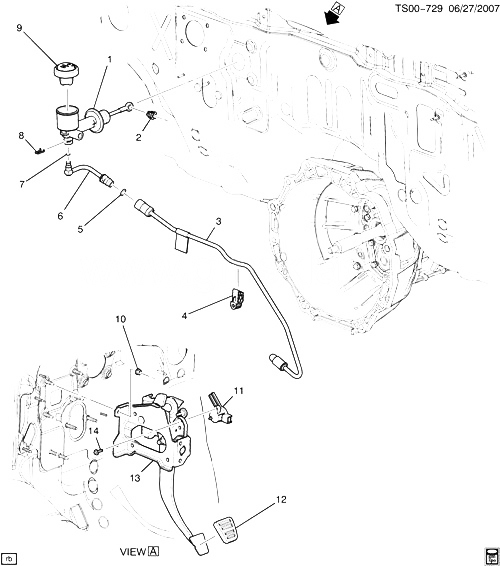

| 001 |
25805725 |
CYLINDER, CLU MAS (INCLS 2, 5-9) (SERV T/W 25805726/HOSE) |
N1 (MA5, RHD) (EXPORT) |
2008-2010 |
01 |
| 002 |
|
BUSHING, CLU M/CYL PUSH ROD (PART OF 1) |
|
2008-2010 |
|
| 003 |
25805726 |
HOSE, CLU M/CYL RSVR (INCLS 4) (SERV T/W 25805725/MAS CYL) |
N1 (MA5, RHD) (EXPORT) |
2008-2010 |
01 |
| 004 |
90159758 |
CLIP, CLU M/CYL RSVR HOSE (PART OF 3) (3.682) |
N153 (06) (MA5, RHD) (EXPORT) |
2008-2009 |
01 |
| 005 |
|
SEAL, CLU ACTR CYL HOSE (PART OF 1) |
|
2008-2010 |
|
| 006 |
|
PIPE, CLU ACTR CYL (PART OF 1) |
|
2008-2010 |
|
| 007 |
|
SEAL, CLU ACTR CYL (O RING) (PART OF 1) |
|
2008-2010 |
|
| 008 |
|
RETAINER, CLU M/CYL RSVR (PUSH IN) (PART OF 1) |
|
2008-2010 |
|
| 009 |
89048534 |
CAP, CLU M/CYL RSVR (PART OF 1) (W/ISO) |
N1 (MA5) |
2008-2010 |
01 |
| 010 |
11514596 |
ГАЙКА, HFH, M8X1.25, 17.9 OD, 738 THK, 13MM HEX, 10, ZF (CLU PED BRKT) (8.915) (ACDelco #11514596) |
|
2008-2010 |
04 |
| 011 |
25912943 |
ДАТЧИК, CLU PED POSN (PART OF 13) (4.625) |
N1 (MA5) |
2008-2010 |
01 |
| 012 |
15108399 |
PAD, CLU PED (PART OF 13) |
N1 (MA5) |
2008-2010 |
01 |
| 013 |
15898321 |
PEDAL, CLU (W/BRKT) (INCLS 11, 12, 14) |
N1 (MA5, RHD) (EXPORT) |
2008-2010 |
01 |
| 014 |
11609999 |
SCREW, HEX HD FL WA, M4X0.7X20, 13 THD, 12 OD, 9.8, GMW3044, W/NYLON (PART OF 13) |
|
2008-2010 |
01 |
