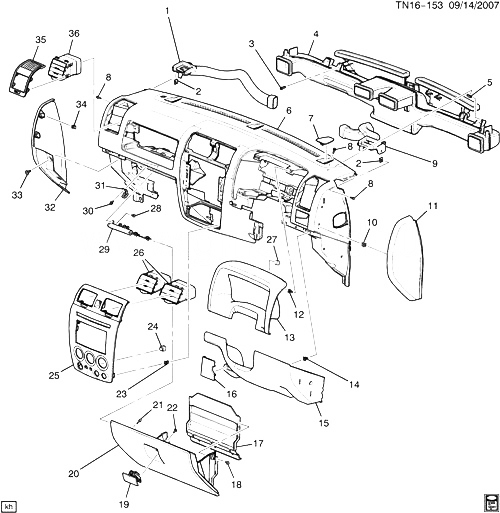

(TN16-153) - 2007-2008 N1 INSTRUMENT PANEL RELATED PARTS PART 1 TRIM(RHD) HUMMER - H3 2008

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15818830 DUCT, SI WDO DEFG OTLT (PART OF 6) (INCLS 2) N1 (RHD) (EXPORT) 2007-2008 01
002 11516993 ГАЙКА, M4.2X1.41 (PART OF 1, 6, 9) 2007-2008 01
003 11561840 БОЛТ, SI WDO DEFG OTLT OTR DUCT (PART OF 6) (9.211) N1 2007-2008 02
004 15818820 DUCT, AIR DISTR CTR (PART OF 6) (INCLS 5) (INCLS SEALS AND NUT) N1 (RHD) (EXPORT) 2007-2008 01
005 11516993 ГАЙКА, M4.2X1.41 (PART OF 4, 6) 2007-2008 03
006 24300215 PANEL, INST (INCLS 1-5, 7-9, 12, 13, 17-22, 28-31, 35, 36) (EBONY) N1 (LLR, RHD, UB0, UC6, US8, UQ3, 19I) (EXC HH3) (EXPORT) 2008-2008 01
006 25830739 PANEL, INST (INCLS 1-5, 7-9, 12, 13, 17-22, 28-31, 35, 36) (EBONY) N1 (LLR, RHD, UB0, UC6, US8, UQA, 19I) (EXC HH3) (EXPORT) 2008-2008 01
006 25830740 PANEL, INST (INCLS 1-5, 7-9, 12, 13, 17-22, 28-31, 35, 36) (CASHMERE) (UPLVL) N1 (LLR, RHD, UB0, UC6, US8, UQA, 27I) (EXC HH3) (EXPORT) 2008-2008 01
006 25830742 PANEL, INST (INCLS 1-5, 7-9, 12, 13, 17-22, 28-31, 35, 36) (CASHMERE) (BASE) N1 (LLR, RHD, UB0, UC6, US8, UQ3, 27I) (EXC HH3) (EXPORT) 2008-2008 01
007 15797623 COVER, I/P UPR T/PNL (PART OF 6) N1 2007-2008 03
008 11589015 БОЛТ, HWH W/FL WA M4.2X1.41X20, 12.5 O.D., DOG PT, 6010M, 7253M (PART OF 6) 2007-2008 05
009 15818826 DUCT, SI WDO DEFG OTLT (PART OF 6) (INCLS 2) N1 (RHD) (EXPORT) 2007-2008 01
010 11588650 CLIP, 12X14X16.6, GM4345M (PART OF 11) 2007-2008 04
011 15818817 COVER, I/P OTR TR (INCLS 10) N1 (RHD) (EXPORT) 2007-2008 01
012 11588650 CLIP, 12X14X16.6, GM4345M (PART OF 6) 2007-2008 04
013 PLATE, I/P CSTR TR (PART OF 6) 2007-2008
014 11588650 CLIP, 12X14X16.6, GM4345M (PART OF 15) 2007-2008 04
015 15818815 COVER, I/P DRVR KNEE BOLS (INCLS 14) (EBONY) N1 (RHD, 19I) (EXPORT) 2007-2008 01
015 15818816 COVER, I/P DRVR KNEE BOLS (INCLS 14) (CASHMERE) N1 (RHD, 27I) (EXPORT) 2007-2008 01
016 25776067 COVER, I/P DRVR KNEE BOLS LWR (EBONY) N1 (RHD, 19I) (EXPORT) 2007-2008 01
016 25776068 COVER, I/P DRVR KNEE BOLS LWR (CASHMERE) N1 (RHD, 27I) (EXPORT) 2007-2008 01
017 10391622 HINGE, I/P COMPT DR (PART OF 6, 20) (INCLS 18) (EBONY) N1 (19I, 27I) 2007-2008 01
018 11609461 БОЛТ, HX W/FL WA, M4.2X1.41X16, 9 THD, 12.5 OD, 6010M STL, GMW4205, SELFTA (PART OF 6, 17, 20) 2007-2008 05
019 10391625 LATCH, I/P COMPT DR (PART OF 6, 20) (INCLS 22) (CASHMERE) N1 (27I) 2007-2008 01
019 10391626 LATCH, I/P COMPT DR (PART OF 6, 20) (INCLS 22) (EBONY) N1 (19I) 2007-2008 01
020 24300308 ДВЕРЬ, I/P COMPT (PART OF 6) (INCLS 17-19, 21, 22) (EBONY) N1 (RHD, 19I) (EXC HH3) (EXPORT) 2008-2008 01
020 24300309 ДВЕРЬ, I/P COMPT (PART OF 6) (INCLS 17-19, 21, 22) (CASHMERE) N1 (RHD, 27I) (EXC HH3) (EXPORT) 2008-2008 01
021 15683368 BUMPER, I/P COMPT (PART OF 6, 20) (8.80 DIA) (CLOSED-STOP) (FRAME) (16.650) N1 (RHD) (EXPORT) 2007-2008 02
022 11609539 SCREW, RD CROWNED WA HD, M4.2X1.41X16, STL ISO 2702, GMW4205 (PART OF 6, 19, 20) 2007-2008 02
023 11588650 CLIP, 12X14X16.6, GM4345M (PART OF 25) 2007-2008 07
024 15821574 INSERT, I/P ACSRY TR PLT N1 2007-2008 01
025 25811875 PLATE, I/P ACSRY TR (INCLS 23) (QUEST) (CENTER STACK ASM) N1 2007-2008 01
026 15787616 GRILLE, I/P CTR AIR OTLT N1 2007-2008 01
026 15787617 GRILLE, I/P CTR AIR OTLT N1 2007-2008 01
027 25603681 INSULATOR, I/P CSTR TR PLT (CLUSTER BUMPER) (BLACK/RUBBER) N1 2007-2008 AR
028 11609461 БОЛТ, HX W/FL WA, M4.2X1.41X16, 9 THD, 12.5 OD, 6010M STL, GMW4205, SELFTA (PART OF 6) 2007-2008 02
029 15238296 DAMPENER, I/P COMPT DR (PART OF 6) N1 2007-2008 01
030 11609465 БОЛТ, HWH, M4.2X1.41X18, 12.5 OD, 6010M, PS (PART OF 6) (8.977) 2007-2008 02
031 15171370 STRIKER, I/P COMPT DR LK (PART OF 6) N1 2007-2008 01
032 15818819 COVER, I/P OTR TR (INCLS 34) N1 (RHD) (EXPORT) 2007-2008 01
033 15120856 RETAINER, I/P OTR TR CVR (BLACK) (8.141) N1 2007-2008 02
034 11588650 CLIP, 12X14X16.6, GM4345M (PART OF 32) 2007-2008 03
035 15797627 BEZEL, I/P OTR AIR OTLT (PART OF 6, 36) N1 2007-2008 01
035 15797628 BEZEL, I/P OTR AIR OTLT (PART OF 6, 36) N1 2007-2008 01
036 25816720 GRILLE, I/P OTR AIR OTLT (PART OF 6) (INCLS 35) N1 2007-2008 01
036 25816721 GRILLE, I/P OTR AIR OTLT (PART OF 6) (INCLS 35) N1 2008-2008 01
