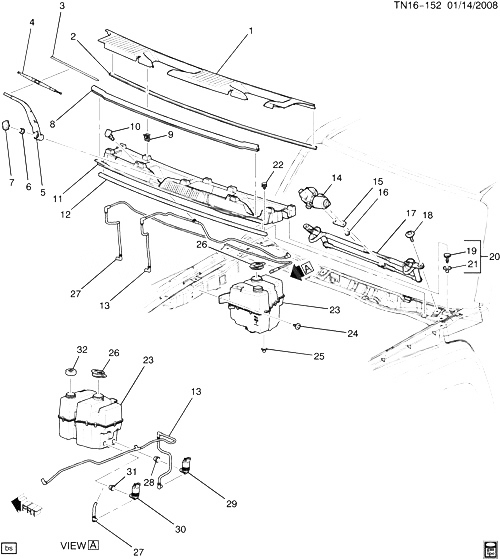

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15822189 |
PANEL, AIR INL GRL (UPR) (INCLS 2, 9) |
N1 (RHD) (EXPORT) |
2007-2008 |
01 |
| 002 |
|
SEALING STRIP, AIR INL UPR (PART OF 1) |
|
2007-2008 |
|
| 003 |
15835956 |
WIPER, W/S (PART OF 4) |
N1 (RHD) (EXPORT) |
2007-2008 |
01 |
| 003 |
15835957 |
WIPER, W/S (PART OF 4) |
N1 (RHD) (EXPORT) |
2007-2008 |
01 |
| 004 |
10389562 |
BLADE, WSW (INCLS 3)
| N1 |
2007-2008 |
01 |
|
| 004 |
10389563 |
BLADE, WSW (INCLS 3)
| N1 |
2007-2008 |
01 |
|
| 005 |
15835958 |
ARM, WSW |
N1 (RHD) (EXPORT) |
2007-2008 |
01 |
| 005 |
15835959 |
ARM, WSW |
N1 (RHD) (EXPORT) |
2007-2008 |
01 |
| 006 |
11609634 |
ГАЙКА, HEX WASH, M10X1.25, 7MM THK, 20 WA OD, 9 STL, 7111M, CON SPR WA. (WSW ARM)
|
2007-2008 |
02 |
|
| 007 |
10341324 |
CAP, WSW ARM FIN (10.147)
| N1 |
2007-2008 |
02 |
|
| 008 |
|
SEAL, КАПОТ RR (PART OF 11) |
|
2007-2008 |
|
| 009 |
11610266 |
CLIP, AIR INL GRL PNL (PART OF 1) (8.950) |
N1 |
2007-2008 |
10 |
| 010 |
15173510 |
NOZZLE, WSWA (PART OF 11, 13) (SINGLE FAN SPRAY TYPE)
| N1 (RHD) (EXPORT) |
2007-2008 |
02 |
|
| 011 |
15822215 |
PANEL, AIR INL GRL (LWR) (INCLS 8, 10, 12, 13, 19, 20, 29, 30) |
N1 (RHD) (EXPORT) |
2007-2008 |
01 |
| 012 |
|
SEAL, AIR INL GRL PNL (PART OF 11) |
|
2007-2008 |
|
| 013 |
15840869 |
HOSE, WSWA NOZ (PART OF 11) (INCLS 10) (INCLS NOZZLE) |
N1 |
2007-2008 |
01 |
| 014 |
25823961 |
MOTOR, WSW (W/TRANS) (INCLS 15, 16) (16.064) |
N1 (RHD) (EXPORT) |
2007-2008 |
01 |
| 014 |
25823961 |
MOTOR, WSW (W/TRANS) (INCLS 15, 16) |
N1 (RHD) (EXPORT) |
2007-2008 |
01 |
| 015 |
|
PLATE, WSW MOT (PART OF 14) |
|
2007-2008 |
|
| 016 |
|
NUT, WSW SYS MDL (PART OF 14) |
|
2007-2008 |
|
| 017 |
25823962 |
TRANSMISSION, WSW (ACDelco #25823962) |
N1 (RHD) (EXPORT) |
2007-2008 |
01 |
| 018 |
11588831 |
SCREW, HEX W/ CON WA, M6X1X35, 33.5 THD, 17 O.D.HDR PT, 9.8, BLK (WSW TRANS) |
|
2007-2008 |
02 |
| 019 |
|
PIN (PART OF 20) |
|
2007-2008 |
|
| 020 |
11562043 |
RETAINER, AIR INL GRL PNL (INCLS 19, 21) (FOR 0.95 MM TO 1.0 MM THICK PANEL) (INCLS 11561499) (8.950)
| N1 |
2007-2008 |
03 |
|
| 021 |
|
NUT, PUSH IN (PART OF 20) |
|
2007-2008 |
|
| 022 |
11519031 |
RETAINER, PUSH IN, 19.5X26.1X1.8, ACETAL, NATURAL, FOAM SEALER (AIR INL GRL PNL)
|
2007-2008 |
03 |
|
| 023 |
25817289 |
CONTAINER, WSWA SOLV (W/COOL RCVY RSVR) (16.065) |
N1 (RHD) (EXPORT) |
2007-2008 |
01 |
| 023 |
25817289 |
CONTAINER, WSWA SOLV (W/COOL RCVY RSVR) |
N1 (RHD) (EXPORT) |
2007-2008 |
01 |
| 024 |
11517343 |
BOLT/SCREW, HEX W/FL WA, M6X1X25, 17 O.D., DOG PT, 9.8, 7114M (WSWA SOLV CNTNR) |
|
2007-2008 |
02 |
| 025 |
10389566 |
GROMMET, WSWA SOLV CNTNR |
N1 |
2007-2008 |
01 |
| 026 |
25731418 |
CAP, WSWA SOLV CNTNR (W/ISO SYMBOL) (10.154) |
N1 |
2007-2008 |
01 |
| 027 |
15297373 |
HOSE, R/WDO WA SOLV CNTNR (SEE GROUP 16.000 СТЕКЛООЧИСТИТЕЛЬ ЗАДНЕГО ОКНА FOR DETAILED ILLUSTRATED VIEW) (PART OF 11) |
N1 |
2007-2008 |
01 |
| 028 |
10389566 |
GROMMET, WSWA SOLV CNTNR (PART OF 29) |
N1 |
2007-2008 |
01 |
| 029 |
25792626 |
PUMP KIT, WSWA W/ SEAL (INCLS 28)
| N1 (EXPORT) |
2008-2008 |
01 |
|
| 030 |
25792888 |
PUMP KIT, R/WDO WA (INCLS 31) (ACDelco #25792888) |
N1 |
2007-2008 |
01 |
| 031 |
10389566 |
GROMMET, WSWA SOLV CNTNR (PART OF 30) |
N1 |
2007-2008 |
01 |
| 032 |
15060681 |
CAP, COOL RCVY RSVR (DEX-COOL) (SCREW ON CAP)
| N1 |
2007-2008 |
01 |
|
