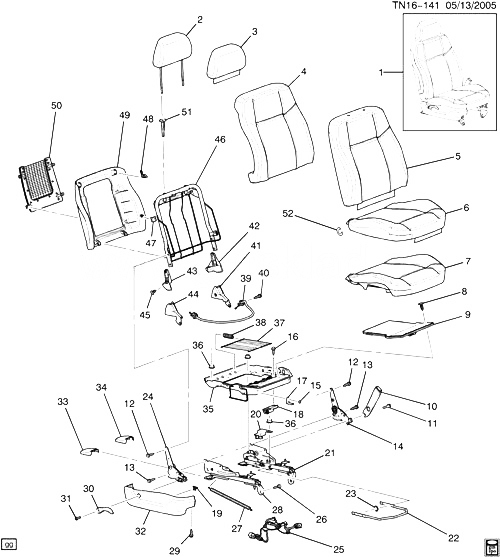

(TN16-141) - 2006-2009 N1 СИДЕНЬЕ ПАССАЖИРА/BUCKET J TRIMS (EXC AG2) HUMMER - H3 2008

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 24300188 СИДЕНЬЕ, ПАССАЖИРСКОЕ (INCLS 2-52) (CASHMERE) N153 (06) (AR9, BRM, 31J) (EXC RHD) (EXPORT) 2007-2008 01
001 24300189 СИДЕНЬЕ, ПАССАЖИРСКОЕ (INCLS 2-52) (EBONY) N153 (06) (AR9, BRM, 19J) (EXC RHD) (EXPORT) 2007-2008 01
001 25832709 СИДЕНЬЕ, ПАССАЖИРСКОЕ (INCLS 2-52) (EBONY) N153 (06) (AR9, 19J) (EXC BRM, RHD, Y92) 2008-2008 01
001 25832710 СИДЕНЬЕ, ПАССАЖИРСКОЕ (INCLS 2-52) (CASHMERE) N153 (06) (AR9, 31J) (EXC BRM, RHD, Y92) 2008-2008 01
001 25832711 СИДЕНЬЕ, ПАССАЖИРСКОЕ (INCLS 2-52) (RED) N153 (06) (AR9, 74J) (EXC Y92) 2008-2008 01
001 25832713 СИДЕНЬЕ, ПАССАЖИРСКОЕ (INCLS 2-52) (EBONY) N153 (06) (AR9, Y92, 19J) (EXC BRM, RHD) 2008-2008 01
001 25832714 СИДЕНЬЕ, ПАССАЖИРСКОЕ (INCLS 2-52) (CASHMERE) N153 (06) (AR9, Y92, 31J) (EXC BRM, RHD) 2008-2008 01
001 25832715 СИДЕНЬЕ, ПАССАЖИРСКОЕ (INCLS 2-52) (RED) N153 (06) (AR9, Y92, 74J) 2008-2008 01
002 PAD, P/SEAT H/RST (PART OF 3) 2006-2009
003 25832954 RESTRAINT, P/SEAT HD (INCLS 2) (EBONY) N1 (AR9, 19J) (EXC Y92) 2008-2009 01
003 25832955 RESTRAINT, P/SEAT HD (INCLS 2) (CASHMERE) N1 (06) (AR9, 31J) (EXC Y92) 2008-2009 01
003 25832956 RESTRAINT, P/SEAT HD (INCLS 2) (RED) N1 (06) (AR9, 74J) (EXC Y92) 2008-2009 01
003 25832958 RESTRAINT, P/SEAT HD (INCLS 2) (EBONY) N1 (AR9, Y92, 19J) 2008-2009 01
003 25832959 RESTRAINT, P/SEAT HD (INCLS 2) (CASHMERE) N153 (06) (AR9, Y92, 31J) 2008-2009 01
003 25832960 RESTRAINT, P/SEAT HD (INCLS 2) (RED) N1 (AR9, Y92, 74J) 2008-2009 01
004 10388085 PAD, P/SEAT BK CUSH N1 (AR9) 2006-2009 01
005 15935929 COVER, P/SEAT BK CUSH (CASHMERE) N153 (06) (AR9, 31J) (EXC BRM, RHD) 2008-2009 01
005 15935929 COVER, P/SEAT BK CUSH (CASHMERE) N153 (06) (AR9, BRM, 31J) (EXC RHD) (EXPORT) 2008-2009 01
005 25807347 COVER, P/SEAT BK CUSH (EBONY) N153 (06) (AR9, 19J) 2008-2009 01
005 25807349 COVER, P/SEAT BK CUSH (RED) N153 (06) (AR9, 74J) (EXC Y92) 2008-2008 01
006 15890123 COVER, P/SEAT CUSH (CASHMERE) N153 (06) (AR9, BRM, 31J) (EXC RHD) (EXPORT) 2008-2008 01
006 15935932 COVER, P/SEAT CUSH (CASHMERE) N153 (06) (AR9, BRM, 31J) (EXC RHD) (EXPORT) 2007-2008 01
006 24300160 COVER, P/SEAT CUSH (EBONY) N153 (06) (AR9, RHD, 19J) (EXPORT) 2007-2009 01
006 24300161 COVER, P/SEAT CUSH (CASHMERE) N153 (06) (AR9, BRM, 31J) (EXC RHD) (EXPORT) 2007-2008 01
006 24300161 COVER, P/SEAT CUSH (CASHMERE) N153 (06) (AR9, RHD, 31J) (EXPORT) 2007-2008 01
006 25807418 COVER, P/SEAT CUSH (RED) N153 (06) (AR9, 74J) 2007-2008 01
006 25861088 COVER, P/SEAT CUSH (EBONY) N153 (06) (AR9, 19J) (EXC RHD) 2008-2008 01
006 25861089 COVER, P/SEAT CUSH (CASHMERE) N153 (06) (AR9, 31J) (EXC BRM, RHD, Y92) 2008-2008 01
006 25861089 COVER, P/SEAT CUSH (CASHMERE) N153 (06) (AR9, Y92, 31J) (EXC RHD) 2008-2008 01
007 PAD, P/SEAT CUSH (*KIT1) 2006-2009
008 RETAINER, INFL RST FRT PASS PRESENCE (*KIT1) 2006-2009
009 ДАТЧИК, INFL RST FRT PASS PRESENCE (*KIT1) 2006-2009
010 19177448 РЕМЕНЬ, P/SEAT (BKL SI) (EBONY) N1 (19J, 31J) 2007-2009 01
010 19177448 РЕМЕНЬ, P/SEAT (BKL SI) (EBONY) N1 (74J) 2007-2009 01
010 19177448 РЕМЕНЬ, P/SEAT (BKL SI) (EBONY) N1 (RHD, 19J, 31J) (EXPORT) 2007-2009 01
011 11569882 БОЛТ, P/SEAT BELT (BKL SI) N1 (RHD) (EXPORT) 2007-2009 01
012 12474329 БОЛТ, P/SEAT RECL (M8X1.25X30) (16.679) N1 2006-2009 AR
013 89042772 БОЛТ, F/SEAT (PANEL SIDE) (M8X1.25X28) (16.682) N1 2006-2009 08
014 12377886 RECLINER, P/SEAT INR (NON-DUMP) N1 2006-2009 01
015 15815939 RIVET, P/SEAT CUSH FRM N1 2006-2009 01
016 11571250 БОЛТ, P/SEAT INFL RST SUPPRESSION MDL (M4.2X1.41X15.7, 11 OD) N1 2008-2009 03
018 MODULE, INFL RST P/SEAT SUPPRESSION (*KIT1) 2006-2009
019 15252123 RETAINER, P/SEAT CUSH (PART OF 32) (COVER) N1 2006-2009 02
019 89039183 RETAINER, P/SEAT CUSH (PART OF 32) (6MM) (NYLON, PUSH-IN TREE) (HARNESS) (2.480) N1 2006-2009 02
021 25885647 ADJUSTER, P/SEAT INR N1 2006-2009 01
022 89041467 BAR, P/SEAT INR ; OTR ADJR TIE N1 2006-2009 01
023 15252125 NUT, P/SEAT (TOWEL BAR) N1 2006-2009 02
024 89039103 RECLINER, P/SEAT OTR (NON-DUMP) N1 (AR9) 2006-2009 01
025 25971456 HARNESS, P/SEAT ADJR WRG (CONNECTS W/PUSHPINS TO 3 HOLE CUSH FRAME) N153 (06) (AR9, 19J, 31J, 74J) (EXC BRM, RHD, Y92) 2008-2008 01
025 25971456 HARNESS, P/SEAT ADJR WRG (CONNECTS W/PUSHPINS TO 3 HOLE CUSH FRAME) N153 (06) (AR9, Y92, 19J, 31J, 74J) 2008-2008 01
025 25971456 HARNESS, P/SEAT ADJR WRG (CONNECTS W/PUSHPINS TO 3 HOLE CUSH FRAME) (CONNECTS W/PUSHPIN TO 3 HOLE CUSH FRAME) (1ST DES 15885649) N153 (06) (AR9, BRM) (EXC RHD) (2ND DES) (EXPORT) 2008-2008 01
026 11519940 БОЛТ, HEX W/CON WA, M12X1.75X34.5, 28 OD, 6202M, 4345M, TAP, TR-PT (F/SEAT) 2006-2009 02
027 89041466 SPRING, P/SEAT ADJR RTN N1 2006-2009 01
028 10388138 ADJUSTER, P/SEAT OTR (MANUAL, 2-WAY) N1 2006-2009 01
028 15887972 ADJUSTER, P/SEAT OTR N153 (06) (RHD) (EXPORT) 2007-2009 01
030 89041700 HANDLE, P/SEAT RECL (EBONY) (DOUBLE D RECL HANDLE) (O/B) N1 (AR9) 2006-2009 01
031 15208539 БОЛТ, P/SEAT RECL HDL (M4.2X1.4X20) (16.715) N1 2006-2009 AR
032 15254767 COVER, P/SEAT ADJR FIN (INCLS 19) (EBONY) (USED ON CLOTH SEATS) (16.720) N1 (AR9) (EXC AG2) 2006-2009 01
033 10399318 COVER, P/SEAT OTR ADJR FRT FIN (EBONY) N1 2006-2009 01
034 15264933 COVER, P/SEAT INR ADJR FIN (EBONY) N153 (EXC AG2) 2006-2009 01
035 10388124 FRAME, P/SEAT CUSH (MANUAL) (W/O 3 HOLES FOR HARN. PUSH PINS, CLIP CONNECTOR) N1 (06) (AR9) 2006-2009 01
035 25971450 FRAME, P/SEAT CUSH (W/3 HOLES FOR HARNESS PUSH PINS) N1 (06) (AR9, 19J, 31J, 74J) (EXC BRM, RHD) 2007-2009 01
035 25971450 FRAME, P/SEAT CUSH (W/3 HOLES FOR HARNESS PUSH PINS) N1 (06) (AR9, BRM) (EXC RHD) (EXPORT) 2007-2009 01
036 11609746 ГАЙКА, HFH, M8X1.25, 8.9THK, 17.6 O.D., 10 STL, GMW3200, PREV TORQUE (P/SEAT ADJR) 2006-2009 06
037 89027021 SPRING, P/SEAT CUSH PAD SUPT WIRE N1 2006-2009 01
038 15692668 SPRING, P/SEAT CUSH PAD SUPT N1 2006-2009 04
039 88979640 CABLE, P/SEAT RECL ACTR N1 (RHD) (EXPORT) 2007-2009 01
039 89042785 CABLE, P/SEAT RECL ACTR N1 2006-2009 01
040 12474329 БОЛТ, P/SEAT RECL (M8X1.25X30) (16.679) N1 2006-2009 AR
041 10399304 COVER, P/SEAT INR RECL FIN (EBONY) (16.165) N1 2006-2009 01
042 10399315 COVER, P/SEAT INR ADJR FRT FIN (EBONY) N1 2006-2009 01
043 10399318 COVER, P/SEAT OTR ADJR FRT FIN (EBONY) N1 2006-2009 01
044 10399307 COVER, P/SEAT OTR RECL FIN (EBONY) N1 2006-2009 01
045 15252123 RETAINER, P/SEAT CUSH (COVER) N1 2006-2009 02
045 89039183 RETAINER, P/SEAT CUSH (6MM) (NYLON, PUSH-IN TREE) (HARNESS) (2.480) N1 2006-2009 02
046 10388082 FRAME, P/SEAT BK CUSH N1 2006-2009 01
047 15252123 RETAINER, P/SEAT CUSH (PART OF 49) (COVER) N1 2006-2009 02
047 89039183 RETAINER, P/SEAT CUSH (PART OF 49) (6MM) (NYLON, PUSH-IN TREE) (HARNESS) (2.480) N1 2006-2009 02
048 15252123 RETAINER, P/SEAT CUSH (PART OF 49) (COVER) N1 2006-2009 02
048 89039183 RETAINER, P/SEAT CUSH (PART OF 49) (6MM) (NYLON, PUSH-IN TREE) (HARNESS) (2.480) N1 2006-2009 02
049 15815905 PANEL, P/SEAT BK CUSH FIN (INCLS 47, 48) N1 2006-2009 01
050 15875355 POCKET, P/SEAT BK CUSH MAP (EBONY) N1 2006-2009 01
051 10399280 SUPPORT, P/SEAT H/RST (EBONY) (SLAVE) N1 (19I) 2006-2009 01
051 10399280 SUPPORT, P/SEAT H/RST (EBONY) (SLAVE) N1 (31I) 2006-2009 01
051 10399292 SUPPORT, P/SEAT H/RST (EBONY) (MASTER) (LOCKING) N1 (19I) 2006-2009 01
051 19122097 SUPPORT, P/SEAT H/RST (CASHMERE) (SLAVE) N1 (31I) 2006-2009 01
051 19122098 SUPPORT, P/SEAT H/RST (CASHMERE) (MASTER) (LOCKING) N1 (31I) 2006-2009 01
052 89046281 RING, F/SEAT CUSH CVR HOG (15.035) N153 2006-2009 AR
K01 15299598 MODULE KIT, INFL RST FRT PASS PRESENCE (W/ SEN) (INCLS 7-9, 18) (POWER) (W/PAD) N1 (06) 2006-2008 01
K01 19208116 MODULE KIT, INFL RST FRT PASS PRESENCE (W/ SEN) (INCLS 7-9, 18) N1 (AR9, RHD) (EXPORT) 2007-2009 01
K01 20773525 MODULE KIT, INFL RST FRT PASS PRESENCE (W/ SEN) (INCLS 7-9, 18) (MANUAL) (W/PAD) N1 2006-2009 01
