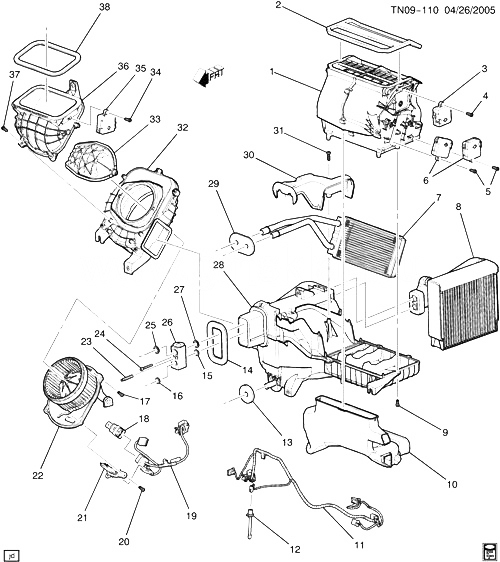

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25816734 |
CASE, AIR DISTR |
N153 (06) (EXC RHD) |
2008-2008 |
01 |
| 002 |
|
SEAL, AIR DISTR CASE (*KIT3) |
|
2007-2010 |
|
| 003 |
10397365 |
ACTUATOR, MODE VLV (ACDelco #15-73200) |
N1 |
2006-2010 |
01 |
| 004 |
11561840 |
БОЛТ, MODE VLV ACTR (9.211)
| N1 |
2006-2010 |
03 |
|
| 005 |
11561840 |
БОЛТ, TEMP VLV ACTR (9.211)
| N1 |
2006-2010 |
06 |
|
| 006 |
10397365 |
ACTUATOR, TEMP VLV (ACDelco #15-73200) |
N1 |
2006-2010 |
AR |
| 007 |
10397108 |
CORE, HTR (8.845) (ACDelco #15-63234)
| N1 (EXC RHD) |
2007-2010 |
01 |
|
| 008 |
25816733 |
EVAPORATOR, A/C (ACDelco #15-63229)
| N1 (EXC RHD) |
2007-2010 |
01 |
|
| 009 |
11561840 |
БОЛТ, A/C EVPR CASE
| N1 |
2006-2010 |
09 |
|
| 010 |
15869562 |
DUCT, FLR AIR OTLT |
N1 (EXC RHD) |
2007-2010 |
01 |
| 011 |
15883325 |
HARNESS, A/C MDL WRG |
N1 (EXC RHD) |
2007-2009 |
01 |
| 012 |
10397366 |
ДАТЧИК, A/C REFRIG TEMP (ACDelco #15-50442) |
N1 |
2006-2010 |
01 |
| 013 |
|
SEAL, HTR ; A/C EVPR ; BLO MDL DRN TUBE (*KIT2) |
|
2007-2010 |
|
| 014 |
|
SEAL, A/C EVPR TUBE (*KIT2) |
|
2007-2010 |
|
| 015 |
52474373 |
SEAL, A/C EVPR FTG (O RING) (METAL/RUBBER) (19MM OD X 11MM ID, 1/2 IN DIA) (*KIT1) (ACDelco #15-31055)
| N153 (06) |
2006-2010 |
01 |
|
| 016 |
52474373 |
SEAL, A/C CMPR ; CNDSR HOSE (METAL/RUBBER) (19MM OD X 11MM ID, 1/2 IN DIA) (*KIT1) (ACDelco #15-31055)
| N153 (06) |
2006-2010 |
01 |
|
| 017 |
11561840 |
БОЛТ, BLO MOT (9.211)
| N153 (06) |
2006-2008 |
03 |
|
| 018 |
12088594 |
RELAY, MULTIUSE (1 BOLT HOLE, 5 TERM, SKIRTED) (4.720) (ACDelco #12088594) |
N1 |
2006-2010 |
01 |
| 018 |
12088596 |
RELAY, MULTIUSE (4.720) |
N1 |
2008-2010 |
01 |
| 019 |
25867517 |
HARNESS, BLO MOT RES |
N153 (06) (EXC RHD) |
2007-2010 |
01 |
| 020 |
11561840 |
БОЛТ, BLO MOT RES (9.211)
| N1 |
2006-2010 |
02 |
|
| 021 |
10397098 |
RESISTOR, BLO MOT (9.215) (ACDelco #15-80647) |
N1 |
2006-2010 |
01 |
| 021 |
10397098 |
RESISTOR, BLO MOT (ACDelco #15-80647) |
N1 |
2006-2010 |
01 |
| 022 |
10397097 |
MOTOR, BLO (ACDelco #15-80578) |
N1 (EXC RHD) |
2006-2010 |
01 |
| 022 |
10397097 |
MOTOR, BLO (8.855) (ACDelco #15-80578) |
N1 (EXC RHD) |
2006-2010 |
01 |
| 023 |
11561839 |
STUD, A/C EVPR HOSE (*KIT1) (9.190) |
N1 |
2006-2010 |
01 |
| 024 |
11561841 |
БОЛТ, A/C EVPR TXV (*KIT1) |
N1 |
2006-2010 |
02 |
| 025 |
52474373 |
SEAL, A/C CMPR HOSE (METAL/RUBBER) (19MM OD X 11MM ID, 1/2 IN DIA) (*KIT1) (ACDelco #15-31055)
| N153 (06) |
2006-2010 |
03 |
|
| 026 |
|
VALVE, A/C EVPR THERMAL EXPN (*KIT1) |
|
2007-2010 |
|
| 027 |
52474373 |
SEAL, A/C EVPR FTG (O RING) (METAL/RUBBER) (19MM OD X 11MM ID, 1/2 IN DIA) (*KIT1) (ACDelco #15-31055)
| N153 (06) |
2006-2010 |
01 |
|
| 028 |
10397361 |
CASE, A/C EVPR LWR |
N1 (EXC RHD) |
2007-2010 |
01 |
| 029 |
|
SEAL, HTR CORE (*KIT2) |
|
2007-2010 |
|
| 030 |
10397360 |
COVER, HTR |
N1 (EXC RHD) |
2007-2010 |
01 |
| 031 |
11561840 |
БОЛТ, HTR CVR (9.211)
| N1 |
2006-2010 |
02 |
|
| 032 |
15263263 |
BAFFLE, AIR INL HSG |
N1 (EXC RHD) |
2006-2010 |
01 |
| 033 |
10397101 |
VALVE, AIR INL |
N1 (EXC RHD) |
2007-2010 |
01 |
| 034 |
11561840 |
БОЛТ, AIR INL VLV ACTR (9.211)
| N1 |
2006-2010 |
03 |
|
| 035 |
10397102 |
ACTUATOR, AIR INL VLV (ACDelco #15-73199) |
N1 |
2006-2010 |
01 |
| 036 |
10397100 |
INLET, AIR (HEATER ; A/C MODULE) |
N1 (EXC RHD) |
2007-2010 |
01 |
| 037 |
11561840 |
БОЛТ, AIR DISTR CASE (9.211)
| N1 |
2006-2010 |
04 |
|
| 038 |
|
SEAL, AIR INL (*KIT2) |
|
2007-2010 |
|
| K01 |
15871702 |
VALVE KIT, A/C EVPR THERMAL EXPN (INCLS 15, 16, 23-27) (ACDelco #15-50691) |
N153 (06) |
2006-2008 |
01 |
| K02 |
10397393 |
SEAL KIT, HTR ; A/C EVPR ; BLO MDL (INCLS 13, 14, 29, 38) |
N1 |
2006-2010 |
01 |
| K03 |
15837387 |
SEAL KIT, AIR DISTR (INCLS 2) |
N1 |
2006-2010 |
01 |
