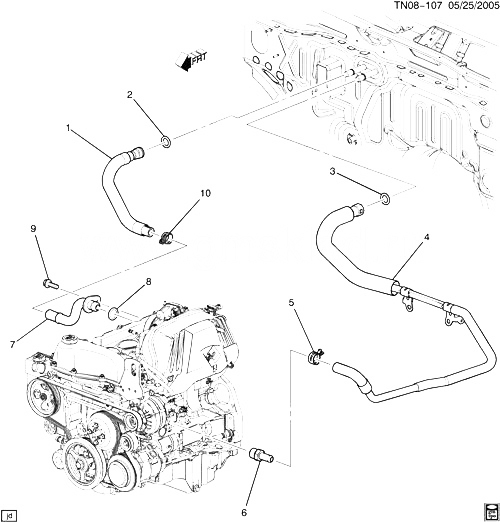

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25965315 |
HOSE, HTR OTLT |
N153 (06) (LLR, JJA) (EXC RHD) |
2007-2008 |
01 |
| 002 |
12575032 |
SEAL, HTR OTLT PIPE (O RING) |
N1 |
2006-2008 |
01 |
| 003 |
12575032 |
SEAL, HTR INL PIPE (O RING) |
N1 |
2006-2008 |
01 |
| 004 |
25965314 |
HOSE, HTR INL (W/O CLAMPS) |
N153 (06) (LLR, JJA) (EXC RHD) |
2007-2008 |
01 |
| 005 |
11517133 |
CLAMP, SPRING, 22-26MM, 24 NOM., BLK (HTR INL HOSE)
|
2006-2008 |
01 |
|
| 006 |
12567908 |
FITTING, HTR OTLT HOSE |
N1 |
2006-2008 |
01 |
| 007 |
12564053 |
PIPE, HTR INL (INCLS 8) |
N1 |
2006-2008 |
01 |
| 008 |
12575032 |
SEAL, HTR INL PIPE (O RING) (PART OF 7) |
N1 |
2006-2008 |
01 |
| 009 |
11517518 |
БОЛТ, HFH, M6X1X20, 17.9 THD, 14.2 O.D., 9.8, TIN ZN (HTR INL PIPE) (ACDelco #11517518)
|
2006-2008 |
01 |
|
| 010 |
11517136 |
CLAMP, HOSE SPR, 27 NOM, 25.2 MIN-28.9 MAX, 15MM WIDE, BLACK (HTR OTLT HOSE) |
|
2006-2008 |
01 |
