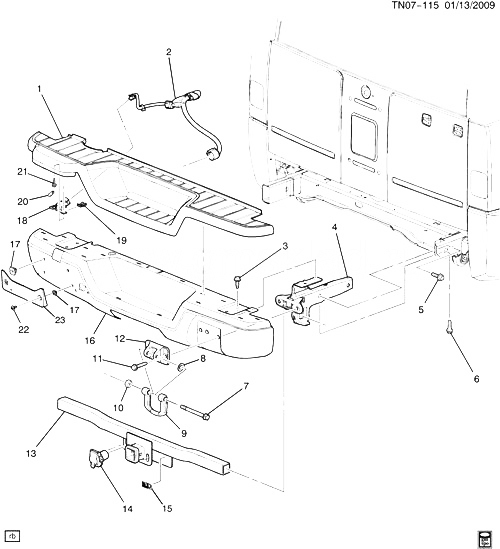

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15794048 |
PAD, БАМПЕР ЗАДНИЙ STEP
| N1 (06) |
2008-2010 |
01 |
|
| 002 |
15834718 |
HARNESS, RR LIC PLT LP WRG |
N153 (06) (EXC BRM, UVC, Z82) |
2008-2010 |
01 |
| 002 |
15834719 |
HARNESS, RR LIC PLT LP WRG
| N153 (06) (Z82) (EXC BRM, UVC) |
2008-2008 |
01 |
|
| 002 |
15897495 |
HARNESS, RR LIC PLT LP WRG |
N153 (06) (UVC, Z82) (EXC BRM) |
2008-2008 |
01 |
| 003 |
11516328 |
БОЛТ, HFH, M10X1.5X30, 22 O.D., HDR PT, 10.9, 7114M (RR BPR IMP BAR BRKT)
|
2008-2010 |
06 |
|
| 004 |
15794060 |
BRACKET, БАМПЕР ЗАДНИЙ IMP BAR (PART OF 13)
| N1 (06) |
2008-2010 |
01 |
|
| 004 |
15794061 |
BRACKET, БАМПЕР ЗАДНИЙ IMP BAR (PART OF 13)
| N1 (06) |
2008-2010 |
01 |
|
| 005 |
11561075 |
BOLT-HEX W/CON WA, M14X2X45, 21.18 THD, 32 OD, 10.9, GMW3359, M-PT, ADHES (RR BPR IMP BAR)
|
2008-2010 |
04 |
|
| 006 |
11517387 |
BOLT HEX HD W/FLWA, M12X1.75X45 (RR BPR IMP BAR) |
|
2008-2010 |
02 |
| 007 |
11561379 |
BOLT- HFH, M16X2X165, 35 THD, 30.5 OD, 10.9, GM6046M (BLACK), HDR PT. (RR TOW HOOK)
|
2008-2010 |
01 |
|
| 008 |
15204555 |
WASHER, RR TOW HOOK
| N1 |
2008-2010 |
02 |
|
| 009 |
15817909 |
HOOK, RR TOW
| N1 |
2008-2010 |
01 |
|
| 010 |
11561140 |
NUT-HFH, M16X2, 18.2 THK, 30.5 OD, 10 STL, GM6046M (BLACK), PREV TORQ (RR TOW HOOK)
|
2008-2010 |
01 |
|
| 011 |
11561764 |
BOLT - HEX W/FL WA, M12X1.75X65, 47.5 THD, 24 OD, 10.9, GMW4205 (RR TOW HOOK BRKT)
|
2008-2010 |
02 |
|
| 012 |
15826713 |
BRACKET, RR TOW HOOK
| N1 |
2008-2010 |
02 |
|
| 013 |
25854903 |
PLATFORM, TRLR WT DISTR HITCH (INCLS 4, 15) (USE ON VEHICLES BUILT ON OR AFTER SEPT 10, 2007) (MUST USE W/LABEL 15233158 ON 2006 2007 MODELS ONLY. FOR 2008 USE T/W 25854904)
| N153 (06) (Z82) (EXC T79) |
2008-2010 |
01 |
|
| 014 |
12191503 |
RECEPTACLE, TRLR RR WRG HARN (W/DOOR)
| N153 (06) (Z82) (EXC BRM) |
2008-2010 |
01 |
|
| 015 |
15848449 |
LABEL, TRLR HITCH LOAD INFO (PART OF 13) |
N153 (06) (Z82) |
2008-2010 |
01 |
| 016 |
15850414 |
ПАНЕЛЬ, БАМПЕР ЗАДНИЙ IMP
| N1 (06) (Z82) (EXC BRM, UVC) |
2008-2010 |
01 |
|
| 016 |
15850415 |
ПАНЕЛЬ, БАМПЕР ЗАДНИЙ IMP |
N1 (06) (EXC BRM, UVC, Z82) |
2008-2010 |
01 |
| 016 |
15906921 |
ПАНЕЛЬ, БАМПЕР ЗАДНИЙ IMP
| N1 (06) (UVC, Z82) |
2008-2008 |
01 |
|
| 017 |
03907444 |
NUT, PUSH IN, SQUARE, UN THD, M9.5 SQ HOLE, NYLON (RR LIC PLT) |
|
2008-2010 |
02 |
| 018 |
15873660 |
LAMP, RR LIC PLT (INCLS 20) |
N153 (06) (EXC BRM) |
2008-2010 |
01 |
| 019 |
25605716 |
NUT, RR LIC PLT LP (13.8 X 14.9, 15.3) (U-SHAPED) (8.133) |
N153 (06) |
2008-2010 |
02 |
| 020 |
09421330 |
BULB, TRADE#194, 12V, 2CP (PART OF 18) (ACDelco #L194) |
|
2008-2010 |
01 |
| 021 |
11589015 |
БОЛТ, HWH W/FL WA M4.2X1.41X20, 12.5 O.D., DOG PT, 6010M, 7253M (RR LIC PLT LP)
|
2008-2010 |
02 |
|
| 022 |
09423101 |
SCREW, TAP, M6.3X1.81X16, 14.55 O.D., 7114M, PZ0R (RR LIC PLT) |
|
2008-2010 |
04 |
| 023 |
15850417 |
BRACKET, RR LIC PLT
| N153 (06) |
2008-2010 |
01 |
|
