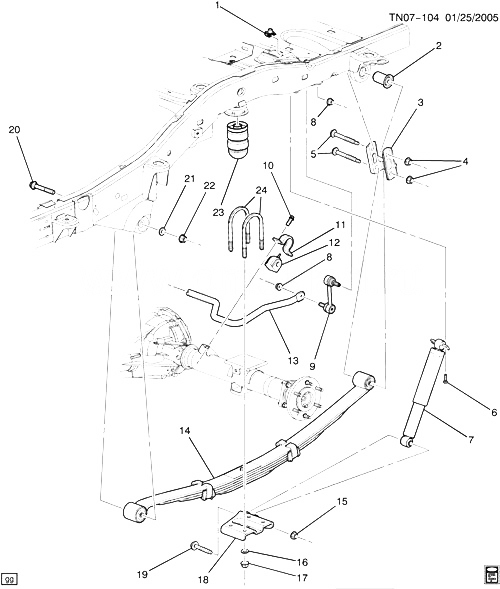

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15658213 |
NUT, RR S/ABS (UPR) (M8X1.25, 11.1) (U-NUT) |
N1 |
2006-2010 |
04 |
| 002 |
14027938 |
BUSHING, RR SPR SHKL (REAR)
| N1 |
2006-2010 |
02 |
|
| 003 |
15166223 |
SHACKLE, RR SPR
| N1 (06) |
2006-2008 |
02 |
|
| 004 |
11516382 |
NUT, RR SPR SHKL (M14X2X15) (W/O J CLIP RETAINER) (8.917)
| N1 |
2006-2010 |
04 |
|
| 005 |
11588857 |
БОЛТ, RR SPR SHKL (M14X2X110) (8.900)
| N1 |
2006-2010 |
04 |
|
| 006 |
11609733 |
БОЛТ, HEX W/CON WA, M8X1.25X30, 20 THD, 24 OD, 10.9, GMW4205, MAT POINT (RR S/ABS)
|
2006-2010 |
04 |
|
| 007 |
15295275 |
ABSORBER, RR SHK (ACDelco #540-239)
| N153 (06) (LLR, Z85) (EXC FG2, HH3) |
2008-2010 |
02 |
|
| 007 |
15295276 |
ABSORBER, RR SHK (ACDelco #540-240) |
N153 (06) (LLR, ZM6) (EXC FG2) |
2008-2010 |
02 |
| 007 |
15789880 |
ABSORBER, RR SHK (ACDelco #540-249) |
N153 (06) (LLR, HH3, Z85) |
2008-2010 |
02 |
| 007 |
15859658 |
ABSORBER, RR SHK (ACDelco #540-321) |
N153 (06) (LH8, Z85) (EXC FG2) |
2008-2009 |
04 |
| 007 |
15859659 |
ABSORBER, RR SHK (ACDelco #540-322) |
N153 (06) (LH8, ZM6) (EXC FG2) |
2008-2008 |
02 |
| 007 |
19241362 |
ABSORBER, RR SHK (GAS CHARGED) |
N153 (06) (LH8) |
2008-2008 |
01 |
| 007 |
19241362 |
ABSORBER, RR SHK (GAS CHARGED) |
N153 (06) (LLR) |
2008-2008 |
01 |
| 007 |
24300081 |
ABSORBER, RR SHK (ACDelco #540-426) |
N153 (06) (LH8, LLR, FG2, Z85) (EXC HH3) |
2008-2009 |
02 |
| 007 |
24300081 |
ABSORBER, RR SHK (ACDelco #540-426) |
N153 (06) (LH8, LLR, FG2, ZM6) |
2008-2009 |
02 |
| 007 |
25940477 |
ABSORBER, RR SHK (ACDelco #540-523) |
N153 (06) (LH8, ZM6) (EXC FG2) |
2008-2008 |
02 |
| 008 |
11517996 |
ГАЙКА, HFH, M10X1.5, 11.2THK, 21.5 O.D., 7111M (RR STAB SHF LINK)
|
2006-2010 |
04 |
|
| 009 |
15120888 |
LINK, RR STAB SHF (LINK ONLY) (*KIT1)
| N1 |
2006-2008 |
02 |
|
| 010 |
11518294 |
BOLT-HFH, M10X1.5X29.5, 17.08 OD, 6202M, 4435M, TAP, TR-PT (RR STAB SHF)
|
2006-2010 |
04 |
|
| 011 |
15086908 |
CLAMP, RR STAB SHF INSL |
N1 |
2006-2010 |
02 |
| 012 |
15086904 |
INSULATOR, RR STAB SHF
| N1 |
2006-2008 |
02 |
|
| 013 |
15086902 |
SHAFT, RR STAB |
N1 |
2006-2008 |
01 |
| 014 |
25965051 |
SPRING, RR
| N1 |
2006-2008 |
02 |
|
| 015 |
11516382 |
ГАЙКА, HFH LK M14X2X15, 28 OD 10 7111M (RR S/ABS (LWR))
|
2006-2010 |
02 |
|
| 016 |
11610231 |
WASHER - FLAT, 15X32X4.45, SAE 1050-1080 STL, HRC 40-45, GMW3179 (RR SPR U BOLT)
|
2006-2010 |
08 |
|
| 017 |
11516382 |
NUT, RR SPR U BOLT (M14X2X15) (W/O J CLIP RETAINER) (8.917)
| N1 |
2006-2010 |
08 |
|
| 018 |
15295279 |
PLATE, RR SPR ANC |
N1 |
2006-2010 |
01 |
| 018 |
15295280 |
PLATE, RR SPR ANC
| N1 |
2006-2010 |
01 |
|
| 019 |
11518725 |
БОЛТ, HFH, M14X2.0X95, 45 THD, 34 OD, 10.9, 7114M, CONICAL SPRING WA (RR S/ABS (AT R/AXL))
|
2006-2010 |
02 |
|
| 020 |
11588857 |
БОЛТ, RR SPR (FRT) (M14X2X110) (8.900)
| N1 |
2006-2008 |
02 |
|
| 021 |
11610231 |
WASHER - FLAT, 15X32X4.45, SAE 1050-1080 STL, HRC 40-45, GMW3179 (RR SPR)
|
2006-2010 |
02 |
|
| 022 |
11516382 |
NUT, RR SPR (FRT) (M14X2X15) (W/O J CLIP RETAINER) (8.917)
| N1 |
2006-2010 |
02 |
|
| 023 |
15088371 |
SPRING, RR AUX |
N1 |
2006-2010 |
02 |
| 024 |
11610227 |
BOLT U, RR SPR (M14X2X183.3) (U, ROUND HEAD) (8.900)
| N1 |
2006-2010 |
04 |
|
| K01 |
19168015 |
LINK KIT, RR STAB SHF (INCLS 9) (INCLS LINK AND NUT) |
N1 |
2006-2008 |
02 |
