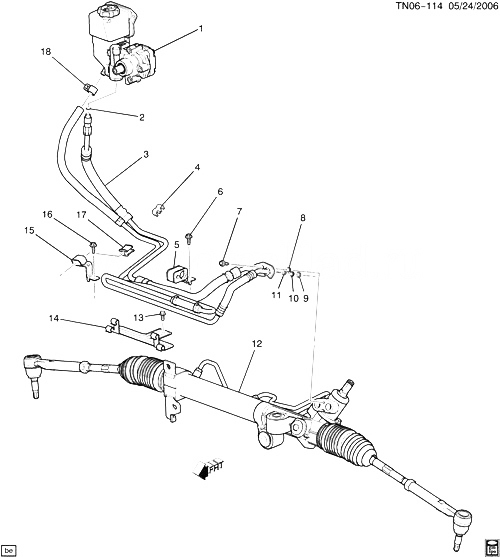

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25977712 |
PUMP, P/S (SEE GROUP 06.000 НАСОС РУЛЕВОГО УПРАВЛЕНИЯ ASSEMBLY FOR DETAILED ILLUSTRATED VIEW) |
N1 (06) (LLR) |
2008-2010 |
01 |
| 002 |
19122176 |
SEAL, P/S GR OTLT HOSE (O-RING) (PART OF 3) |
N153 (06) |
2007-2008 |
01 |
| 003 |
94718481 |
HOSE, P/S GR INL ; OTLT (INCLS 2, 4-11, 13-18)
| N153 (06) (LLR) (EXC RHD) |
2008-2008 |
01 |
|
| 004 |
15068848 |
CLIP, P/S PUMP INL PIPE (PART OF 3) (HOLDS 2-9.5MM (3/8) DIA PIPES, CLIP TOP) (4.128) |
N153 (06) (LLR) |
2007-2008 |
01 |
| 005 |
11516255 |
CLAMP, SPRING BAND HOSE (M16X1) (PART OF 3) |
|
2007-2010 |
01 |
| 006 |
|
БОЛТ, P/S GR INL ; OTLT PIPE CLIP (PART OF 3) |
|
2007-2010 |
|
| 007 |
11516484 |
БОЛТ, P/S GR INL ; OTLT PIPE CLIP BRKT (PART OF 3) (8.900) |
|
2007-2010 |
|
| 008 |
|
RETAINER, P/S GR INL ; OTLT PIPE (PART OF 3) |
|
2007-2010 |
|
| 009 |
15869849 |
SEAL, P/S GR INL HOSE (O RING) (PART OF 3) (6.609)
| N1 |
2007-2010 |
01 |
|
| 010 |
|
GASKET, P/S GR INL HOSE FTG (PART OF 3) |
|
2007-2010 |
|
| 011 |
19122175 |
SEAL, P/S GR INL PIPE (O RING) (PART OF 3) |
N1 |
2007-2010 |
01 |
| 012 |
94725465 |
GEAR, STRG (W/ STRG LNKG TIE ROD) (SEE GROUP 06.000 STEERING GEAR ASSEMBLY FOR DETAILED ILLUSTRATED VIEW) |
N1 (EXC RHD) |
2007-2008 |
01 |
| 013 |
11516424 |
БОЛТ, HFH, M6X1X25, 14.2 O.D., HDR PT, 9.8, ZE (PART OF 3)
|
2007-2010 |
03 |
|
| 014 |
|
BRACKET, P/S GR INL HOSE ; OTLT PIPE (PART OF 3) |
|
2007-2010 |
|
| 015 |
|
BRACKET, P/S GR INL ; OTLT PIPE CLIP (PART OF 3) |
|
2007-2010 |
|
| 016 |
11516424 |
БОЛТ, HFH, M6X1X25, 14.2 O.D., HDR PT, 9.8, ZE (PART OF 3)
|
2007-2010 |
01 |
|
| 017 |
|
CLAMP, P/S GR INL ; OTLT PIPE (PART OF 3) |
|
2007-2010 |
|
| 018 |
11516255 |
CLAMP, SPRING BAND HOSE (M16X1) (PART OF 3) |
|
2007-2010 |
01 |
