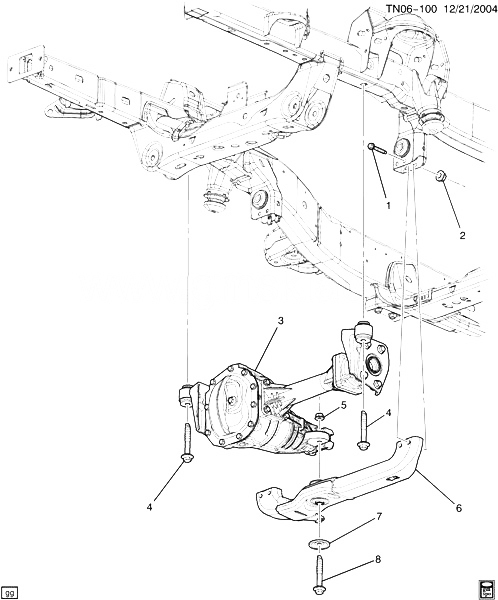

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
11589341 |
BOLT - HFH, M10X1.5X69.9, 28.35 THD, 22.3 OD, 10.9, GMW3359, M-PT. (TRANS SUPT C/MBR)
|
2006-2010 |
04 |
|
| 002 |
11517996 |
ГАЙКА, HFH, M10X1.5, 11.2THK, 21.5 O.D., 7111M (FRM BR)
|
2006-2010 |
04 |
|
| 003 |
|
CARRIER, FRT DIFF (4.56 RATIO) (SEE GROUP 06.000 ДИФФЕРЕНЦИАЛ-ПЕРЕДНЯЯ ОСЬ FOR DETAILED ILLUSTRATED VIEW) (6.008) |
|
2006-2010 |
|
| 004 |
11588419 |
БОЛТ, FRT DIFF CARR (SILVER) (M14X2X105, 10.9, 38THD) (REDUCED BODY) (8.900) |
N1 |
2006-2010 |
02 |
| 005 |
11516078 |
NUT, FRT DIFF CARR (M12X1.75X18) (8.917)
| N1 (LH8, GT5) |
2008-2009 |
01 |
|
| 005 |
11516078 |
NUT, FRT DIFF CARR (M12X1.75X18) (8.917)
| N1 (LLR, HC4) |
2008-2010 |
01 |
|
| 006 |
|
BRACE, FRM (SEE GROUP 07.000 FRAME FOR DETAILED ILLUSTRATED VIEW) |
|
2006-2010 |
|
| 007 |
15291981 |
WASHER, FRT DIFF CARR
| N1 |
2006-2009 |
01 |
|
| 008 |
11518692 |
BOLT - HFH, M12X1.75X125 (FRT DIFF CARR) |
|
2006-2010 |
02 |
