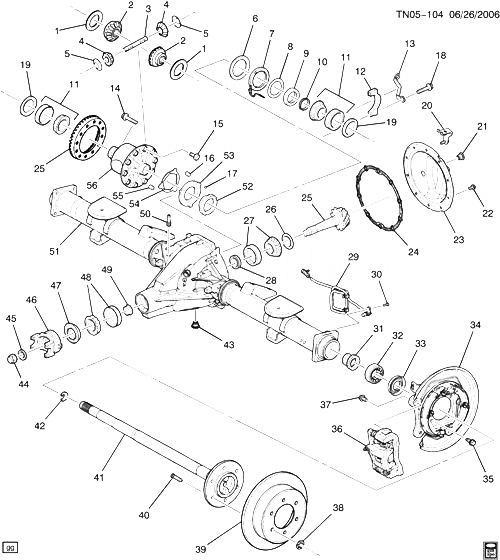

(TN05-104) - 2006-2010 N1 ЗАДНЯЯ ОСЬ (ПОДВЕСКА ВНЕДОРОЖНИКА ZM6) HUMMER - H3 2008

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 10397520 SHIM, DIFF SI GR (.075MM) N1 2006-2010 02
001 10397521 SHIM, DIFF SI GR (.080MM) N1 2006-2010 02
001 10397522 SHIM, DIFF SI GR (.085MM) N1 2006-2010 02
001 10397523 SHIM, DIFF SI GR (.090MM) N1 2006-2010 02
001 10397524 SHIM, DIFF SI GR (.095MM) N1 2006-2010 02
001 10397525 SHIM, DIFF SI GR (1.00MM) N1 2006-2010 02
001 10397526 SHIM, DIFF SI GR (1.05MM) N1 2006-2010 02
001 10397527 SHIM, DIFF SI GR (1.10MM) N1 2006-2010 02
001 10397528 SHIM, DIFF SI GR (1.15MM) N1 2006-2010 02
001 10397529 SHIM, DIFF SI GR (1.20MM) N1 2006-2010 02
001 10397530 SHIM, DIFF SI GR (1.25MM) N1 2006-2010 02
002 GEAR, DIFF SI (PART OF 56) (*KIT2) 2006-2010
003 26056109 SHAFT, DIFF P/GR (RR AXLE) (PART OF 56) (124.84MM) (*KIT2) N1 (ZM6) 2006-2008 01
004 GEAR, DIFF PINION (PART OF 56) (*KIT2) 2006-2010
005 14048388 WASHER, DIFF P/GR THR (PART OF 56) (.820 I.D.X1.69 O.D.) (EATON EDS-99601, .10 LIP) (*KIT2) N1 (G94) 2006-2009 02
006 ARMATURE, SDR DRV (PART OF 56) 2006-2010
007 10360493 LOCK, ELEK LKG DIFF COIL (PART OF 56) N1 (ZM6) 2006-2010 01
008 BEARING, DIFF (PART OF 56) (*KIT1) 2006-2010
009 RACE, DIFF BRG (PART OF 56) (*KIT1) 2006-2010
010 10360494 RING, DIFF BRG RET (PART OF 56) (*KIT1) N1 (ZM6, Z85) 2006-2010 01
011 25824250 BEARING, DIFF (ACDelco #S1380) N1 (ZM6) 2007-2008 02
012 CAP, DIFF BRG (PART OF 51) 2006-2010
013 10359784 BRACKET, DIFF LK C/VLV N1 2006-2010 01
014 25872305 БОЛТ, DIFF P/GR SHF LK (1 FOR RR AXLE/1 FOR FRT AXLE) (PART OF 56) (*KIT2) N1 2007-2010 02
015 12479028 БОЛТ, RR DIFF R/GR (7/16-20X7/8) (W/ADHESIVE) N1 2006-2008 10
016 SPRING, LKG DIFF CLU (PART OF 56) (*KIT1) 2006-2010
017 12479172 BEARING, ELEK LKG DIFF BALL (PART OF 56) (RR AXLE) (*KIT1) N1 2006-2010 04
018 БОЛТ, DIFF BRG CAP (PART OF 51) 2006-2010
019 03853759 SHIM KIT, DIFF BRG (.064-.070 THK) N1 2006-2010 01
019 03853760 SHIM KIT, DIFF BRG (.072-.078 THK) N1 2006-2010 01
019 03853761 SHIM KIT, DIFF BRG (.080-.086 THK) N1 2006-2010 01
019 03853762 SHIM KIT, DIFF BRG (.088-.094 THK) N1 2006-2010 01
019 03853912 SHIM KIT, DIFF BRG (.096-.100 THK) N1 2006-2010 01
019 03907088 SHIM KIT, DIFF BRG (.052-.056 THK) N1 2006-2010 01
019 03907089 SHIM KIT, DIFF BRG (.058-.063 THK) N1 2006-2010 01
019 03995791 SHIM KIT, DIFF BRG (.040-.044 THK) N1 2006-2010 01
019 03995792 SHIM KIT, DIFF BRG (.046-.050 THK) N1 2006-2010 01
019 12471362 SHIM KIT, DIFF BRG (1.016-1.118MM RANGE) (RR AXLE) N1 2006-2010 01
019 12471363 SHIM KIT, DIFF BRG (1.168-1.372MM RANGE) (RR AXLE) N1 2006-2010 01
019 12471364 SHIM KIT, DIFF BRG (1.422-1.626MM RANGE) (RR AXLE) N1 2006-2010 01
019 12471365 SHIM KIT, DIFF BRG (1.676-1.880MM RANGE) (RR AXLE) N1 2006-2010 01
019 12471366 SHIM KIT, DIFF BRG (1.930-2.134MM RANGE) (RR AXLE) N1 2006-2010 01
019 12471367 SHIM KIT, DIFF BRG (2.184-2.388MM RANGE) (RR AXLE) N1 2006-2010 01
019 12471368 SHIM KIT, DIFF BRG (2.438-2.540MM RANGE) (RR AXLE) N1 2006-2010 01
020 10360518 BRACKET, BRK PIPE N1 2006-2008 01
021 12479141 PLUG, DIFF CARR FILL (INCLS WASHER ; MAGNET) N1 2006-2009 01
022 12471307 БОЛТ, R/AXL HSG CVR (M8X1.25X20) N1 2006-2010 09
023 15860606 COVER, R/AXL HSG (COVER ONLY) N1 2006-2010 01
024 15860607 GASKET, R/AXL HSG CVR (10 BOLT HOLES) N1 2006-2010 01
025 10360523 GEAR KIT, DIFF RING ; PINION (INCLS 49) N1 (HC4) 2006-2008 01
025 25801718 GEAR KIT, DIFF RING ; PINION (INCLS 49) N1 (GT5) 2008-2008 01
026 12471330 SPACER, DIFF BRG (RR AXLE) (4.37-4.32MM THK) (5.650) N1 2006-2010 02
027 15286375 BEARING, DIFF DRV P/GR INR (INCLS CUP AND CONE) (ACDelco #S1371) (W/RR AXLE BROADCAST CODE JS1, JS2, ZK3, ZK4) (FOR 2ND DES SEE 25824251) N1 (1ST DES) 2008-2008 01
027 25824251 BEARING, DIFF DRV P/GR INR (ACDelco #S1381) (W/RR AXLE BROADCAST CODE DC6, DC7, DC8, DC9) (FOR 1ST DES SEE 15286375) N1 (2ND DES) 2008-2008 01
028 01394892 SHIM KIT, DIFF DRV P/GR BRG (.020-.024 THK) N1 2006-2010 01
028 01394893 SHIM KIT, DIFF DRV P/GR BRG (.025-.029 THK) N1 2006-2010 01
028 01394894 SHIM KIT, DIFF DRV P/GR BRG (.030-.034 THK) N1 2006-2010 01
028 01394895 SHIM KIT, DIFF DRV P/GR BRG (.035-.039 THK) N1 2006-2010 01
028 26043990 SHIM KIT, DIFF DRV P/GR BRG (.046-.050 THK) N1 2006-2010 01
028 26043991 SHIM KIT, DIFF DRV P/GR BRG (.040-.044 THK) N1 2006-2010 01
028 26043992 SHIM KIT, DIFF DRV P/GR BRG (.045-.049 THK) N1 2006-2010 01
029 15862988 ДАТЧИК, RR WHL SPD (ACDelco #15862988) N1 2006-2010 02
030 11569674 БОЛТ, RR WHL SPD SEN N1 (GT5, ZM6, Z85) 2008-2010 01
030 11569674 БОЛТ, RR WHL SPD SEN N1 (HC4, ZM6, Z85) 2008-2010 01
031 12479286 RING, WHL SPD SEN RELUCTOR (R/AXLE) N1 (HC4, Z85, ZM6) 2006-2010 02
031 12479286 RING, WHL SPD SEN RELUCTOR (R/AXLE) N1 (GT5, Z85, ZM6) 2008-2010 02
032 12479031 BEARING, R/AXL SHF (5.855) (ACDelco #RW20-10) N1 2006-2010 02
033 12471686 SEAL, R/AXL SHF (ACDelco #291-315) N1 2006-2010 02
034 SHIELD, RR BRK (SEE GROUP 04.000 PARKING BRK ASM FOR DETAILED ILLUSTRATED VIEW) 2006-2010
035 11509421 БОЛТ, M12X1.75X40 (RR BRK BKG PLT) 2006-2010 08
036 СУППОРТ, ЗАДНИЙ ТОРМОЗНОЙ (SEE GROUP 04.000 ТОРМОЗНОЙ СУППОРТ ЗАДНИЙ FOR DETAILED ILLUSTRATED VIEW) (4.667) 2006-2010
037 11589201 БОЛТ, RR BRK CLPR (M12 X 1.5 6G X 28.5) (8.900) N1 (HC4, ZM6, Z85) 2006-2010 04
037 11589201 БОЛТ, RR BRK CLPR (M12 X 1.5 6G X 28.5) (8.900) N1 (GT5, ZM6, Z85) 2008-2010 04
038 11502737 NUT, PUSH ON, M12X1.75, PC (RR BRK DRUM (PUSH ON)) 2006-2010 02
039 15111376 ROTOR, RR BRK (ACDelco #177-0994) N1 (HC4, ZM6, Z85) 2006-2010 02
039 15111376 ROTOR, RR BRK (ACDelco #177-0994) N1 (GT5, ZM6, Z85) 2008-2010 02
040 09595178 STUD, RR WHL (BOLT-ROUND HEAD, M12X1.5X40, W/SERRATIONS, GM6177M STL, GMW14) N1 2006-2010 12
041 15840082 SHAFT, R/AXL N1 (ZM6, Z85) 2006-2010 02
042 03833322 LOCK, R/AXL SHF (39.43 X 19.94MM) N1 2006-2010 02
043 12479141 PLUG, FRT DIFF CARR OIL DRN (INCLS WASHER ; MAGNET) (5.400) N1 (LH8, GT5) 2008-2009 01
043 12479141 PLUG, FRT DIFF CARR OIL DRN (INCLS WASHER ; MAGNET) (5.400) N1 (LLR, HC4) 2008-2009 01
044 88891763 NUT, DIFF DRV P/GR (RR AXLE) (PART OF 46) (M10) N1 2006-2010 01
045 00517900 WASHER, DIFF DRV P/GR (RR AXLE) (PART OF 46) (.890X1.625X.190) N1 2006-2010 01
046 12471689 YOKE KIT, DIFF DRV P/GR (INCLS 44, 45, 47) (INCLS NUT, SEAL, WASHER ; YOKE) (W/RR AXLE BROADCAST CODE JS1, JS2, ZK3, ZK4) (FOR 2ND DES SEE 19180533) N1 (1ST DES) 2008-2008 01
046 19180533 YOKE KIT, DIFF DRV P/GR (INCLS 44, 45, 47) (W/RR AXLE BROADCAST CODE DC6, DC7, DC8, DC9) (FOR 1ST DES SEE 12471689) N1 (2ND DES) 2008-2008 01
047 26064028 SEAL, DIFF DRV P/GR (2 PIECE PINION SEAL) (TRIPLE LIP) (PART OF 46) (RR AXLE) (W/RR AXLE BROADCAST CODE JS1, JS2, ZK3, ZK4) (FOR 2ND DES SEE 26064029) N1 (1ST DES) 2008-2008 01
047 26064029 SEAL, DIFF DRV P/GR (PART OF 46) (5.545) (W/RR AXLE BROADCAST CODE DC6, DC7, DC8, DC9) (FOR 1ST DES SEE 26064028) N1 (2ND DES) 2008-2008 01
048 15286376 BEARING, DIFF DRV P/GR OTR (RR AXLE) (TIMKEN) (M 88048-M 88010) (5.484) (ACDelco #S1372) N1 2006-2010 01
049 12479162 SPACER, DIFF DRV P/GR BRG (RR AXLE) (PART OF 25) (.062-.068 THK) N1 (HC4) 2006-2010 01
049 12479162 SPACER, DIFF DRV P/GR BRG (RR AXLE) (PART OF 25) (.062-.068 THK) N1 (GT5) 2008-2010 01
050 26062696 CONNECTOR, R/AXL VENT HOSE (STRAIGHT 43.5MM) (W/VIBRASEAL ON THREADS) N1 2006-2010 01
051 15927001 HOUSING, R/AXL (INCLS 12, 18) (W/RR AXLE BROADCAST CODE JS2, ZK3) (FOR 2ND DES SEE 25958397) N1 (ZM6) (1ST DES) 2008-2008 01
051 25958397 HOUSING, R/AXL (INCLS 12, 18) (W/RR AXLE BROADCAST CODE DC6, DC9) (FOR 1ST DES SEE 15927001) N1 (ZM6) (2ND DES) 2008-2008 01
052 PLATE, ELEK LKG DIFF BALL BRG OUTBOARD (PART OF 56) (*KIT1) 2006-2010
053 PLATE, ELEK LKG DIFF BALL BRG INBOARD (PART OF 56) (*KIT1) 2006-2010
054 RETAINER, LKG DIFF CLU SPR (PART OF 56) (*KIT1) 2006-2010
055 PIN, DIFF CARR LOC (PART OF 56) (*KIT1) 2006-2010
056 10359783 DIFFERENTIAL, (INCLS 2-10, 14, 16, 17, 52-55) (RR AXLE) N1 (ZM6) 2006-2008 01
056 10359783 DIFFERENTIAL, (INCLS 2-10, 14, 16, 17, 52-55) (RR AXLE) (5.510) N1 (ZM6) 2006-2008 01
K01 10360464 DIFFERENTIAL KIT, ELEK LKG (INCLS 8-10, 16, 17, 52-55) N1 (ZM6, Z85) 2006-2010 01
K02 25958394 GEAR KIT, DIFF SI ; PINION (INCLS 2-5, 14) (RR AXLE) N1 (G94, HC4) 2006-2008 01
