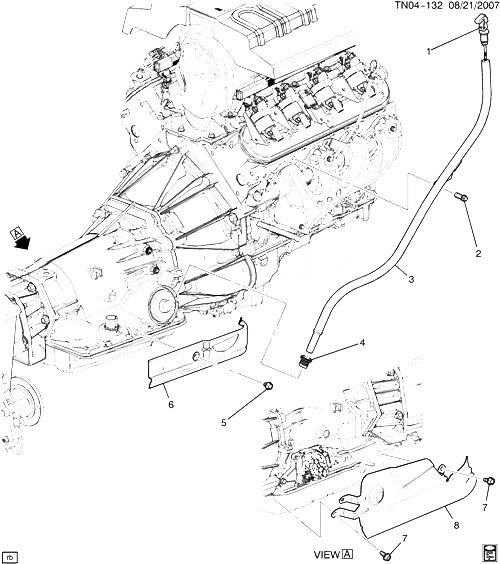

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15798352 |
INDICATOR, TRANS FLUID LVL |
N1 (M30) |
2008-2010 |
01 |
| 002 |
11588736 |
БОЛТ, HFH, M10X1.5X20, 10 THD, 22.3 O.D., 10.9, GMW3359 (TRANS FLUID FIL TUBE) |
|
2008-2010 |
01 |
| 003 |
15854671 |
TUBE, TRANS FLUID FIL |
N1 (LH8, M30) (EXC RHD) |
2008-2009 |
01 |
| 004 |
01259475 |
SEAL, TRANS FLUID FIL TUBE (ACDelco #1259475) |
N1 (M30) |
2008-2010 |
01 |
| 005 |
11515754 |
БОЛТ, HVY HEX HD, M8X1.25X12, 18 O.D., 10.9, ZE (TRANS H/SHLD) |
|
2008-2010 |
02 |
| 006 |
15205182 |
SHIELD, TRANS (MOUNTS TO RH SIDE OF TRANS) (3.690) |
N1 (LH8, M30) |
2008-2009 |
01 |
| 007 |
11519505 |
BOLT-HEX HD W/CON WA, M8X1.25X22, 18.74 THD, 17OD, 8.8, GMW3359, HDR PT. (TRANS H/SHLD) |
|
2008-2010 |
03 |
| 008 |
25964432 |
SHIELD, TRANS HT |
N1 (LH8, JJA) |
2008-2008 |
01 |
