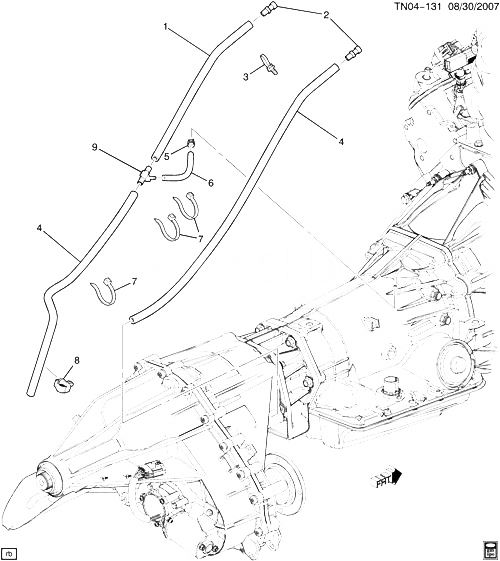

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25900506 |
HOSE, TRANS VENT (INCLS 2-9) |
N1 (LH8, M30) |
2008-2009 |
01 |
| 002 |
25892279 |
VENT, A/TRNS (PART OF 1) (4.510) (ACDelco #25892279)
| N1 (M30) |
2008-2010 |
02 |
|
| 003 |
11519726 |
RETAINER, ROSEBUD TYPE, NYL 6/6, AXLE VENT TUBE (PART OF 1) |
|
2008-2010 |
01 |
| 004 |
09438315 |
HOSE, FUEL-OIL EVAP (PART OF 1) |
|
2008-2010 |
AR |
| 005 |
01648216 |
CLAMP, WORM GEAR, HEX-SLOT SCREW, 1/4X5/8, .320 WIDE BAND, BLACK (PART OF 1) (ACDelco #1648216) |
|
2008-2010 |
01 |
| 006 |
12387951 |
HOSE, 3/16X25, GM6198 (PART OF 1) |
|
2008-2010 |
AR |
| 007 |
19152842 |
STRAP, TRANS VENT HOSE (PART OF 1) (BLACK) |
N1 (LH8, M30) |
2008-2009 |
03 |
| 008 |
11519726 |
RETAINER, ROSEBUD TYPE, NYL 6/6, AXLE VENT TUBE (PART OF 1) |
|
2008-2010 |
01 |
| 009 |
89048550 |
CONNECTOR, TRANS VENT HOSE (PART OF 1) (Y-CONN) |
N1 (M30) |
2008-2010 |
01 |
