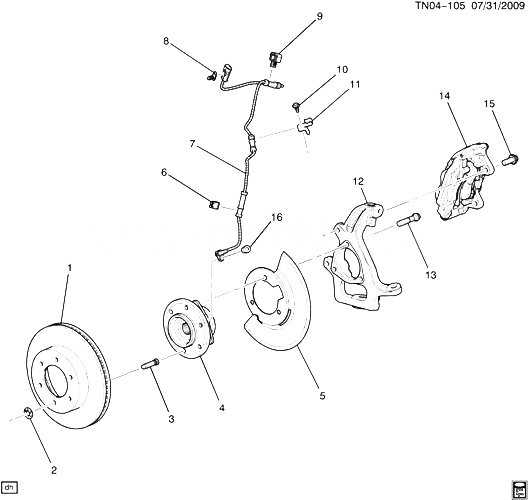

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15202106 |
ROTOR, FRT BRK (ACDelco #177-0997)
| N1 |
2006-2010 |
02 |
|
| 002 |
11502737 |
NUT, PUSH ON, M12X1.75, PC (FRT BRK ROT (PUSH ON)) |
|
2006-2010 |
02 |
| 003 |
11588655 |
STUD, FRT WHL (PART OF 4)
| N1 |
2006-2009 |
12 |
|
| 004 |
15874836 |
BEARING, FRT WHL (INCLS 3, 6-11, 16) (ACDelco #FW314)
| N1 |
2006-2008 |
02 |
|
| 005 |
15113909 |
SHIELD, FRT BRK |
N1 |
2006-2008 |
01 |
| 005 |
15113911 |
SHIELD, FRT BRK |
N1 |
2006-2008 |
01 |
| 006 |
15175330 |
CLIP, WHL SPD SEN WIRE (PART OF 4, 7) |
N1 |
2006-2010 |
02 |
| 007 |
15874864 |
SENSOR KIT, FRT WHL SPD (PART OF 4) (INCLS 6, 8-11, 16) (ACDelco #D1912F) |
N1 |
2008-2008 |
02 |
| 008 |
12186353 |
RETAINER, WHL SPD SEN WRG HARN CONN (PART OF 4, 7) (BLACK) (7.00/6.25 DIA, SLIDING) |
N1 |
2006-2010 |
02 |
| 009 |
15715954 |
CLIP, WHL SPD SEN WIRE (PART OF 4, 7) (TREE FITS 6.5 HOLE) (HOLDS (1) 10.5MM GROMMET ROUTING (1) 6.35 SPD SEN CBL) |
N1 |
2006-2010 |
02 |
| 010 |
11561674 |
БОЛТ, HEX W/FL WA, M6X1X20, 12 THD, 24 OD, 9.8, GMW3359, M-PT (PART OF 4, 7)
|
2006-2010 |
02 |
|
| 011 |
25792759 |
BRACKET, WHL SPD SEN (PART OF 4, 7) |
N1 |
2006-2010 |
01 |
| 011 |
25792760 |
BRACKET, WHL SPD SEN (PART OF 4, 7) |
N1 |
2006-2010 |
01 |
| 012 |
10393246 |
KNUCKLE, STRG |
N1 |
2006-2010 |
01 |
| 012 |
10393247 |
KNUCKLE, STRG
| N1 |
2006-2010 |
01 |
|
| 013 |
15719028 |
БОЛТ, FRT WHL BRG (M14X1.5X70) (6.104)
| N1 |
2006-2009 |
06 |
|
| 014 |
|
СУППОРТ, ПЕРЕДНИЙ ТОРМОЗНОЙ (SEE GROUP 04.000 ТОРМОЗНОЙ СУППОРТ ПЕРЕДНИЙ FOR DETAILED ILLUSTRATED VIEW) |
|
2006-2010 |
|
| 015 |
15098000 |
БОЛТ, FRT BRK CLPR (M14 X 1.5 X 37.5) |
N1 |
2006-2010 |
04 |
| 016 |
15960191 |
БОЛТ, FRT WHL SPD SEN RET (PART OF 4, 7) (M6X1X12) |
N1 |
2006-2010 |
02 |
