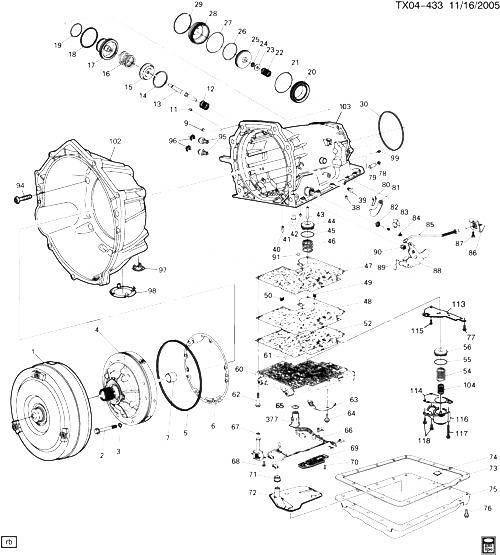

(TX04-433) - 2006-2010 N1 АВТОМАТИЧЕСКАЯ ТРАНСМИССИЯ, АКПП (M30) PART 2 (4L60-E) CASE RELATED PARTS/ЗАМОК ПАРКОВКИ HUMMER - H3 2008

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 17803851 CONVERTER, TORQ (REMAN) N1 (LH8, M30) 2008-2008 01
001 17804101 CONVERTER, TORQ (REMAN) N1 (LLR, M30) 2007-2010 01
002 24233361 БОЛТ, A/TRNS ГИДРОНАСОС (INCLS 3) (M8X1.25X60) (INCLS SEAL) (*KIT1) (ACDelco #24233361) N1 (M30) 2006-2010 07
003 24208664 SEAL, A/TRNS ГИДРОНАСОС BOLT (PART OF 2) (CONTAINS 10 SEALS) (ACDelco #24208664) N1 (M30) 2006-2010 01
004 PUMP, A/TRNS FLUID (SEE GROUP 04.000 МАСЛОНАСОС FOR DETAILED ILLUSTRATED VIEW) 2006-2010
005 24226315 SEAL, A/TRNS ГИДРОНАСОС (WEDGE TYPE SEAL ASM) (*KIT1) (ACDelco #24226315) N1 (M30) 2006-2010 01
006 12337931 GASKET, A/TRNS ГИДРОНАСОС (*KIT1) (ACDelco #12337931) N1 (M30) 2006-2010 01
007 24241233 BUSHING, PROP SHF FRT SLIP YOKE (PART OF TRANS CASE) (ACDelco #24241233) N1 (M30) 2008-2010 01
009 24202440 PIPE, A/TRNS VENT (*KIT8) (ACDelco #24202440) N1 (M30) 2006-2010 01
011 08628864 ORIFICE, FWD CLU FEED (6.4MM DIA) (NO DIMPLE) (*KIT8) (4.104) (ACDelco #8628864) N1 (M30) 2006-2010 01
012 08642273 SPRING, 2-4 BAND SERVO RTN (ORANGE) (ACDelco #8642273) N1 (M30) 2006-2010 01
013 08680499 PIN, 2-4 BAND SERVO PSTN (IDENTIFY BY 1 GROOVE IN TAPERED POINT) (4.228) (ACDelco #8680499) N1 (M30) 2006-2010 01
013 08680500 PIN, 2-4 BAND SERVO PSTN (IDENTIFY BY 2 GROOVES IN TAPERED POINT) (4.228) (ACDelco #8680500) N1 (M30) 2006-2009 01
013 08680501 PIN, 2-4 BAND SERVO PSTN (IDENTIFY BY NO GROOVES IN TAPERED POINT) (4.228) (ACDelco #8680501) N1 (M30) 2006-2009 01
014 08642105 RING, 2-4 BAND SERVO 2ND APPL PSTN RET (ACDelco #8642105) N1 (M30) 2006-2010 01
015 08642416 RETAINER, 2-4 BAND SERVO CUSH SPR (ACDelco #8642416) N1 (M30) 2006-2010 01
016 08642539 SPRING, 2-4 BAND SERVO PSTN CUSH (PINK) (ACDelco #8642539) N1 (M30) 2006-2010 01
017 08642613 PISTON KIT, 2-4 BAND SERVO 2ND APPLY (W/RINGS) (ACDelco #8642613) N1 (M30) 2006-2010 01
018 RING, LOW ; REV ACCUM PSTN OTR FLUID SEAL (*KIT1, KIT5, KIT6) 2006-2010
019 RING, LOW ; REV ACCUM PSTN INR FLUID SEAL (*KIT1, KIT5, KIT6) 2006-2010
020 08673041 HOUSING, 2-4 BAND SERVO 2ND APPL (.55) (ACDelco #8673041) N1 (M30) 2006-2010 01
021 08642112 SEAL, 2-4 BAND SERVO 2ND APPL PSTN HSG (O RING) (*KIT1) (ACDelco #8642112) N1 (M30) 2006-2010 01
022 24207758 SPRING, 2-4 BAND SERVO PSTN (ACDelco #24207758) N1 (M30) 2006-2010 01
023 08642107 WASHER, 2-4 BAND SERVO PIN (11.17 ID X 22.0 OD X 2.30 THK) (ACDelco #8642107) N1 (M30) 2006-2010 01
024 09415640 RETAINER, SNAP RING BOWED EXT.FITS SHFT 7/16 PL (OUTPUT SHF) (ACDelco #9415640) 2006-2010 01
025 08642478 PISTON, 2-4 BAND SERVO 4TH APPLY (W/RING) (ACDelco #8642478) N1 (M30) 2006-2010 01
026 08642480 RING, 2-4 BAND SERVO PSTN FLUID SEAL (*KIT1) (ACDelco #8642480) N1 (M30) 2006-2010 01
027 08647351 SEAL, 2-4 BAND SERVO CVR (O RING) (PART OF 28) (*KIT1) (ACDelco #8647351) N1 (M30) 2006-2010 01
028 08642979 COVER, 2-4 SERVO (W/SEAL) (INCLS 27) (INCLS RING) (4.241) (ACDelco #8642979) N1 (M30) 2006-2010 01
029 24232065 RING, 2-4 BAND SERVO CVR RET (ACDelco #24232065) N1 (M30) 2006-2010 01
030 24208660 SEAL, A/TRNS CASE EXTN (*KIT1) (ACDelco #24208660) N1 (M30) 2006-2010 01
038 08628864 ORIFICE, 3RD ACCUM BL (6.4MM DIA) (NO DIMPLE) (*KIT8) (4.104) (ACDelco #8628864) N1 (M30) 2006-2010 01
039 00444613 PLUG, HEX HD, 1/8-27 NPTF, STL (*KIT1) (ACDelco #444613) 2006-2010 01
040 08634400 VALVE, 3RD ACCUM BALL CHK (*KIT8) (ACDelco #8634400) N1 (M30) 2006-2010 01
041 08654581 PIN, 2-4 BAND ANC (ACDelco #8654581) N1 (M30) 2006-2010 01
042 08663890 VALVE, A/TRNS FLUID/PUMP CVR BALL CHK (DOUBLE ORIFICE) (W/BALL) (*KIT4, KIT8) (ACDelco #8663890) N1 (M30) 2006-2010 01
043 08628273 PIN, 3-4 ACCUM PSTN (4.226) (ACDelco #8628273) N1 (M30) 2006-2010 01
044 PISTON, 3-4 ACCUM (*KIT6) 2006-2010
045 24206509 RING, 3-4 ACCUM PSTN FLUID SEAL (*KIT1, KIT6) (ACDelco #24206509) N1 (M30) 2006-2010 01
046 08639074 SPRING, 3-4 ACCUM PSTN (BLUE) (*KIT4) (ACDelco #8639074) N1 (M30) 2006-2010 01
047 GASKET, C/VLV BODY (*KIT1, KIT4) 2006-2010
048 24241784 PLATE, C/VLV BODY SPCR (W/GSKT) (INCLS 49, 50) (ACDelco #24241784) N1 (LLR, M30) 2008-2008 01
048 24241785 PLATE, C/VLV BODY SPCR (W/GSKT) (INCLS 49, 50) (ACDelco #24241785) N1 (LH8, M30) 2008-2008 01
049 FILTER, SHFT SOL VLV FLUID (PART OF 48) 2008-2010
050 FILTER, PRESS CONT SOL VLV FLUID (PART OF 48) 2008-2010
052 GASKET, C/VLV BODY SPCR PLT (PLATE TO VALVE BDY) (*KIT1, KIT4) 2006-2010
054 24219942 SPRING, 1-2 ACCUM PSTN OTR (GREEN) (*KIT7) (ACDelco #24219942) N1 (M30) 2006-2010 01
055 24206509 RING, 1-2 ACCUM PSTN FLUID SEAL (*KIT1, KIT6, KIT7) (ACDelco #24206509) N1 (M30) 2006-2010 01
056 PISTON, 1-2 ACCUM (*KIT6, KIT7) 2006-2010
060 24224998 VALVE, CONT (W/BODY ; VLV) (ACDelco #24224998) N1 (LLR, M30) 2008-2008 01
060 24237218 VALVE, CONT (W/BODY ; VLV) (ACDelco #24237218) N1 (LH8, M30) 2008-2008 01
061 00104918 BALL, 1/4 DIA, CHROME STL (ACDelco #104918) 2006-2010 01
062 08680741 БОЛТ, VLV BODY (M6X1X54.4) (ACDelco #8680741) N1 (M30) 2006-2010 03
063 08642247 DETENT, MAN SHFT (INCLS PIN) (ACDelco #8642247) N1 (M30) 2006-2008 01
064 11508687 БОЛТ, HEX, M8X1.25X20, 16.88THD, 10.9, PZOR (DTNT SPR TO VB) (ACDelco #11508687) 2006-2010 01
065 SEAL, WRG HARN PASS-THRU CONN O-RING (PART OF 66) 2006-2010
066 24234121 HARNESS, A/TRNS WRG (INCLS 65, 67) (USED W/INPUT SPEED SENSOR APPLICATIONS) (TCC VLV SOL INCL) N153 (06) (LH8, LLR, M30) 2008-2008 01
066 24234121 HARNESS, A/TRNS WRG (INCLS 65, 67) (USED W/INPUT SPEED SENSOR APPLICATIONS) (TCC VLV SOL INCL) (2.480) N153 (06) (LH8, LLR, M30) 2008-2008 01
067 10471813 SEAL, TCC SOL VLV (O RING) (PART OF 66) (SMALL DIA) (OTR) (ACDelco #10471813) N1 (M30) 2006-2010 01
068 11503870 БОЛТ, HEX M6X1X35 10.9 PC (TCC SOLVLV) (ACDelco #11503870) 2006-2010 02
069 24219581 SWITCH, A/TRNS FLUID PRESS MAN VLV POSN (INCLS TRANS FLUID TEMP (TFT) SENSOR) (ACDelco #24219581) N153 (06) 2006-2008 01
070 08680764 БОЛТ, A/TRNS FLUID PRESS MAN VLV POSN SW (M6X1X17.7) (ACDelco #8680764) N153 (06) 2006-2008 02
071 08685775 SEAL, A/TRNS FLUID FLTR (*KIT3) N1 (M30) 2006-2010 01
072 FILTER, A/TRNS FLUID (*KIT3) 2006-2010
073 08654799 GASKET, A/TRNS FLUID PAN (*KIT3) (ACDelco #8654799) N1 (M30) 2006-2010 01
074 29535617 MAGNET, A/TRNS FLUID PAN (PART OF 75) (4.105) (ACDelco #29535617) N1 (M30) 2006-2010 01
075 24240206 PAN, A/TRNS FLUID (INCLS 74) (ACDelco #24240206) N1 (M30) 2006-2010 01
076 24231519 БОЛТ, A/TRNS FLUID PAN (ACDelco #24231519) N1 (M30) 2006-2010 16
077 08680764 БОЛТ, FLUID PASG CVR (SPACER SUPPORT PLATE) (M6X1X17.7) (4.265) (ACDelco #8680764) N1 (M30) 2006-2010 03
078 PLUG, PARK PAWL SHF HOLE (PART OF 79) 2008-2010
079 08669911 PAWL KIT, PARK (INCLS 78, 81) (INST SHT, PAWL, PLUG ; SHF) (ACDelco #8669911) N1 (M30) 2006-2010 01
080 08642193 SPRING, PARK PAWL (ACDelco #8642193) N1 (M30) 2006-2010 01
081 PAWL, PARK (PART OF 79) 2006-2010
082 08657163 SEAL, MAN SHFT SHF (PART OF 84) (*KIT1, KIT8) (ACDelco #8657163) N1 (M30) 2006-2010 01
083 08642246 RETAINER, MAN SHFT SHF (ACDelco #8642246) N1 (M30) 2006-2008 01
084 24235194 SHAFT KIT, MAN SHFT (INCLS 82) (128.2MM) (LONG) (INCLS SEAL) (ACDelco #24235194) N1 (M30) 2006-2008 01
085 24227480 ACTUATOR, PARK PAWL (INCLS ACTUATOR, ROD ; SPRINGS) (ACDelco #24227480) N1 (M30) 2006-2008 01
086 08667574 BRACKET, PARK PAWL ACTR (ACDelco #8667574) N1 (M30) 2006-2010 01
087 11508687 БОЛТ, HEX, M8X1.25X20, 16.88THD, 10.9, PZOR (PARK LOCK BRACKET TO CASE) (ACDelco #11508687) 2006-2010 02
088 24222404 LEVER, MAN SHFT DTNT (ACDelco #24222404) N1 (M30) 2006-2008 01
089 08680731 LINK, MAN VLV (*KIT1) (ACDelco #8680731) N1 (M30) 2006-2010 01
090 10255857 ГАЙКА, HFH, 10X1.5, 6H THD, 9.8THK, 21.3 O.D., 10, PZOR (MAN SHFT DTNT LVR) (8.917) 2006-2010 01
091 00104918 BALL, 1/4 DIA, CHROME STL (NO. 10 CHECK BALL) (ACDelco #104918) 2006-2010 AR
094 24233360 БОЛТ, T/CV HSG (M10X1.5X45) (TORX) (ACDelco #24233360) N1 (M30) 2006-2009 08
095 24233366 FITTING, TRANS FLUID CLR PIPE (INCLS 96) (INCLS O-RING) (1/4-18 NPS THD) (QUICK CONN, NON BALL CK INCLS RETAINER, TRANS END) (STL BODY) (*KIT8) (ACDelco #24233366) N1 (M30) 2008-2008 02
095 24236579 FITTING, TRANS FLUID CLR PIPE (INCLS 96) (9/16-18 UNF-2A) (QUICK CONNECT) (ALUM BODY) (*KIT8) N1 (M30) 2008-2008 02
096 24205103 RETAINER, TRANS FLUID CLR PIPE FTG (PART OF 95) (EXPANDING SPRING WIRE) (*KIT8) (ACDelco #24205103) N1 (M30) 2008-2010 01
097 24205899 PLUG, T/CV HSG ACC HOLE (28MM W/3 TANGS) (SMALL CVR) (ACDelco #24205899) N1 (M30) 2006-2009 01
098 24205900 COVER, T/CV HSG ACC HOLE (62MM W/3 TANGS) (LARGE CVR) (ACDelco #24205900) N1 (M30) 2006-2010 01
099 08663707 ORIFICE, LUB FLUID (4.3MM DIA) (*KIT8) (ACDelco #8663707) N1 (M30) 2006-2010 01
102 24220854 HOUSING, T/CV (ACDelco #24220854) N1 (LLR, M30) 2008-2010 01
102 24236707 HOUSING, T/CV (ACDelco #24236707) N1 (LH8, M30) 2008-2009 01
103 CASE, A/TRNS (*KIT8) 2006-2010
104 24220145 SPRING, 1-2 ACCUM PSTN INR (LIGHT GREEN) (*KIT7) (ACDelco #24220145) N1 (M30) 2006-2010 01
113 24206338 COVER, FWD CLU ACCUM (W/SLOTS) (ACDelco #24206338) N1 (M30) 2006-2010 01
114 24211603 GASKET, 1-2 ACCUM CVR (ACDelco #24211603) N1 (M30) 2006-2010 01
115 11561724 SCREW, PAN W/NYLON WA, M6X1X19.45, 14 THD, 12 OD, 10.9, GMW4205, M-PT (FLUID PASG CVR) 2006-2010 01
116 24214039 COVER, 1-2 ACCUM (ACDelco #24214039) N1 (M30) 2006-2010 01
117 11506078 БОЛТ, HFH M6X1X65 9.8 PL (VLV BODY COVER) 2006-2010 01
118 24213775 БОЛТ, 1-2 ACCUM CVR N1 (M30) 2006-2009 02
377 24230632 VALVE, PRESS CONT SOL (ACDelco #24230632) N1 (M30) 2006-2010 01
K01 24236378 GASKET KIT, A/TRNS SERV (INCLS 2, 5, 6, 18, 19, 21, 26, 27, 30, 39, 45, 47, 52, 55, 82, 89) (W/PISTONS) (*1) (ACDelco #24236378) N1 (M30) 2007-2010 01
K03 24225323 FILTER KIT, A/TRNS FLUID (INCLS 71-73) (ACDelco #24225323) N1 (LLR) 2006-2010 01
K04 24221350 GASKET KIT, C/VLV BODY SPCR PLT (INCLS 42, 46, 47, 52) (ACDelco #24221350) N1 2006-2010 01
K05 24232073 RING KIT, 2-4 BAND SERVO 2ND APPL PSTN FLUID SEAL (INCLS 18, 19) (ACDelco #24232073) N1 (M30) 2006-2010 01
K06 24221919 PISTON KIT, 1-2 ; 3-4 ACCUM (INCLS 18, 19, 44, 45, 55, 56) (INCLS 1-2 ; 3-4 ACCUM PSTN ; SEAL ASM) (ACDelco #24221919) N1 (M30) 2006-2010 01
K07 24214038 ACCUMULATOR, 1-2 (INCLS 54-56, 104) (ACDelco #24214038) N1 (LLR, M30) 2008-2009 01
K07 24237217 ACCUMULATOR, 1-2 (INCLS 54-56, 104) (ACDelco #24237217) N1 (LH8, M30) 2008-2009 01
K08 24247300 CASE KIT, A/TRNS (INCLS 9, 11, 38, 40, 42, 82, 95, 96, 99, 103) (ACDelco #24247300) N1 (M30) 2006-2010 01
