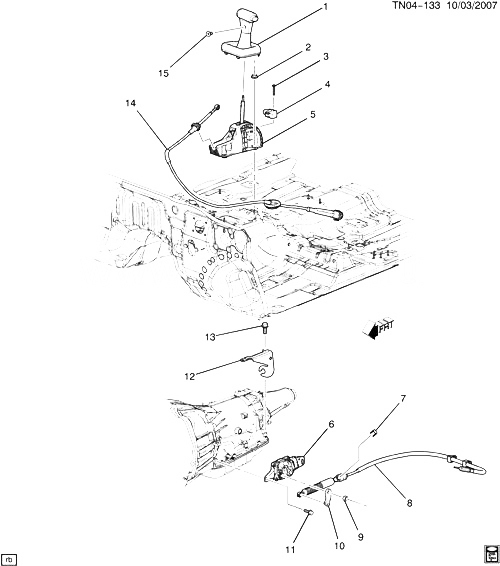

(TN04-133) - 2008 N1 УПРАВЛЕНИЕ ПЕРЕКЛЮЧЕНИЕМ MOUNTING/АВТОМАТИЧЕСКАЯ ТРАНСМИССИЯ, АКПП (LH8,M30) HUMMER - H3 2008

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15818699 HANDLE, A/TRNS CONT LVR (INCLS 15) N1 (M30) (EXC RHD) 2008-2008 01
001 25808539 HANDLE, A/TRNS CONT LVR (INCLS 15) N1 (M30, RHD) (EXPORT) 2008-2008 01
002 11609411 ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (A/TRNS RANGE SEL LVR CBL BRKT) 2008-2008 04
003 БОЛТ, A/TRNS SHFT LK CONT SOL (PART OF 5) 2008-2008
004 88967140 SOLENOID, A/TRNS SHFT LK CONT (PART OF 5) N1 (M30) 2008-2008 01
005 15823064 CONTROL, A/TRNS (INCLS 3, 4) N1 (M30) (EXC RHD) 2008-2008 01
005 15823064 CONTROL, A/TRNS (INCLS 3, 4) (4.004) N1 (M30) (EXC RHD) 2008-2008 01
005 25808540 CONTROL, A/TRNS (INCLS 3, 4) N1 (M30, RHD) (EXPORT) 2008-2008 01
005 25808540 CONTROL, A/TRNS (INCLS 3, 4) (4.004) N1 (M30, RHD) (EXPORT) 2008-2008 01
006 24221125 SWITCH, PARK/NEU POSN ; B/U LP (12-PIN CONN) (4.054) (ACDelco #D2257C) N1 (M30) 2008-2008 01
006 24221125 SWITCH, PARK/NEU POSN ; B/U LP (12-PIN CONN) (ACDelco #D2257C) N1 (M30) 2008-2008 01
007 15116345 RETAINER, A/TRNS RANGE SEL LVR CBL N1 (LH8, M30) 2008-2008 01
008 25850217 CABLE, A/TRNS RANGE SEL LVR (AT TRNS) (LOWER CABLE) (WHEN REPL MUST REPL UPPER CABLE) N153 (06) (LH8) 2008-2008 01
009 11514603 ГАЙКА, M10X1.5 15MM SOCKET (A/TRNS RANGE SEL LVR EQLZR LVR) 2008-2008 01
010 15251895 LEVER, A/TRNS RANGE SEL LVR EQLZR N1 (LH8, M30) 2008-2008 01
011 11509640 БОЛТ, HEX W/CON WA, M8X1.25X16, 9.8, PZOR, 17.0-OD, W/DOG PT, TT WASH (PARK/NEU POSN ; B/U LP SW) 2008-2008 02
012 15914241 BRACKET, A/TRNS RANGE SEL LVR CBL N1 (LH8) 2008-2008 01
013 11519505 BOLT-HEX HD W/CON WA, M8X1.25X22, 18.74 THD, 17OD, 8.8, GMW3359, HDR PT. (A/TRNS RANGE SEL LVR CBL BRKT) 2008-2008 03
014 15854668 CABLE, A/TRNS RANGE SEL LVR (UPPER CABLE) (ACDelco #15854668) N1 (LH8) 2008-2008 01
015 11589266 БОЛТ, A/TRNS CONT LVR KNOB (PART OF 1) N1 (M30) 2008-2008 01
