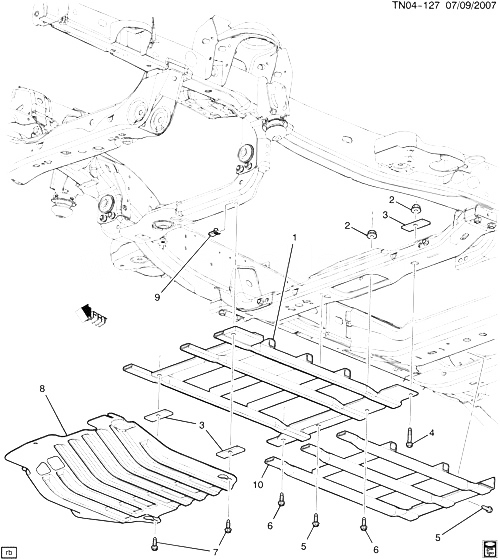

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
|
SHIELD, TRANS U/B (*KIT1) |
|
2007-2010 |
|
| 002 |
|
NUT, U/B SHIELD (*KIT1, KIT2) |
|
2007-2010 |
|
| 003 |
|
SPACER, U/B SHIELD (*KIT1, KIT2) |
|
2007-2010 |
|
| 004 |
|
БОЛТ, U/B SHIELD (*KIT1, KIT2) |
|
2007-2010 |
|
| 005 |
11570082 |
БОЛТ, HFH, M8X1.25X22, 19 THD, 18 OD, 10.9, GMW3359 (TRFER CASE SHLD) (ACDelco #11570082)
|
2007-2010 |
03 |
|
| 006 |
11570082 |
БОЛТ, HFH, M8X1.25X22, 19 THD, 18 OD, 10.9, GMW3359 (OIL PAN SHLD) (ACDelco #11570082)
|
2007-2010 |
02 |
|
| 007 |
|
БОЛТ, U/B SHIELD (*KIT1, KIT2) |
|
2007-2010 |
|
| 008 |
25801671 |
PLATE, OIL PAN SKID (WILL INCLUDE VENT HOLES) (SEE GROUP 01.000 ПАНЕЛЬ-МАСЛЯНЫЙ ПОДДОН FOR DETAILED ILLUSTRATED VIEW) |
N1 |
2007-2010 |
01 |
| 009 |
11561740 |
NUT, U-SHAPED, M8X1.25, 14.2 WIDE, 38.5 OVERALL LENGTH, 28 C-C, SAE 1050 STL, GM7111M (FRM BR) |
|
2007-2010 |
02 |
| 010 |
|
SHIELD, TRFER CASE U/B (*KIT1) |
|
2007-2010 |
|
| K01 |
12498474 |
GUARD, CTLTC CONV (INCLS 1-4, 7, 10) (INSTALL .70) (16.9KGS) (STEEL) (INCLS TRANS U/B, TRANS CASE U/B ; ATTACHMENT PKG) (16.545) |
N1 (VFX) |
2007-2009 |
01 |
| K01 |
12498474 |
GUARD, CTLTC CONV (INCLS 1-4, 7, 10) (INSTALL .70) (16.9KGS) (STEEL) (INCLS TRANS U/B, TRANS CASE U/B ; ATTACHMENT PKG) (16.545) |
N1 (VFX, YP8) |
2007-2009 |
01 |
| K02 |
88967831 |
ATTACHMENT KIT, TRANS ; TRFER CASE U/B SHLD (INCLS 2-4, 7) (16.545) (SERV CMP OF 12498474) |
N1 (06) |
2007-2010 |
01 |
