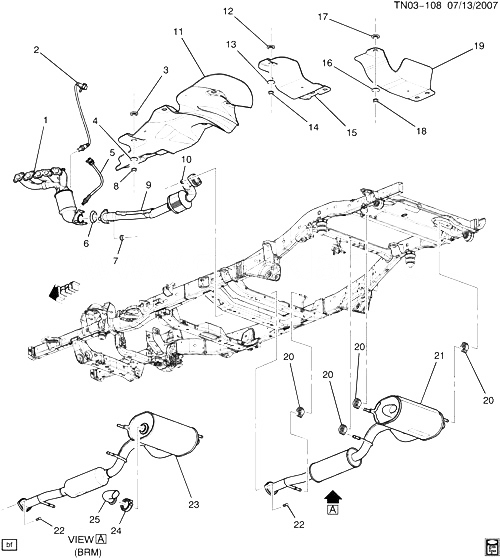

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
12607895 |
MANIFOLD, EXH (W/3WAY CTLTC CONV) (INCLS CONVERTER, PIPE, FLANGE, PLUG, STUDS) (SEE GROUP 00.000 ДВИГАТЕЛЬ В СБОРЕ-3.5L L5 PART 5 MANIFOLDS ; RELATED PARTS FOR DETAILED ILLUSTRATED VIEW)
| N1 (LLR) |
2008-2008 |
01 |
|
| 002 |
12592592 |
ДАТЧИК, HTD OXY (POSN 1) (IN EXH MANIFOLD/CROSSOVER) (ACDelco #213-3207)
| N1 (LLR, LLV) |
2008-2009 |
01 |
|
| 003 |
|
INSULATOR, EXH MUFF H/SHLD (PART OF 11) |
|
2008-2008 |
|
| 004 |
|
INSULATOR, EXH MUFF H/SHLD (PART OF 11) |
|
2008-2008 |
|
| 005 |
12604575 |
ДАТЧИК, HTD OXY (POSN 2) (PRE CONVERTER) (ACDelco #213-3908)
| N1 (LLR) |
2008-2009 |
01 |
|
| 006 |
15105884 |
SEAL, EXH MANIF PIPE |
N1 (06) (LLR, LLV, JJA) |
2008-2008 |
01 |
| 007 |
15709703 |
ГАЙКА, HEX 10X1.5THD, 21.8 OD SS (EXH MANIF PIPE)
|
2008-2010 |
03 |
|
| 008 |
11588331 |
ГАЙКА, HEX HD W/CON WA, M6X1, 5.7THK, 25 O.D., 9, GM6138M (CTLTC CONV H/SHLD) |
|
2008-2010 |
05 |
| 009 |
20786842 |
CONVERTER, 3WAY CTLTC (W/EXH MANIF PIPE) (3.685)
| N1 (LLR, LLV, JJA) |
2008-2008 |
01 |
|
| 009 |
20786842 |
CONVERTER, 3WAY CTLTC (W/EXH MANIF PIPE)
| N1 (LLR, LLV, JJA) |
2008-2008 |
01 |
|
| 010 |
15709703 |
ГАЙКА, HEX 10X1.5THD, 21.8 OD SS (EXH MUFF)
|
2008-2010 |
02 |
|
| 011 |
25792158 |
SHIELD, CTLTC CONV HT (INCLS 3, 4) |
N1 (06) |
2008-2008 |
01 |
| 012 |
|
INSULATOR, EXH MUFF H/SHLD (PART OF 15) |
|
2008-2008 |
|
| 013 |
|
INSULATOR, EXH MUFF H/SHLD (PART OF 15) |
|
2008-2008 |
|
| 014 |
11588331 |
ГАЙКА, HEX HD W/CON WA, M6X1, 5.7THK, 25 O.D., 9, GM6138M (EXH PIPE CTR H/SHLD) |
|
2008-2010 |
03 |
| 015 |
25793426 |
SHIELD, EXH INTER HT (AT PUBX PLTF) (INCLS 12, 13) |
N1 |
2008-2008 |
01 |
| 016 |
|
INSULATOR, EXH MUFF H/SHLD (PART OF 19) |
|
2008-2008 |
|
| 017 |
|
INSULATOR, EXH MUFF H/SHLD (PART OF 19) |
|
2008-2008 |
|
| 018 |
11588331 |
ГАЙКА, HEX HD W/CON WA, M6X1, 5.7THK, 25 O.D., 9, GM6138M (EXH H/SHLD) |
|
2008-2010 |
06 |
| 019 |
25926738 |
SHIELD, EXH HT (AT R/FLR PNL) (INCLS 16, 17) |
N1 |
2008-2008 |
01 |
| 020 |
15120136 |
INSULATOR, EXH PIPE HNGR |
N153 |
2008-2010 |
AR |
| 021 |
25791351 |
MUFFLER, EXH (W/RESO, EXH ; TAIL PIPE) (INCLS 22) (NON-GLOBAL RELEASE) |
N1 (LLR) (EXC EQ9) |
2008-2010 |
01 |
| 021 |
25791351 |
MUFFLER, EXH (W/RESO, EXH ; TAIL PIPE) (INCLS 22) (NON-GLOBAL RELEASE) (3.701) |
N1 (LLR) (EXC EQ9) |
2008-2010 |
01 |
| 021 |
25791351 |
MUFFLER, EXH (W/RESO, EXH ; TAIL PIPE) (INCLS 22) (NON-GLOBAL RELEASE) (3.701) |
N1 (LLR) (EXC EQ9) |
2008-2010 |
01 |
| 021 |
25854786 |
MUFFLER, EXH (W/RESO, EXH ; TAIL PIPE) (INCLS 22) (GLOBAL RELEASE W/SWIVEL TAIL PIPE) |
N153 (06) (LLR, EQ9) |
2008-2010 |
01 |
| 021 |
25854786 |
MUFFLER, EXH (W/RESO, EXH ; TAIL PIPE) (INCLS 22) (GLOBAL RELEASE W/SWIVEL TAIL PIPE) (3.701) |
N153 (06) (LLR, EQ9) |
2008-2010 |
01 |
| 021 |
25854786 |
MUFFLER, EXH (W/RESO, EXH ; TAIL PIPE) (INCLS 22) (GLOBAL RELEASE W/SWIVEL TAIL PIPE) (3.701) |
N153 (06) (LLR, EQ9) |
2008-2010 |
01 |
| 022 |
15028620 |
STUD, EXH PIPE (PART OF 21, 23) (M10X1.5X30MM) (BUTTON HEAD)
| N153 |
2008-2010 |
02 |
|
| 023 |
25791351 |
MUFFLER, EXH (W/RESO, EXH ; TAIL PIPE) (INCLS 22, 24, 25) (NON-GLOBAL RELEASE) |
N1 (LLR) (EXC EQ9) |
2008-2010 |
01 |
| 023 |
25791351 |
MUFFLER, EXH (W/RESO, EXH ; TAIL PIPE) (INCLS 22, 24, 25) (NON-GLOBAL RELEASE) (3.701) |
N1 (LLR) (EXC EQ9) |
2008-2010 |
01 |
| 023 |
25791351 |
MUFFLER, EXH (W/RESO, EXH ; TAIL PIPE) (INCLS 22, 24, 25) (NON-GLOBAL RELEASE) (3.701) |
N1 (LLR) (EXC EQ9) |
2008-2010 |
01 |
| 023 |
25854786 |
MUFFLER, EXH (W/RESO, EXH ; TAIL PIPE) (INCLS 22, 24, 25) (GLOBAL RELEASE W/SWIVEL TAIL PIPE) |
N153 (06) (LLR, BRM) (EXPORT) |
2008-2008 |
01 |
| 023 |
25854786 |
MUFFLER, EXH (W/RESO, EXH ; TAIL PIPE) (INCLS 22, 24, 25) (GLOBAL RELEASE W/SWIVEL TAIL PIPE) |
N153 (06) (LLR, EQ9) |
2008-2010 |
01 |
| 023 |
25854786 |
MUFFLER, EXH (W/RESO, EXH ; TAIL PIPE) (INCLS 22, 24, 25) (GLOBAL RELEASE W/SWIVEL TAIL PIPE) (3.701) |
N153 (06) (LLR, BRM) (EXPORT) |
2008-2008 |
01 |
| 023 |
25854786 |
MUFFLER, EXH (W/RESO, EXH ; TAIL PIPE) (INCLS 22, 24, 25) (GLOBAL RELEASE W/SWIVEL TAIL PIPE) (3.701) |
N153 (06) (LLR, EQ9) |
2008-2010 |
01 |
| 023 |
25854786 |
MUFFLER, EXH (W/RESO, EXH ; TAIL PIPE) (INCLS 22, 24, 25) (GLOBAL RELEASE W/SWIVEL TAIL PIPE) (3.701) |
N153 (06) (LLR, BRM) (EXPORT) |
2008-2008 |
01 |
| 023 |
25854786 |
MUFFLER, EXH (W/RESO, EXH ; TAIL PIPE) (INCLS 22, 24, 25) (GLOBAL RELEASE W/SWIVEL TAIL PIPE) (3.701) |
N153 (06) (LLR, EQ9) |
2008-2010 |
01 |
| 024 |
15897598 |
CLAMP, EXH MUFF EXTN (PART OF 23) |
N1 (LH8, LLR, EQ9) |
2008-2009 |
01 |
| 025 |
15815977 |
PIPE, EXH TAIL (PART OF 23) |
N153 (06) (LLR, EQ9) |
2008-2010 |
01 |
