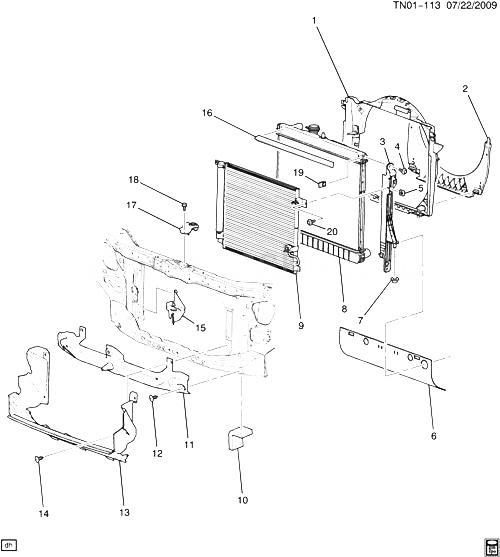

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25862433 |
SHROUD, ENG COOL FAN UPR |
N1 (LH8, M30) |
2008-2009 |
01 |
| 002 |
25862431 |
SHROUD, ENG COOL FAN LWR |
N1 (LH8, M30) |
2008-2009 |
01 |
| 003 |
10399670 |
BRACKET, RAD SI MTG |
N1 (M30) |
2008-2010 |
01 |
| 003 |
10399671 |
BRACKET, RAD SI MTG |
N1 (M30) |
2008-2010 |
01 |
| 004 |
11561361 |
БОЛТ, RAD |
N1 (MA5, M30) |
2008-2010 |
02 |
| 005 |
11561363 |
NUT, RAD |
N1 |
2008-2010 |
02 |
| 006 |
15948095 |
SEAL, RAD LWR (ACDelco #15948095)
| N1 (MA5, M30) |
2008-2010 |
01 |
|
| 007 |
10399672 |
MOUNT, RAD LWR |
N1 |
2008-2010 |
02 |
| 008 |
19153663 |
РАДИАТОР, (ACDelco #19153663) |
N1 (M30) |
2008-2010 |
01 |
| 009 |
25844415 |
CONDENSER, A/C (SEE GROUP 09.000 СИСТЕМА ОХЛАЖДЕНИЕ КОНДИЦИОНЕРА FOR DETAILED ILLUSTRATED VIEW) (ACDelco #25844415)
| N1 (LH8, M30) |
2008-2009 |
01 |
|
| 010 |
25852294 |
SEAL, RAD AIR SI LWR |
N1 |
2008-2010 |
02 |
| 011 |
25845983 |
BAFFLE, RAD AIR LWR (INCLS 12) |
N1 (LH8) |
2008-2009 |
01 |
| 012 |
10121502 |
RETAINER, FITS .250 HOLE, 1.01LG.700-OD NYLON BLACK (PART OF 11)
|
2008-2010 |
02 |
|
| 013 |
25791893 |
BAFFLE, RAD AIR (INCLS 14) |
N1 (LH8) (EXC RHD) |
2008-2009 |
01 |
| 013 |
25805684 |
BAFFLE, RAD AIR (INCLS 14) |
N1 (RHD) (EXPORT) |
2008-2008 |
01 |
| 014 |
10121502 |
RETAINER, FITS .250 HOLE, 1.01LG.700-OD NYLON BLACK (PART OF 13)
|
2008-2010 |
07 |
|
| 015 |
97247212 |
BRACKET, RAD LWR MTG PNL
| N1 |
2008-2010 |
01 |
|
| 015 |
97247213 |
BRACKET, RAD LWR MTG PNL
| N1 |
2008-2010 |
01 |
|
| 016 |
15806298 |
SEAL, RAD UPR |
N1 |
2008-2010 |
01 |
| 017 |
97246409 |
BRACKET, RAD UPR |
N1 (06) |
2008-2008 |
01 |
| 018 |
11515755 |
БОЛТ, HEX, M8X1.25X16, 15 THD, 18 O.D., 10.9, 7114M (RAD UPR MT BRKT) (T/W 12345493 REPLCS 25534835)
|
2008-2010 |
02 |
|
| 019 |
11561362 |
NUT, RAD LIFT BRKT |
N1 |
2008-2010 |
02 |
| 020 |
11569695 |
BOLT-HEX W/FL WA, M6X1X20, 11 THD, 17 OD, 9.8, GMW3359-BLACK W/ADH 6175M (RAD SI MT BRKT) |
|
2008-2010 |
02 |
