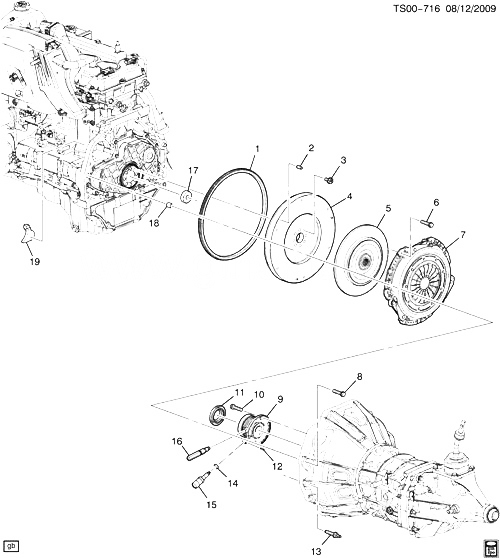

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
|
GEAR, STRTR DRVN RING (PART OF 4) |
|
2008-2010 |
|
| 002 |
11503504 |
PIN, M6X16, STL, PLAIN (PART OF 4) |
|
2006-2010 |
03 |
| 003 |
12568932 |
БОЛТ, FLYWHL (M10X1.0X23.7 MATL:STEEL (SAE 4037)) |
N1 (LLR, MA5, JJA) |
2007-2010 |
08 |
| 004 |
19177876 |
FLYWHEEL, ENG (INCLS 1-2) (BOLTS NOT INCLUDED) |
N1 (LLR, MA5) |
2007-2010 |
01 |
| 005 |
24230637 |
PLATE, CLU DRVN (PART OF 7) |
N1 (LLR, MA5) |
2007-2010 |
01 |
| 006 |
11518102 |
БОЛТ, HEX W/SLOTTED HD, M8X1.25X15.15, 10.15 THD, 10.9, 4435M, MACH, HDR-PT (CLU PRESS PLT) (0.862) |
|
2006-2010 |
06 |
| 007 |
24230633 |
PLATE, CLU PRESS ; DRVN (W/CVR) (INCLS 5)
| N1 (LLR, MA5) |
2007-2010 |
01 |
|
| 008 |
11519894 |
BOLT-HEX W/CON WA, M10X1.5X55, 42.3 THD, 20 OD, 10.9, 7114M, MACH, MAT-PT (TRANS) |
|
2006-2010 |
09 |
| 009 |
24249144 |
CYLINDER, CLU ACTR (INCLS 11, 12, 14-18)
| N1 (LLR, MA5) |
2007-2009 |
01 |
|
| 010 |
11517517 |
БОЛТ, HFH, M6X1X16, 13.5 THD, 14.2 OD, 9.8, SN-ZN, MACH, HDR-PT (CLU ACTR CYL) |
|
2006-2010 |
02 |
| 011 |
89060001 |
BEARING KIT, CLU REL (PART OF 9) (W/CARR) (ACDelco #CT1101)
| N1 (MA5) |
2007-2010 |
01 |
|
| 012 |
12386924 |
PIN, CLU ACTR CYL (PART OF 9) |
N1 (LLR, MA5) |
2007-2009 |
01 |
| 013 |
24221931 |
STUD, TRANS (M10X1.5X50, M8X1.25X20, 20 OD) |
N1 |
2006-2010 |
02 |
| 014 |
12549117 |
SEAL, CLU ACTR CYL (O RING) (PART OF 9) |
N1 (LLR, MA5) |
2007-2009 |
01 |
| 015 |
|
COUPLING, CLU REL BRG LUB HOSE LUB FTG (PART OF 9) |
|
2008-2010 |
|
| 016 |
|
VALVE, CLU ACTR CYL BL (PART OF 9) |
|
2008-2010 |
|
| 017 |
|
FITTING, CLU ACTR CYL PIPE (PART OF 9) |
|
2008-2010 |
|
| 018 |
12549117 |
SEAL, CLU ACTR CYL (O RING) (PART OF 9) |
N1 (LLR, MA5) |
2007-2009 |
01 |
| 019 |
12557583 |
BEARING, CLU PILOT (22.7MM ID, 43.3MM OD, 13 THK) (ACDelco #CT1082) |
N1 (LLR, MA5) |
2007-2010 |
01 |
| 020 |
12569598 |
PIN, TRANS LOC |
N1 (LLR) |
2007-2010 |
02 |
| 021 |
12571613 |
PLUG, FLYWHL HSG |
N1 |
2006-2009 |
01 |
