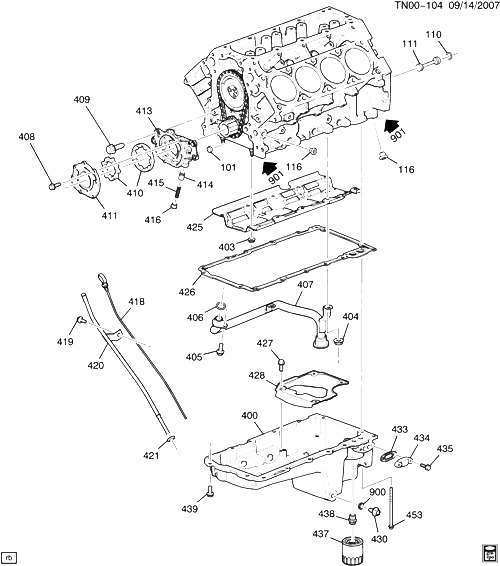

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 101 |
09427693 |
PLUG, CUP 5/8, CORROSION RESISTANT STL (ENG BLK OIL GAL) (1.531) |
|
2008-2010 |
01 |
| 110 |
|
SEAL, ENG BLK OIL GAL PLUG (O RING) (PART OF 111) |
|
2008-2009 |
|
| 111 |
12573460 |
PLUG, ENG BLK OIL GAL (INCLS 110) (15.68MM DIA) (INCLS O-RING SEAL (N.S.S.) |
N1 (LH8) |
2008-2009 |
01 |
| 116 |
11588949 |
PLUG, M16X1.5X14, 24 OD, SAE 1010 STL, GMW3044, W/ AL WASHER (ENG BLK OIL GAL)
|
2008-2010 |
02 |
|
| 400 |
12614821 |
PAN, OIL (INCLS BAFFLE, LABEL, FITTING, GASKET, BOLTS, VALVE, RIVET, PLUG) (INCLS 426-428, 430, 433-435, 438, 439, 453, 900) |
N1 (LH8) |
2008-2009 |
01 |
| 403 |
11515742 |
NUT, PREVAILING TORQUE TENSION FLG HD (M8X1.25X17.4 OD (CR/SHF OIL DFL) |
|
2008-2010 |
08 |
| 404 |
11515742 |
NUT, PREVAILING TORQUE TENSION FLG HD (M8X1.25X17.4 OD (O/PMP SUC PIPE) |
|
2008-2010 |
02 |
| 405 |
11516521 |
БОЛТ, HFH M6X1X20, 9.8, 7114M, DOG PT, 14.2 OD (O/PMP SUC PIPE) |
|
2008-2010 |
01 |
| 406 |
12584922 |
SEAL, O/PMP SUC PIPE (O RING) (PART OF 407) (20.69MM I.D., 4.20MM THICKNESS) (TEFLON COATED) (1.724)
| N1 (LH8) |
2008-2009 |
01 |
|
| 407 |
12608593 |
SCREEN, O/PMP (W/SUC PIPE) (INCLS 406) |
N1 (LH8, M30, JJA) |
2008-2009 |
01 |
| 408 |
11519133 |
БОЛТ, SELF TAP, M6X1X20, 13.2 O.D. (PART OF 413) |
|
2008-2010 |
07 |
| 409 |
11515758 |
БОЛТ, HFH, M8X1.25X30, 28THD, 18 O.D., MACH PT, 10.9, 7114M (O/PMP)
|
2008-2010 |
04 |
|
| 410 |
|
GEAR SET, O/PMP (PART OF 413) |
|
2008-2009 |
|
| 411 |
|
COVER, O/PMP (PART OF 413) |
|
2008-2009 |
|
| 413 |
12586665 |
PUMP, OIL (INCLS 408, 410, 411, 414-416)
| N1 (LH8) |
2008-2009 |
01 |
|
| 414 |
|
VALVE, OIL PRESS RLF (PART OF 413) |
|
2008-2009 |
|
| 415 |
|
SPRING, OIL PRESS RLF VLV (PART OF 413) |
|
2008-2009 |
|
| 416 |
|
PLUG, OIL PRESS RLF VLV BORE (PART OF 413) |
|
2008-2009 |
|
| 418 |
12603506 |
INDICATOR, OIL LVL |
N1 (LH8, M30, JJA) |
2008-2009 |
01 |
| 419 |
11588736 |
БОЛТ, HFH, M10X1.5X20, 10 THD, 22.3 O.D., 10.9, GMW3359 (OIL LVL IND TUBE) |
|
2008-2010 |
01 |
| 420 |
12584738 |
TUBE, OIL LVL IND (INCLS SEAL) (INCLS 421) |
N1 (LH8) |
2008-2009 |
01 |
| 420 |
12609269 |
TUBE, OIL LVL IND (INCLS 421)
| N1 (LH8) |
2008-2008 |
01 |
|
| 421 |
|
SEAL, OIL LVL IND TUBE (O RING) (PART OF 420) |
|
2008-2010 |
|
| 421 |
24504091 |
SEAL, OIL LVL IND TUBE (O RING) (PART OF 420) (BLACK) (6.07MM ID, 1.78MM DIA) |
N1 (LH8) |
2008-2009 |
01 |
| 425 |
12611129 |
DEFLECTOR, CR/SHF OIL |
N1 (LH8) |
2008-2009 |
01 |
| 426 |
12558760 |
GASKET, OIL PAN (PART OF 400) (CODE CNB WYA) |
N1 (LH8) |
2008-2008 |
01 |
| 427 |
11588712 |
БОЛТ, HFH, M6X1X20, 17.5 THD, 14.2 O.D., 8.8, GMW3359 (PART OF 400) |
|
2008-2010 |
04 |
| 428 |
12612728 |
BAFFLE, OIL PAN (PART OF 400) |
N1 (LH8) |
2008-2009 |
01 |
| 430 |
11562588 |
PLUG, OIL PAN DRN (INCLS 900) (PART OF 400) (W/ SEAL) (EXC MAGNET)
| N1 (LH8) |
2008-2009 |
01 |
|
| 433 |
12611384 |
GASKET, OIL PAN CVR (USE T/W 11588714 BOLT) (PART OF 400) |
N1 (LH8) |
2008-2009 |
01 |
| 434 |
12577903 |
COVER, OIL PAN (PART OF 400) |
N1 (LH8) |
2008-2009 |
01 |
| 435 |
11516480 |
БОЛТ, OIL PAN CVR (PART OF 400) (M6X1X25-10MM SOC) |
N1 (LH8) |
2008-2008 |
01 |
| 435 |
92064340 |
БОЛТ, OIL PAN CVR (PART OF 400) |
N1 (LH8) |
2008-2008 |
02 |
| 437 |
89017524 |
ФИЛЬТР, МАСЛЯНЫЙ (ACDelco #PF48)
| N1 (LH8) |
2008-2009 |
01 |
|
| 438 |
12552357 |
FITTING, OIL FLTR (PART OF 400) (13/16 X 16 UNC-M20X1.5 SAE 12L14) |
N1 (LH8) |
2008-2009 |
01 |
| 439 |
11515758 |
БОЛТ, HFH, M8X1.25X30, 28THD, 18 O.D., MACH PT, 10.9, 7114M (PART OF 400)
|
2008-2010 |
13 |
|
| 453 |
12554990 |
БОЛТ, OIL PAN (RR POSITIONS) (PART OF 400) (M6X1.0X136) |
N1 (LH8) |
2008-2009 |
02 |
| 900 |
|
SEAL, OIL PAN DRN PLUG (O RING) (PART OF 400, 430) |
|
2008-2009 |
|
| 901 |
12346004 |
SEALANT, LOCTITE PIPE-W/TEFLON 50CC TUBE (OIL PAN)
|
2008-2010 |
AR |
|
