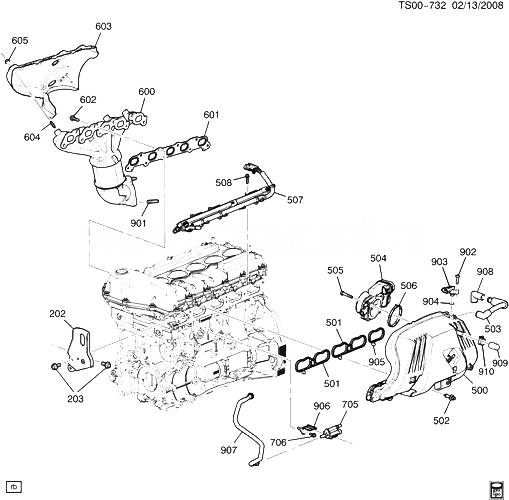

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 202 |
12568361 |
BRACKET, ENG LIFT FRT |
N1 (LLR) |
2008-2010 |
01 |
| 203 |
11518624 |
БОЛТ, ENG LIFT FRT BRKT (M10X1.5X30.4) (HFH, MATPOINT) (8.900) |
N1 (LLR) |
2008-2010 |
03 |
| 500 |
89060572 |
MANIFOLD, INT (SERV) (INCLS 503) |
N1 (LLR) |
2008-2010 |
01 |
| 501 |
|
GASKET, INT MANIF (*KIT1) |
|
2008-2010 |
|
| 502 |
11588352 |
БОЛТ, INT MANIF (W/SPCR) |
N1 (LLR) |
2008-2010 |
09 |
| 503 |
|
TUBE, PCV (PART OF 500) |
|
2008-2010 |
|
| 504 |
12616438 |
BODY, THROT (W/THROT ACTR) (ACDelco #217-3107)
| N1 (LLR) |
2008-2010 |
01 |
|
| 505 |
11588717 |
БОЛТ, THROT ACTR CONT MDL (M6X1.0X45.0) (2.383) |
N1 (LLR) |
2008-2010 |
04 |
| 506 |
12575463 |
GASKET, THROT BODY (ACDelco #217-1592)
| N1 (LLR) |
2008-2010 |
01 |
|
| 507 |
|
INJECTOR, M/PORT FUEL (W/FUEL RL) (SEE GROUP 03.000 FUEL INJECTION RAIL FOR DETAILED ILLUSTRATED VIEW) |
|
2008-2010 |
|
| 508 |
11562426 |
БОЛТ, HFH, M6X1X25, 18 THD, 14.2 OD, 10.9 STL GMW3359 (F/INJR) |
|
2008-2010 |
03 |
| 600 |
12607895 |
MANIFOLD, EXH (W/3WAY CTLTC CONV) (INCLS CONVERTER, PIPE, FLANGE, PLUG, STUDS) (INCLS 604, 901)
| N1 (LLR) |
2008-2008 |
01 |
|
| 601 |
12579684 |
GASKET, EXH MANIF
| N1 (LLR) |
2008-2010 |
01 |
|
| 602 |
11609481 |
BOLT-HFH, M8X1.25X33, 23.9 THD, 18 OD, 9.8, GMW3179W, ADH GM6194M (EXH MANIF)
|
2008-2010 |
09 |
|
| 603 |
12578647 |
SHIELD, EXH MANIF HT |
N1 (LLR) |
2008-2008 |
01 |
| 604 |
24577539 |
STUD, EXH MANIF H/SHLD (PART OF 600)
| N1 (LLR) |
2008-2010 |
04 |
|
| 605 |
11609411 |
ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (EXH MANIF H/SHLD)
|
2008-2010 |
03 |
|
| 705 |
12606684 |
VALVE, EVAP EMIS CNSTR PURGE SOL (ACDelco #214-2142)
| N1 (LLR) |
2008-2010 |
01 |
|
| 706 |
11570082 |
БОЛТ, HFH, M8X1.25X22, 19 THD, 18 OD, 10.9, GMW3359 (EVAP EMIS CNSTR) (ACDelco #11570082)
|
2008-2010 |
01 |
|
| 901 |
11589264 |
STUD, STRAIGHT, M10X1.5X30, M10X1.5X16, 57 TL, SS (PART OF 600)
|
2008-2010 |
04 |
|
| 902 |
11562253 |
БОЛТ, MAP SEN (M6 X 2.22 X 24) |
N1 |
2008-2010 |
01 |
| 903 |
12594942 |
ДАТЧИК, MAP (INCLS 904) (ACDelco #213-3949)
| N1 (LLR) |
2008-2010 |
01 |
|
| 904 |
|
SEAL, MAP SEN (PART OF 903) |
|
2008-2010 |
|
| 905 |
|
GASKET, INT MANIF (*KIT1) |
|
2008-2010 |
|
| 906 |
12579729 |
BRACKET, EVAP EMIS CNSTR PURGE SOL VLV |
N1 (LLR) |
2008-2010 |
01 |
| 907 |
12577221 |
TUBE, EVAP EMIS CNSTR PURGE |
N1 (LLR) |
2008-2010 |
01 |
| 908 |
12606629 |
CONNECTOR, PCV HOSE (FOR USE WITH 8MM OUTSIDE DIA PCV TUBE) |
N1 (LLR) |
2008-2010 |
01 |
| 909 |
12579781 |
CAP, INT MANIF VAC FTG (INCLS 910) |
N1 (LLR) |
2008-2010 |
01 |
| 910 |
15734741 |
CLAMP - SPRINGBAND. 20 NOMINAL DIA, 15 THK, GM6298M, GM6164M (PART OF 909) |
|
2008-2010 |
01 |
| K01 |
89017872 |
GASKET, INT MANIF (INCLS 501, 905)
| N1 (LLR) |
2008-2010 |
01 |
|
