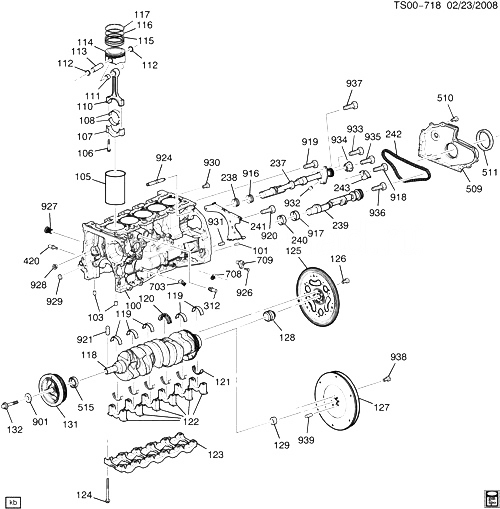

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 100 |
|
BLOCK, ENG |
|
2007-2010 |
|
| 101 |
03525915 |
PIN, CR/SHF RR OIL SEAL HSG LOC (DOWEL, 5.99X17.25, CHAM BOTH ENDS, 10.9) (0.206) |
N1 (LLR) |
2007-2010 |
02 |
| 103 |
|
PIN, CR/SHF BRG CAP LOC |
|
2007-2010 |
|
| 105 |
89060384 |
SLEEVE, CYL (0.030) |
N1 (LLR) |
2007-2010 |
05 |
| 106 |
12552947 |
БОЛТ, CONN ROD (PART OF 110) (MJ9X1.0-4H6HX61.9 LONG)
| N1 (LLR) |
2007-2010 |
10 |
|
| 107 |
|
CAP, CONN ROD (PART OF 110) |
|
2007-2010 |
|
| 108 |
89017791 |
BEARING KIT, CONN ROD
| N1 (LLR) |
2007-2010 |
05 |
|
| 110 |
12613195 |
ROD, CONN (MCHG W/ CAP) (INCLS 106, 107, 111) |
N1 (LLR) |
2007-2010 |
04 |
| 111 |
|
BUSHING, CONN ROD (PART OF 110) |
|
2007-2010 |
|
| 112 |
|
RETAINER, PSTN PIN (PART OF 114) |
|
2007-2010 |
|
| 113 |
|
PIN, PSTN (PART OF 114) |
|
2007-2010 |
|
| 114 |
89018218 |
PISTON KIT, ENG (INCLS PIN, RET) (STD) (INCLS 112, 113) |
N1 (LLR) |
2007-2010 |
01 |
| 115 |
|
RING, PSTN OIL (*KIT1) |
|
2007-2010 |
|
| 116 |
|
RING, PSTN CMPRN LWR (*KIT1) |
|
2007-2010 |
|
| 117 |
|
RING, PSTN CMPRN UPR (*KIT1) |
|
2007-2010 |
|
| 118 |
19177748 |
CRANKSHAFT, (NOTE:WHEN USED ON 2007 ; PRIOR MODEL YEAR THE 2008 FLEXPLATE BOLT MUST ALSO BE USED/ORDERED) (INCLS 921) |
N1 (LLR) |
2007-2010 |
01 |
| 119 |
89060394 |
BEARING KIT, CR/SHF (#1, 2, 3, 5, 6) (STD) (INCLS 121)
| N1 (LLR) |
2007-2009 |
05 |
|
| 120 |
89065022 |
BEARING KIT, CR/SHF (#4) (INCLS 121)
| N1 (LLR) |
2007-2009 |
01 |
|
| 121 |
|
BEARING, CR/SHF LWR (PART OF 119, 120) |
|
2007-2010 |
|
| 122 |
|
CAP, CR/SHF BRG |
|
2007-2010 |
|
| 123 |
12604849 |
STIFFENER, CR/SHF BRG CAP |
N1 (LLR) |
2007-2010 |
01 |
| 124 |
11570931 |
БОЛТ, CR/SHF BRG CAP (HFH, M10X1.5X140, 5X140, 52.5 THD, 22.5 OD, 10.9) |
N1 (LLR) |
2008-2010 |
12 |
| 124 |
11609429 |
БОЛТ, CR/SHF BRG CAP (HFH, M10X1.5X133.5, 48.5 THD, 22.6 OD, 8.8, GMW3179M) |
N1 (LLR) |
2007-2010 |
10 |
| 125 |
24100345 |
PLATE, A/TRNS FLEX |
N1 (LLR, M30) |
2007-2010 |
01 |
| 126 |
11570716 |
БОЛТ, A/TRNS FLEX PLT (M10X1X19.1, 15 THD) |
N1 (LLR, M30) |
2008-2010 |
08 |
| 127 |
19177876 |
FLYWHEEL, ENG (INCLS 938, 939) (BOLTS NOT INCLUDED) |
N1 (LLR, MA5) |
2007-2010 |
01 |
| 128 |
12587549 |
LOCATOR, A/TRNS FLEX PLT |
N1 (LLR) |
2007-2010 |
01 |
| 129 |
12557583 |
BEARING, CLU PILOT (22.7MM ID, 43.3MM OD, 13 THK) (ACDelco #CT1082) |
N1 (LLR, MA5) |
2007-2010 |
01 |
| 131 |
12578070 |
BALANCER, CR/SHF (INCLS 901) |
N1 (LLR) |
2007-2010 |
01 |
| 132 |
11609792 |
БОЛТ, CR/SHF BALR (HEX HEAD WASHER, M16X2) |
N1 (LLR) |
2007-2010 |
01 |
| 237 |
12616964 |
SHAFT, BAL (INCLS RETAINER, BOLT, PLUG, BEARING, SLEEVE, GEAR, SPROCKET, NUT) (INCLS 242, 243, 918, 932-935) |
N1 (LLR) |
2007-2010 |
01 |
| 238 |
12604129 |
BEARING, BALR SHF FRT (FRT-RH;PART HAS A MIDDLE GROOVE ; LAST 3 DIGITS OF P/N (129) STAMPED ON PART;MAY REPL BEARING WITH (376) ON PART) (LAST THREE DIGITS OF PART NUMBER STAMPED ON PART (376)BEARING HAS MIDDLE GROOVE) |
N1 (LLR) |
2007-2010 |
01 |
| 239 |
12578388 |
SHAFT, BAL (INCLS 936) |
N1 (LLR) |
2007-2010 |
01 |
| 240 |
12604128 |
BEARING, BALR SHF FRT (FRT-LH;SOLID PART W/O MIDDLE GROOVE ; LAST 3 DIGITS OF P/N (128) STAMPED ON PART;MAY REPL BEARING WITH (162) ON PART.) (LAST THREE DIGITS OF PART NUMBER STAMPED ON PART (162)SOLID PART AND HAS NO MIDDLE GROOVE) |
N1 (LLR) |
2007-2010 |
01 |
| 241 |
12588053 |
GUIDE, BALR CHAIN |
N1 (LLR) |
2007-2010 |
01 |
| 242 |
12595030 |
CHAIN, BAL (PART OF 237) |
N1 (LLR) |
2007-2010 |
01 |
| 243 |
12588100 |
TENSIONER, BAL CHAIN (PART OF 237) |
N1 (LLR) |
2007-2010 |
01 |
| 312 |
12567908 |
FITTING, HTR OTLT HOSE |
N1 |
2007-2010 |
01 |
| 420 |
12611588 |
SWITCH, ENG OIL PRESS (ACDelco #D1843A) |
N1 |
2007-2010 |
01 |
| 509 |
12579713 |
HOUSING, CR/SHF RR OIL SEAL (INCLS 510, 511) |
N1 (LLR) |
2007-2010 |
01 |
| 510 |
11517590 |
БОЛТ, HFH M6X1X25, 21.5 THD, 14.2 OD, 9.8, 7114M, MACH, HDR-PT (PART OF 509)
|
2007-2010 |
12 |
|
| 511 |
89018205 |
SEAL, CR/SHF RR OIL (PART OF 509)
| N1 (LLR) |
2007-2010 |
01 |
|
| 515 |
89017622 |
SEAL, CR/SHF FRT OIL (0.137)
| N1 (LLR) |
2007-2010 |
01 |
|
| 703 |
12570125 |
ДАТЧИК, KNOCK (ACDelco #213-1576) |
N1 (LLR) |
2007-2010 |
02 |
| 708 |
12570125 |
ДАТЧИК, KNOCK (ACDelco #213-1576) |
N1 (LLR) |
2007-2010 |
02 |
| 709 |
12592515 |
ДАТЧИК, CR/SHF POSN (58X) (ACDelco #213-4208) |
N1 (LLR) |
2008-2010 |
01 |
| 901 |
12578073 |
WASHER, CR/SHF BALR (WASHER HAS LIP ; USED ON BALANCER WITH STEP. FLAT, 33 ID, 45.5 OD, 5 THK, SAE1075) (PART OF 131)
| N1 (LLR) |
2007-2010 |
01 |
|
| 916 |
12604131 |
BEARING, BALR SHF CTR (CTR-RH; BEARING HAS MIDDLE GROOVE ; LAST 3 DIGITS OF P/N (131) STAMPED ON PART;MAY REPL BEARING WITH (375) ON PART.) |
N1 (LLR) |
2007-2010 |
01 |
| 917 |
12604130 |
BEARING, BALR SHF CTR (CTR-LH; SOLID PART W/O MIDDLE GROOVE ; LAST THREE DIGITS OF P/N (130) STAMPED ON PART;MAY REPL BEARING WITH (163) ON PART.) |
N1 (LLR) |
2007-2010 |
01 |
| 918 |
11609577 |
БОЛТ, BAL CHAIN TENSR (PART OF 237) (HFH, M6X1X55, 18 THD, 14.2 OD, 8.8, GMW3359, M POINT) |
N1 (LLR) |
2007-2010 |
02 |
| 919 |
11517518 |
БОЛТ, HFH, M6X1X20, 17.9 THD, 14.2 O.D., 9.8, TIN ZN (BAL SHF RR BRG) (ACDelco #11517518)
|
2007-2010 |
01 |
|
| 919 |
12345382 |
COMPOUND, ADHESIVE/SEALANT, THREAD, MED STRENGTH, (6ML) (BAL SHF RR BRG)
|
2007-2010 |
AR |
|
| 920 |
11517518 |
БОЛТ, HFH, M6X1X20, 17.9 THD, 14.2 O.D., 9.8, TIN ZN (BAL CHAIN GDE) (ACDelco #11517518)
|
2007-2010 |
03 |
|
| 920 |
12345382 |
COMPOUND, ADHESIVE/SEALANT, THREAD, MED STRENGTH, (6ML) (BAL CHAIN GDE)
|
2007-2010 |
AR |
|
| 921 |
|
PIN, CR/SHF SPKT LOC (PART OF 118) |
|
2007-2010 |
|
| 924 |
12564353 |
STUD, STRTR (UPR) (ACDelco #12564353) |
N1 |
2007-2010 |
01 |
| 926 |
11517518 |
БОЛТ, HFH, M6X1X20, 17.9 THD, 14.2 O.D., 9.8, TIN ZN (CR/SHF POSN SEN) (ACDelco #11517518)
|
2007-2010 |
03 |
|
| 926 |
12345382 |
COMPOUND, ADHESIVE/SEALANT, THREAD, MED STRENGTH, (6ML) (CR/SHF POSN SEN)
|
2007-2010 |
AR |
|
| 927 |
11561430 |
PLUG, ENG BLK OIL GAL (M16X1.5X23, 1010 STL, 3044GMW.W/AL WASHER, SEALANT) |
N1 (LLR) |
2007-2010 |
01 |
| 928 |
11588949 |
PLUG, M16X1.5X14, 24 OD, SAE 1010 STL, GMW3044, W/ AL WASHER (ENG BLK OIL GAL)
|
2007-2010 |
03 |
|
| 929 |
09427693 |
PLUG, CUP 5/8, CORROSION RESISTANT STL (ENG BLK OIL GAL) (1.531) |
|
2007-2010 |
01 |
| 930 |
11588442 |
PLUG, HEX, W/THD SEAL, M28X1.25X13, 10.9, GMW3044 (8.971) |
|
2007-2010 |
01 |
| 931 |
12569598 |
PIN, TRANS LOC |
N1 (LLR) |
2007-2010 |
02 |
| 932 |
11518383 |
SCREW, HEX, W/INT SOC, M5X0.8X6, 4.4 THD (PART OF 237) |
|
2007-2010 |
01 |
| 933 |
11609410 |
БОЛТ, HFH, M8X1.25X25, 10.9, GMW3179 (PART OF 237) (0.056)
|
2007-2010 |
01 |
|
| 934 |
12573346 |
NUT, BALR SHF DRVN SPKT (PART OF 237) |
N1 (LLR) |
2007-2010 |
01 |
| 935 |
11518385 |
БОЛТ, HEX HD, W/REDU BODY, M8X1.25X61, 18 THD, 9.8, 4435M (PART OF 237) |
|
2007-2010 |
01 |
| 936 |
11515756 |
БОЛТ, HFH, M8X1.25X20, 17THD, 18 O.D., 10.9, 7114M (PART OF 239)
|
2007-2010 |
01 |
|
| 937 |
11517518 |
БОЛТ, HFH, M6X1X20, 17.9 THD, 14.2 O.D., 9.8, TIN ZN (BAL SHF RR BRG RET) (ACDelco #11517518)
|
2007-2010 |
01 |
|
| 937 |
12345382 |
COMPOUND, ADHESIVE/SEALANT, THREAD, MED STRENGTH, (6ML) (BAL SHF RR BRG RET)
|
2007-2010 |
AR |
|
| 938 |
12568932 |
БОЛТ, FLYWHL (PART OF 127) (M10X1.0X23.7 MATL:STEEL (SAE 4037)) |
N1 (LLR, MA5, JJA) |
2007-2010 |
08 |
| 939 |
11503504 |
PIN, M6X16, STL, PLAIN (PART OF 127) |
|
2007-2010 |
03 |
| K01 |
89018219 |
RING KIT, PSTN (INCLS 115-117) |
N1 (LLR) |
2007-2010 |
05 |
