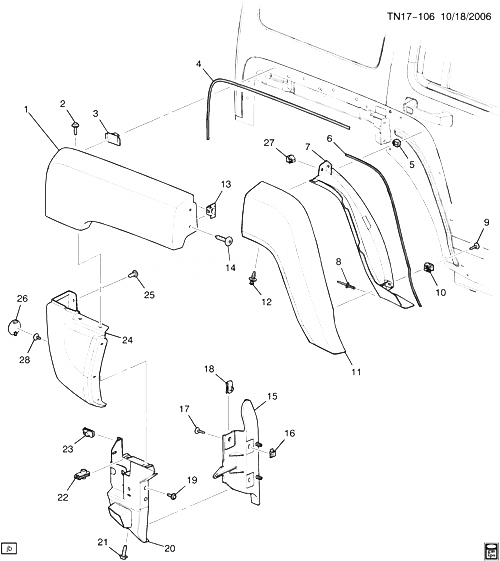

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15853276 |
FLARE, Q/PNL (INCLS 3, 4) (PAINT TO MATCH) (FLARE W/O SEAL ; RR BPR EXTENSION) |
N153 (06) |
2006-2010 |
01 |
| 002 |
11515303 |
БОЛТ, HEX W/WA, M4.2X1.4X18, NZ (RR BPR IMP BAR EXTN BRKT) |
|
2006-2010 |
04 |
| 003 |
11562147 |
RETAINER, QTR OTR PNL (QTY 4 RIGHT, 4 LEFT) (PART OF 1) (NATURAL) (7MM THK SEAL) (8.131)
| N153 (06) |
2006-2010 |
08 |
|
| 004 |
15814597 |
SEAL, BODY RR LWR PNL (PART OF 1) (CUT TO LENGTH) (8.131)
| N153 (06) |
2006-2010 |
04 |
|
| 005 |
11562333 |
RETAINER, RR WHL OPG FLARE (PART OF 11) (22 X 16.3 MM) (FITS 8.5X14MM SLOT) (17.507) |
N153 (06) |
2006-2010 |
08 |
| 006 |
15814597 |
SEAL, RR WHL OPG FLARE (CUT TO LENGTH) (8.131)
| N153 (06) |
2006-2010 |
02 |
|
| 007 |
15886279 |
BRACKET, RR WHL OPG FLARE |
N153 (06) |
2006-2010 |
01 |
| 008 |
11516807 |
RIVET, POP, 4.8 DIA, 19.9 LONG, 16 OD, 5-5.25 HOLE, 1-9 GRIP RANGE, AL, BLACK (PART OF 11)
|
2006-2010 |
02 |
|
| 009 |
11610068 |
БОЛТ, HEX WA, M4.2X1.41X30, 20.9 THD, 17 OD, GM6010M STL, GMW4205 (RR WHL OPG FLARE) |
|
2006-2010 |
04 |
| 010 |
11610157 |
NUT, PNL, M4.2X1.41, 8.5X11.9, 2.3-2.8 PNL, FITS 11.2X9.2 HOLE, 1050, GMW33 (PART OF 11) (10.701)
|
2006-2010 |
04 |
|
| 011 |
15823040 |
FLARE, RR WHL OPG (INCLS 5, 8, 10, 27) (PAINT TO MATCH) (FLARE W/O SEAL ; INNER BRACKET)
| N153 (06) (EXC B74) |
2007-2010 |
01 |
|
| 012 |
11609989 |
БОЛТ, HEX W/FLAT WASHER, M6X1X25, 15 THD, 17 OD, 6202M STL, GMW3200, TAPTITE
|
2006-2010 |
08 |
|
| 013 |
11518162 |
NUT-PANEL, M4.2X1.41, 15.9X8.4, .7-1.0 PNL, 1050, 7111M, 8.65 SQ HOLE (Q/PNL FLARE) |
|
2006-2010 |
04 |
| 014 |
11515007 |
SCREW, TORX, W/RD WA , M4.2X1.4X25, 11.1 OD, 6010M, NO (Q/PNL FLARE)
|
2006-2010 |
04 |
|
| 015 |
15853260 |
BRACKET, QTR OTR PNL EXTN (INCLS 18) |
N153 (06) |
2006-2010 |
01 |
| 016 |
11518162 |
NUT-PANEL, M4.2X1.41, 15.9X8.4, .7-1.0 PNL, 1050, 7111M, 8.65 SQ HOLE (QTR OTR PNL EXTN) |
|
2006-2010 |
04 |
| 017 |
11610068 |
БОЛТ, HEX WA, M4.2X1.41X30, 20.9 THD, 17 OD, GM6010M STL, GMW4205 (QTR OTR PNL EXTN) |
|
2006-2010 |
04 |
| 018 |
11518121 |
NUT, U, M6X1, MULTI THD, .5-4.0 THK PNL (PART OF 15) |
|
2006-2010 |
04 |
| 019 |
11609989 |
БОЛТ, HEX W/FLAT WASHER, M6X1X25, 15 THD, 17 OD, 6202M STL, GMW3200, TAPTITE (RR BPR IMP BAR EXTN)
|
2006-2010 |
04 |
|
| 020 |
|
BRACKET, БАМПЕР ЗАДНИЙ IMP BAR EXTN (PART OF 24) |
|
2007-2008 |
|
| 021 |
11609989 |
БОЛТ, HEX W/FLAT WASHER, M6X1X25, 15 THD, 17 OD, 6202M STL, GMW3200, TAPTITE (QTR OTR PNL)
|
2006-2010 |
06 |
|
| 022 |
|
NUT, БАМПЕР ЗАДНИЙ FASCIA BRKT (PART OF 24) |
|
2007-2008 |
|
| 023 |
11515638 |
ГАЙКА, U-TYPE, M4.2X1.41X10.5.5X22, .65-3.8 PNL THK, 1050, ZF (PART OF 24)
|
2006-2010 |
10 |
|
| 024 |
15887224 |
EXTENSION, БАМПЕР ЗАДНИЙ IMP BAR (INCLS 20, 22, 23, 25) (USE WITH ENDCAP 15828092)
| N1 (06) |
2006-2010 |
01 |
|
| 025 |
11508765 |
SCREW, TORX, W/ RD WA, M4.2X1.41X16, 11.1 O.D., STL, NIOR (PART OF 24) |
|
2006-2010 |
06 |
| 026 |
15828092 |
CAP, БАМПЕР ЗАДНИЙ FASCIA MLDG (REPL RH ; LH CAP) |
N153 (06) |
2006-2010 |
02 |
| 027 |
11610157 |
NUT, PNL, M4.2X1.41, 8.5X11.9, 2.3-2.8 PNL, FITS 11.2X9.2 HOLE, 1050, GMW33 (PART OF 11) (10.701)
|
2006-2010 |
04 |
|
| 028 |
11515864 |
SCREW ASM-FLAT WASHER ; METRIC HEX HEAD M (QTR OTR PNL) |
|
2006-2010 |
06 |
