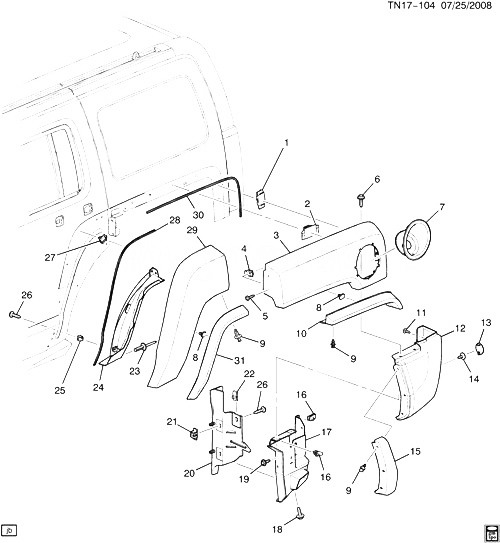

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
11569649 |
RETAINER, QTR OTR PNL (GRAY)
| N1 |
2007-2010 |
04 |
|
| 002 |
11562147 |
RETAINER, QTR OTR PNL (NATURAL) (7MM THK SEAL) (8.131)
| N1 (06) |
2007-2010 |
08 |
|
| 003 |
15849003 |
PANEL, QTR OTR (INCLS 30) (PAINT TO MATCH)
| N153 (06) (BNB, B74) |
2007-2010 |
01 |
|
| 004 |
11518162 |
NUT-PANEL, M4.2X1.41, 15.9X8.4, .7-1.0 PNL, 1050, 7111M, 8.65 SQ HOLE (Q/PNL FLARE) |
|
2007-2010 |
04 |
| 005 |
11515007 |
SCREW, TORX, W/RD WA , M4.2X1.4X25, 11.1 OD, 6010M, NO (Q/PNL FLARE)
|
2007-2010 |
04 |
|
| 006 |
11515303 |
БОЛТ, HEX W/WA, M4.2X1.4X18, NZ (PART OF 12) |
|
2007-2010 |
04 |
| 007 |
15794626 |
HOUSING, F/TNK FIL PIPE
| N153 (06) (EXC HH3) |
2007-2009 |
01 |
|
| 008 |
11561329 |
CLIP, RR WHL OPG MLDG (PART OF 10, 29, 31) (NATURAL) (20 X 14 X 15.8) (PLASTIC TREE) (7.831)
| N153 (06) (B74) |
2007-2009 |
06 |
|
| 009 |
11589294 |
RETAINER, RR WHL OPG FRT MLDG (BLACK) (M8.5 W/20.0MM HEAD) (8.133)
| N1 (06) (B74) |
2007-2007 |
08 |
|
| 010 |
15822887 |
MOLDING, RR WHL OPG CTR RR (INCLS 8) (GRAY)
| N153 (06) (B74) |
2007-2010 |
01 |
|
| 011 |
11508765 |
SCREW, TORX, W/ RD WA, M4.2X1.41X16, 11.1 O.D., STL, NIOR (PART OF 12) |
|
2007-2010 |
06 |
| 012 |
15849023 |
EXTENSION, БАМПЕР ЗАДНИЙ IMP BAR (INCLS 6, 11, 16, 17) |
N1 (06) (B74) |
2007-2010 |
01 |
| 013 |
15828092 |
CAP, БАМПЕР ЗАДНИЙ FASCIA MLDG (REPL RH ; LH CAP) |
N153 (06) |
2007-2010 |
02 |
| 014 |
11515864 |
SCREW ASM-FLAT WASHER ; METRIC HEX HEAD M (QTR OTR PNL) |
|
2007-2010 |
06 |
| 015 |
15822888 |
MOLDING, RR WHL OPG RR (GRAY)
| N153 (06) (B74) |
2007-2010 |
01 |
|
| 016 |
11515638 |
ГАЙКА, U-TYPE, M4.2X1.41X10.5.5X22, .65-3.8 PNL THK, 1050, ZF (PART OF 12)
|
2007-2010 |
03 |
|
| 017 |
|
BRACKET, БАМПЕР ЗАДНИЙ IMP BAR EXTN (PART OF 12) |
|
2007-2008 |
|
| 018 |
11609989 |
БОЛТ, HEX W/FLAT WASHER, M6X1X25, 15 THD, 17 OD, 6202M STL, GMW3200, TAPTITE (QTR OTR PNL)
|
2007-2010 |
06 |
|
| 019 |
11609989 |
БОЛТ, HEX W/FLAT WASHER, M6X1X25, 15 THD, 17 OD, 6202M STL, GMW3200, TAPTITE (RR BPR IMP BAR EXTN)
|
2007-2010 |
04 |
|
| 020 |
15853261 |
BRACKET, QTR OTR PNL EXTN (INCLS 22)
| N153 (06) |
2007-2010 |
01 |
|
| 021 |
11570654 |
NUT, QTR OTR PNL EXTN (4.2 X 1.41) (FITS 8.75 SQ HOLE) (9.665) |
N1 |
2007-2010 |
04 |
| 022 |
11518121 |
NUT, U, M6X1, MULTI THD, .5-4.0 THK PNL (PART OF 20) |
|
2007-2010 |
06 |
| 023 |
11516807 |
RIVET, POP, 4.8 DIA, 19.9 LONG, 16 OD, 5-5.25 HOLE, 1-9 GRIP RANGE, AL, BLACK (PART OF 29)
|
2007-2010 |
01 |
|
| 024 |
|
BRACKET, RR WHL OPG FLARE (PART OF 29) |
|
2007-2008 |
|
| 025 |
11610157 |
NUT, PNL, M4.2X1.41, 8.5X11.9, 2.3-2.8 PNL, FITS 11.2X9.2 HOLE, 1050, GMW33 (PART OF 29) (10.701)
|
2007-2010 |
04 |
|
| 026 |
11610068 |
БОЛТ, HEX WA, M4.2X1.41X30, 20.9 THD, 17 OD, GM6010M STL, GMW4205 (RR WHL OPG FLARE) |
|
2007-2010 |
04 |
| 027 |
11518988 |
CLIP, 20X19.8X2.5, ACETAL COPOLYMER (PART OF 29) (8.950) |
|
2007-2010 |
04 |
| 028 |
15814597 |
SEAL, RR WHL OPG FLARE (PART OF 29) (CUT TO LENGTH) (8.131)
| N153 (06) |
2007-2010 |
02 |
|
| 029 |
15912635 |
FLARE, RR WHL OPG (INCLS 8, 23-25, 27, 28) (ATTACHED TO RR DOOR LOWER) |
N153 (06) (B74) (EXPORT) |
2007-2010 |
01 |
| 030 |
15814597 |
SEAL, BODY RR LWR PNL (PART OF 3) (CUT TO LENGTH) (8.131)
| N153 (06) |
2007-2010 |
04 |
|
| 031 |
15822886 |
MOLDING, RR WHL OPG FRT (INCLS 8) (GRAY)
| N153 (06) (B74) |
2007-2010 |
01 |
|
