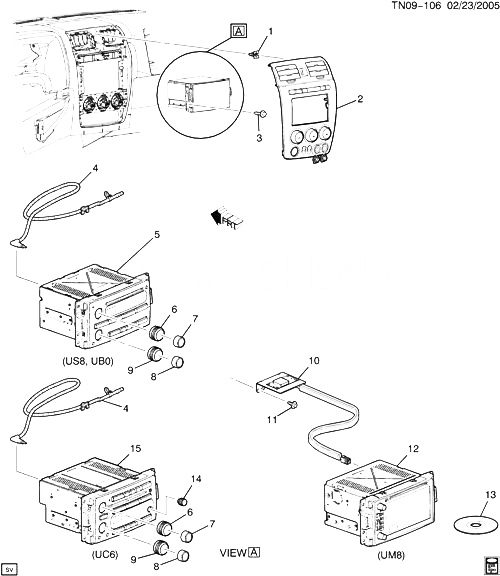

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
11588650 |
CLIP, 12X14X16.6, GM4345M (PART OF 2)
|
2006-2008 |
07 |
|
| 002 |
25811875 |
PLATE, I/P ACSRY TR (INCLS 1) (QUEST) (CENTER STACK ASM)
| N1 |
2006-2008 |
01 |
|
| 003 |
11589015 |
БОЛТ, HWH W/FL WA M4.2X1.41X20, 12.5 O.D., DOG PT, 6010M, 7253M (RDO)
|
2006-2008 |
04 |
|
| 004 |
15248842 |
CABLE, RDO ANT (ACDelco #15248842) |
N1 |
2006-2008 |
01 |
| 005 |
15852200 |
RADIO, AM/FM STEREO ; CD PLYR (INCLS 6-9) (ACDelco #15852200)
| N1 (UB0) |
2006-2008 |
01 |
|
| 005 |
15852201 |
RADIO, AM/FM STEREO ; AUDIO DISC PLYR ; MP3 PLYR (INCLS 6-9) (ACDelco #15852201) |
N153 (06) (US8) |
2006-2007 |
01 |
| 005 |
15950719 |
RADIO, AM/FM STEREO ; AUDIO DISC PLYR ; MP3 PLYR (INCLS 6-9) (ACDelco #15950719) |
N153 (06) (UL1, US8) (EXPORT) |
2007-2007 |
01 |
| 005 |
15950720 |
RADIO, AM/FM STEREO ; CD PLYR (INCLS 6-9) (ACDelco #15950720) |
N1 (UB0, UL1) (EXPORT) |
2007-2008 |
01 |
| 006 |
19115579 |
KNOB, RDO VOL CONT (PART OF 5, 15) |
N1 (US8) |
2006-2007 |
01 |
| 006 |
19115579 |
KNOB, RDO VOL CONT (PART OF 5, 15) |
N1 (UB0, UC6) |
2006-2008 |
01 |
| 007 |
19115577 |
PUSHBUTTON, RDO PWR (PART OF 5, 15) (9.652) |
N1 (US8) |
2006-2007 |
01 |
| 007 |
19115577 |
PUSHBUTTON, RDO PWR (PART OF 5, 15) (9.652) |
N1 (UB0, UC6) |
2006-2008 |
01 |
| 007 |
19115577 |
PUSHBUTTON, RDO PWR (PART OF 5, 15) |
N1 (US8) |
2006-2007 |
01 |
| 007 |
19115577 |
PUSHBUTTON, RDO PWR (PART OF 5, 15) |
N1 (UB0, UC6) |
2006-2008 |
01 |
| 008 |
19115578 |
PUSHBUTTON, RDO TUNE (PART OF 5, 15) (MUSICAL NOTE SYMBOL) |
N153 (06) (UB0, US8, UL1) |
2007-2007 |
01 |
| 008 |
19115581 |
PUSHBUTTON, RDO TUNE (PART OF 5, 15) |
N1 (UC6) |
2006-2008 |
01 |
| 009 |
19115579 |
KNOB, RDO TUNING CONT (PART OF 5, 15) |
N153 (06) (US8) |
2006-2007 |
01 |
| 009 |
19115579 |
KNOB, RDO TUNING CONT (PART OF 5, 15) |
N1 (UB0, UC6) |
2006-2008 |
01 |
| 010 |
10355766 |
MODULE, RDO ANT (ACDelco #10355766) |
N1 |
2006-2008 |
01 |
| 011 |
11609461 |
БОЛТ, HX W/FL WA, M4.2X1.41X16, 9 THD, 12.5 OD, 6010M STL, GMW4205, SELFTA (RDO)
|
2006-2008 |
02 |
|
| 012 |
25896525 |
RADIO, AM/FM STEREO ; AUDIO DISC PLYR ; NAVN (ACDelco #25896525) |
N153 (06) (UM8) (EXC UL8) |
2006-2008 |
01 |
| 012 |
25896526 |
RADIO, AM/FM STEREO ; AUDIO DISC PLYR ; NAVN (LABELED 25896526, 25847527 OR 25810342) (ACDelco #25896526) |
N153 (06) (BRM, UL8, UM8) (EXPORT) |
2006-2008 |
01 |
| 013 |
|
DISC, NAVN DATA (FOR SERVICE SEE GM PARTS PROCESS/POLICY BULLETIN FOR LATEST SERVICE INFORMATION) |
|
2006-2008 |
|
| 014 |
19115580 |
PUSHBUTTON, RDO DISPLAY (PART OF 15) (ACDelco #19115580) |
N1 (UC6) |
2006-2008 |
01 |
| 015 |
15923766 |
RADIO, AM/FM STEREO ; CLK ; CD PLYR (INCLS 6-9, 14) (ACDelco #15923766)
| N1 (UC6) (EXC UL1) |
2007-2008 |
01 |
|
| 015 |
15950721 |
RADIO, AM/FM STEREO ; CLK ; CD PLYR (INCLS 6-9, 14) (ACDelco #15950721) |
N1 (UC6, UL1) (EXPORT) |
2007-2008 |
01 |
